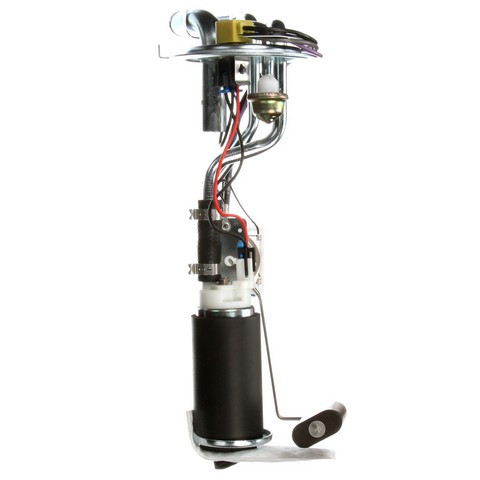

Delphi HP10020 fuel pump hanger for the 1985-1988 Chevrolet S10 Blazer 4-cylinder 2.5L, the 1986-1989 S10 Blazer V6 2.8L, the 1988-1991 S10 Blazer V6 4.3L and other vehicles holds the fuel pump in the tank. The float arm on this fuel pump hanger assembly reads the fuel level for the gauge.
- Designed to operate under extreme temperatures with quick engine starts

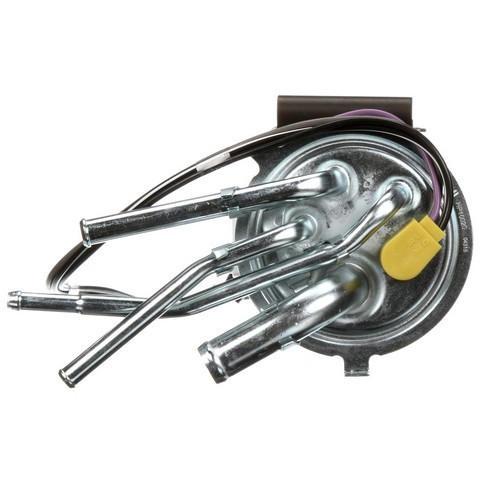

- Metal tubes routed so they never touch the tank, which removes noise and vibration while driving
- Float height when empty and float retention set for a correct gas gauge reading
- Lower amperage draw, so less load on the vehicle's electrical system
- Validated and tested for the vehicle application
Quick facts
- Part: Delphi HP10020 fuel pump hanger
- Also called: fuel pump hanger assembly
- Fits: 1985-1988 Chevrolet S10 Blazer 4-cylinder 2.5L, the 1986-1989 S10 Blazer V6 2.8L, the 1988-1991 S10 Blazer V6 4.3L and other vehicles
- Condition: New
Hard starting, a fuel gauge that reads wrong or a whine from the tank can mean the hanger or the pump on it is worn. Before you replace it, rule out a clogged fuel filter, a blown fuse and a failed relay, which can mimic those symptoms.
Fits
The same hanger fits the 1985-1988 GMC S15 Jimmy 4-cylinder 2.5L, the 1986-1989 S15 Jimmy V6 2.8L, the 1988-1991 S15 Jimmy V6 4.3L and the 1991 Oldsmobile Bravada V6 4.3L. Every car named on this page needs a single hanger.
Specifications
- Quantity per vehicle: 1
- Type: fuel pump hanger with float arm
- Condition: New
In the box
One fuel pump hanger with float arm, seal, lock ring and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing.
- The instruction sheet in the box gives the steps.
Interchange: 692-005
25093923 · 25093924 · 4011022 · 4017081 · E3632S · E3902 · DHP10020 · P77312S · A30186 · SP03B1H · USEP3632S
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
25093923, 25093924, 4011022, 4017081, E3632S, E3902, DHP10020, P77312S, 692-005, A30186, SP03B1H, USEP3632S
Frequently Asked Questions
Does the Delphi HP10020 fit the 1991 Oldsmobile Bravada V6 4.3L?
Yes. The Delphi HP10020 fuel pump hanger fits the 1991 Oldsmobile Bravada V6 4.3L, and that vehicle needs one hanger.
Does the HP10020 come with the float arm and lock ring?
Yes. The Delphi HP10020 comes with the float arm, a seal, a lock ring and an instruction sheet.
Will the float on this hanger give a correct fuel gauge reading?
Yes. This hanger's empty float height and float retention match OE specifications for a correct gas gauge reading.
How does this hanger keep tank noise and vibration down?
The metal tubes in this hanger are routed so they never contact the tank at any point, which removes noise and vibration while the vehicle runs.
Should I clean the tank before fitting this fuel pump hanger?
Yes. Check and clean the fuel tank first, and use the instruction sheet that comes with the hanger for the installation steps.
