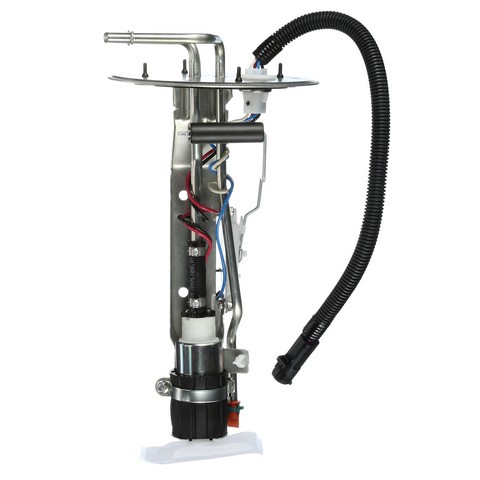

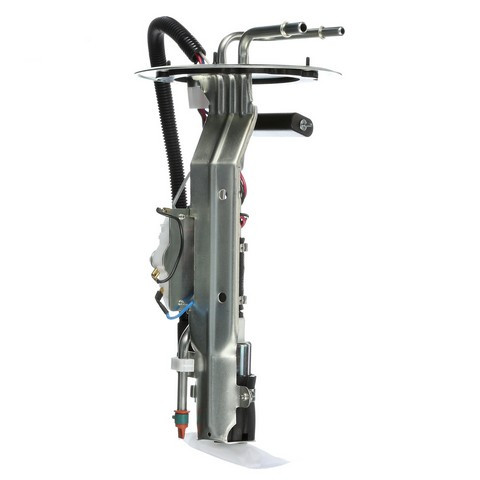

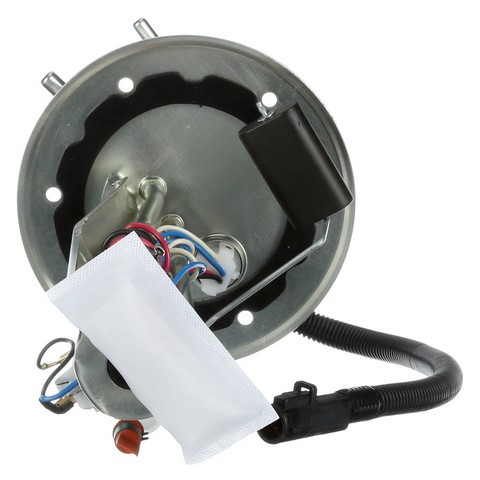

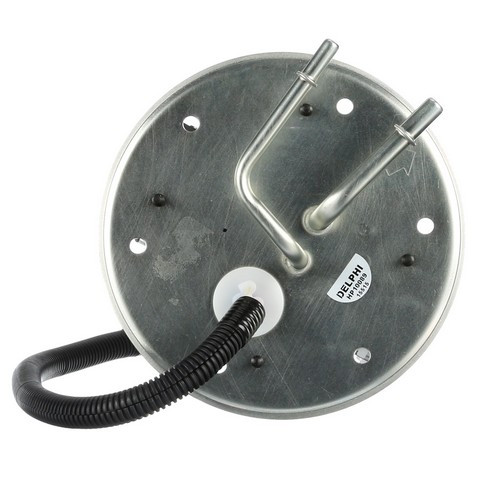

Delphi HP10089 fuel pump and sender assembly for the 1997-2003 Ford F-150 V6 4.2L, V8 4.6L or 5.4L and other vehicles moves fuel from the tank to the engine and reports the fuel level to the gauge. The Delphi fuel pump sits on a hanger with a float arm, and the part is also sold as a fuel pump hanger assembly.
- Pump designed to operate under extreme temperatures with quick engine starts
- Metal tubes routed so they never touch the tank, which removes noise and vibration during operation
- Empty float height and float retention are set for a correct gas gauge reading
- Validated, tested and matched to its vehicle application
- Lower amperage draw puts less load on the vehicle's electrical system
Quick facts
- Part: Delphi HP10089 fuel pump and sender assembly
- Fits: 1997-2003 Ford F-150 V6 4.2L, V8 4.6L or 5.4L and other vehicles
A weak pump or a faulty sender can show up as hard starting, stalling or a fuel gauge that reads wrong. A clogged fuel filter, a blown fuse or relay, or a dirty tank can be behind those signs too, so find the cause before you buy a new assembly.
Fits
This assembly fits the 1997-2003 Ford F-150 V6 4.2L, V8 4.6L or 5.4L, the 1997-1999 Ford F-250 V8 4.6L or 5.4L and the 2004 Ford F-150 Heritage V6 4.2L, V8 4.6L or 5.4L. The tank takes one assembly.
Specifications
- Quantity per vehicle: 1
- Float arm: included
In the box
One fuel pump and sender assembly with float arm, two retainer clips and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the assembly.
- An instruction sheet comes with the part for the installation steps.
Frequently Asked Questions
Is this the right fuel pump for the 1997-2003 Ford F-150 V6 4.2L, V8 4.6L or 5.4L?
Yes. Delphi HP10089 is listed for the 1997-2003 Ford F-150 with the V6 4.2L, V8 4.6L or 5.4L engine.
Does this fuel pump fit the 1997-1999 Ford F-250 V8 4.6L or 5.4L?
Yes. This assembly fits the 1997-1999 Ford F-250 with the V8 4.6L or 5.4L engine, one assembly per truck.
What is included with this Delphi fuel pump assembly?
The Delphi HP10089 package holds one fuel pump and sender assembly with float arm, two retainer clips and an instruction sheet.
How is the float set on this fuel pump and sender assembly?
Its empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading. The float arm is included.
Should I clean the tank before installing this Delphi Technologies fuel pump?
Yes. Check and clean the fuel tank before installing, and follow the instruction sheet that comes with the assembly.
