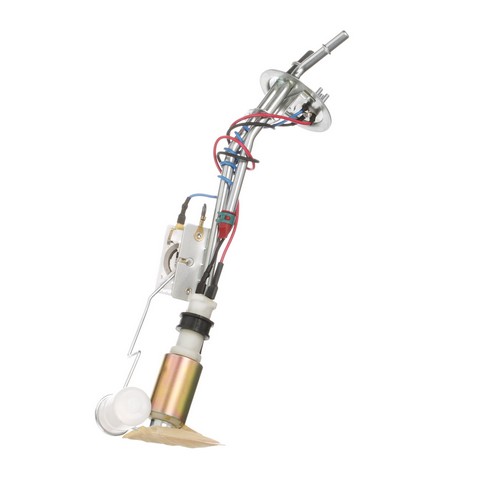

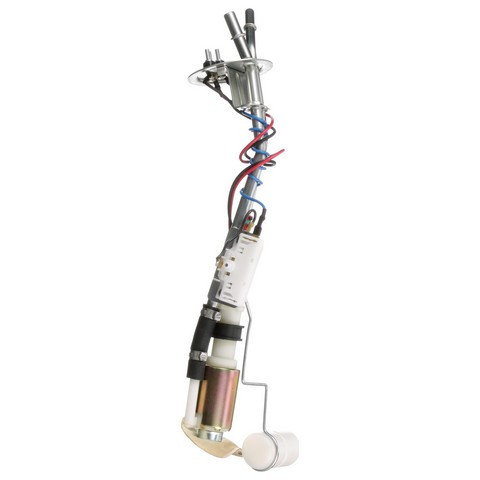

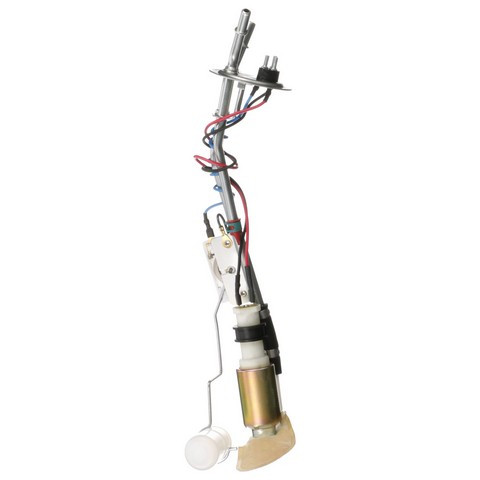

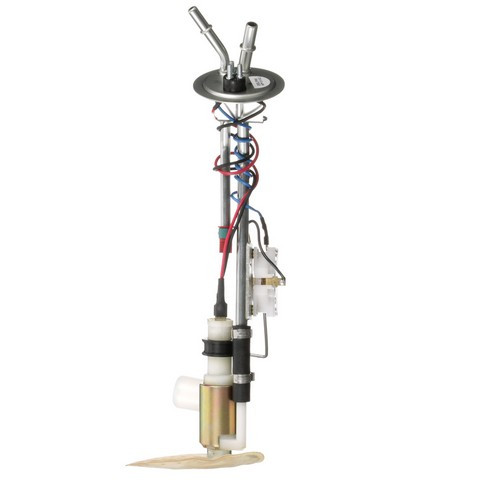

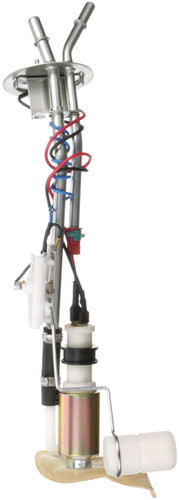

Delphi HP10182 fuel pump and sender assembly for the 1985-1986 Ford F-250 V8 7.5L and other vehicles pumps fuel from the tank to the engine. The assembly also carries the float arm that tells the gauge how much fuel is left.
- The Delphi pump is designed to work in extreme temperatures with quick engine starts
- Metal tubes are routed so they never touch the tank, which removes noise and vibration while driving
- Empty float height and float retention are set for a correct gas gauge reading
- Designed to bring back fast fuel pressure and system integrity while using less energy
- Lower amperage draw puts less load on the vehicle's electrical system
Quick facts
- Part: Delphi HP10182 fuel pump and sender assembly
- Fits: 1985-1986 Ford F-250 V8 7.5L and other vehicles
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can mean this fuel pump and sender assembly is worn. A clogged fuel filter or a faulty fuel pump relay can also be behind hard starting or stalling, so find the cause before you replace the assembly.
Fits
It fits the 1985-1986 Ford F-250 V8 7.5L and the 1985-1986 Ford F-350 V8 7.5L, and each takes one.
Specifications
Fit and size
- Engine: V8-7.5L
- Quantity per vehicle: 1
Build and materials
- Float arm: included
- Condition: New
In the box
One fuel pump and sender assembly with float arm, one seal, two retainer clips and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the assembly.
- The instruction sheet in the box covers the installation steps.
Interchange: E5TZ 9H307-E
4011024 · 4011166 · E2088S · E2091S · E2484 · DHP10182 · 69100 · P74538S · P74540S · C0015H · A30250 · E16045 · SP1152 · SP2487H · USEP2088S
This part cross-references / interchanges with the following part numbers:
4011024, 4011166, E2088S, E2091S, E2484, DHP10182, 69100, P74538S, P74540S, E5TZ 9H307-E, C0015H, A30250, E16045, SP1152, SP2487H, USEP2088S
Frequently Asked Questions
Is this a Ford F-250 fuel pump for the 1985-1986 V8 7.5L?
Yes. Delphi HP10182 fits the 1985-1986 Ford F-250 V8 7.5L, and that truck takes one assembly.
Does Delphi HP10182 work as a Ford F-350 fuel pump for the 1985-1986 V8 7.5L?
Yes. The 1985-1986 Ford F-350 V8 7.5L is on the fitment list for Delphi HP10182, and it takes one assembly.
What is included with this Delphi fuel pump assembly besides the pump?
The package has a float arm, a seal, two retainer clips and an instruction sheet.
Does the float on this Delphi fuel pump give a correct gas gauge reading?
Yes. The float on this assembly has an empty float height and float retention that match OE specifications, which is meant to give a correct gas gauge reading. The float arm comes with it.
Is there anything to do to the tank before installing this fuel pump and sender assembly?
Yes. Check and clean the fuel tank first, and follow the instruction sheet in the box for the steps.
