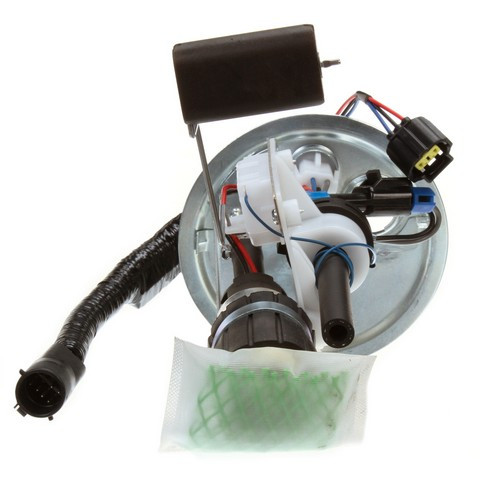

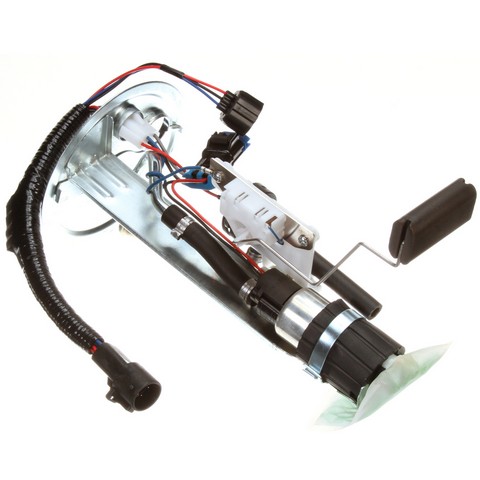

Delphi HP10217 fuel pump and sender assembly for the 2000-2001 Ford Ranger V6 3.0L pumps fuel from the tank and holds the float arm for the gauge. This Delphi fuel pump is also listed as a fuel pump hanger assembly.
- Pump designed for extreme temperatures and quick engine starts
- Metal tubes routed clear of the tank at every point to avoid noise and vibration
- Empty float height and float retention set to specification for correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested, then matched to the right vehicle application
Quick facts
- Part: Delphi HP10217 fuel pump and sender assembly
- Fits: 2000-2001 Ford Ranger V6 3.0L and 2004 Ford Ranger V6 3.0L
- Condition: New
A weak pump can show up as hard starting or sputtering, and a faulty sender can give an inaccurate fuel gauge. These signs alone do not prove the pump is at fault, since a clogged fuel filter is another common cause. If the pump or sender is the cause, this assembly replaces both.
Fits
It is a direct-fit fuel pump for the 2000-2001 and 2004 Ford Ranger V6 3.0L. This listing is one assembly, and the 2000-2001 and 2004 Ranger V6 3.0L each take one.
Specifications
Fit and size
- Engine: V6-3.0L
- Quantity per vehicle: 1
Build and materials
- Type: hanger assembly with float arm
- Condition: New
In the box

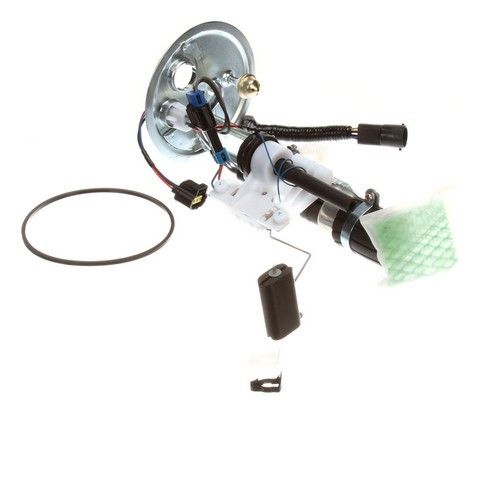

One fuel pump and sender assembly with float arm, one seal, two retainer clips and one instruction sheet.
Installation notes
- Check the fuel tank and clean it before installing the assembly.
- The instruction sheet in the box covers the installation steps.
Interchange: YL5Z 9H307-BA · YL5Z 9H307-BD · PFS-428
4011134 · E2258 · E2277S · DHP10217 · 69137 · P76291S · P76538 · RE0342S · A30268 · E16091 · SP1180 · SP2111H
This part cross-references / interchanges with the following part numbers:
4011134, E2258, E2277S, DHP10217, 69137, P76291S, P76538, RE0342S, YL5Z 9H307-BA, YL5Z 9H307-BD, PFS-428, A30268, E16091, SP1180, SP2111H
Frequently Asked Questions
Is this a 2000 Ford Ranger fuel pump replacement for the V6 3.0L?
Yes. Delphi HP10217 fits the 2000-2001 Ford Ranger V6 3.0L, and it fits the 2004 Ford Ranger V6 3.0L as well.
What comes with this Delphi fuel pump assembly?
Delphi HP10217 comes with the float arm, a seal, two retainer clips and an instruction sheet.
Is the float height on this assembly matched to specification?
Yes. On this fuel pump and sender assembly, the empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
Do I need to clean the tank before installing this fuel pump?
Yes. Check the fuel tank and clean it before installing the new pump; the instruction sheet in the box covers the installation steps.
How much load does this pump put on the electrical system?
This pump is built for a lower amperage draw, so it puts less load on the vehicle's electrical system. It is also designed to run in extreme temperatures with quick engine starts.
