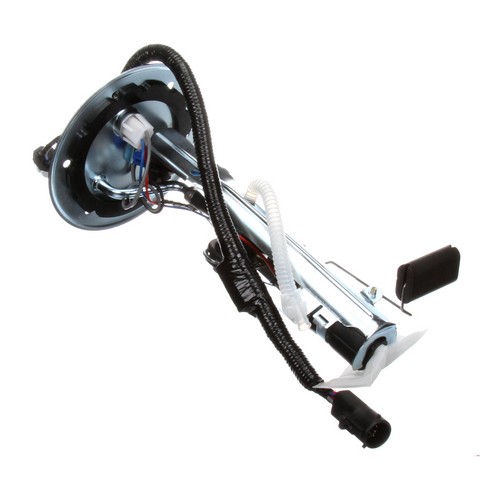

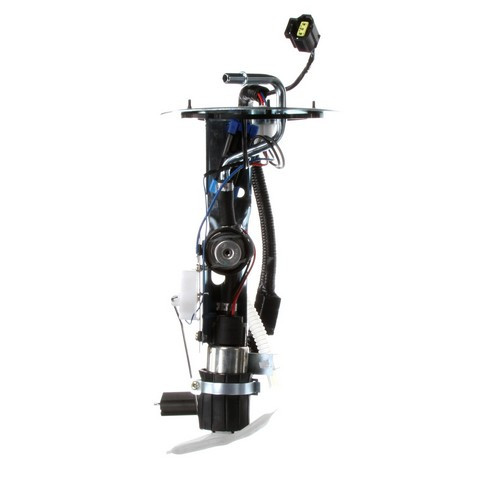

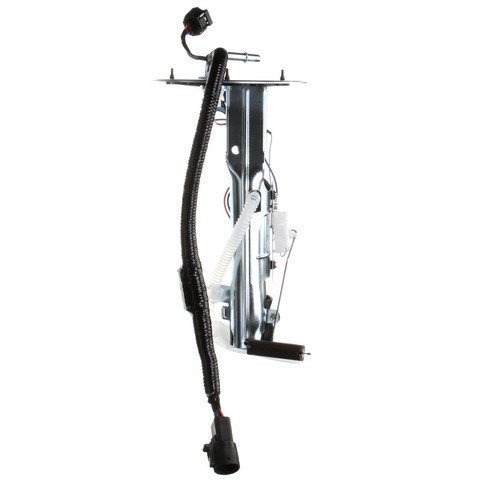

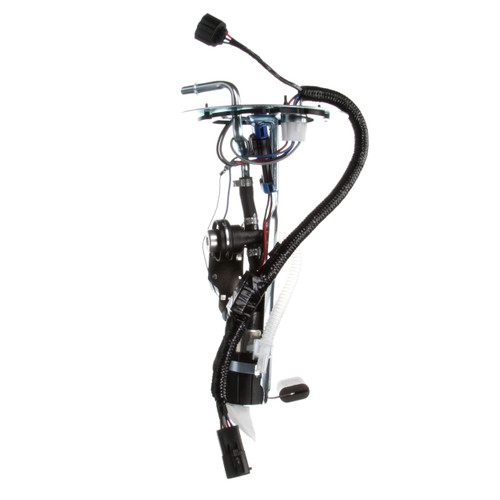

Delphi HP10138 fuel pump and sender assembly for the 2000-2001 Ford Explorer V6 4.0L moves fuel from the tank to the engine. The Delphi fuel pump sits on a hanger with a float arm that reads the fuel level for the gauge.
- Pump designed to operate under extreme temperatures with quick engine starts
- Metal tubes routed to avoid contact with the tank at any point, which removes noise and vibration during operation
- Empty float height and float retention set for correct gas gauge readings
- Lower amperage draw puts less load on the vehicle's electrical system
- Part is validated and tested
Quick facts
- Part: Delphi HP10138 fuel pump and sender assembly
- Fits: 2000-2001 Ford Explorer V6 4.0L
- Condition: New
Hard starting, stalling or a fuel gauge that reads wrong can mean this assembly is worn, though a clogged fuel filter or a faulty fuel pump relay can be behind the same signs, so find the cause before you replace it.
Fits
This assembly is a direct-fit replacement for the 2000-2001 Ford Explorer V6 4.0L, with one assembly per vehicle. This listing is a single assembly.
Specifications
- Type: fuel pump and sender assembly with float arm
- Quantity per vehicle: 1
- Condition: New
In the box

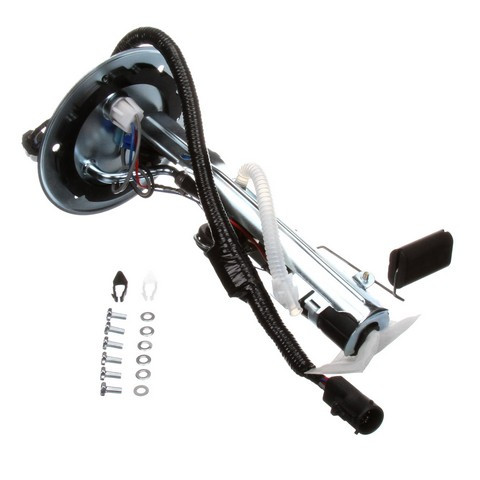

One fuel pump and sender assembly with float arm, six bolts, six washers, two retainer clips and an instruction sheet.
Installation notes
- Follow the instruction sheet for the installation steps.
- Check and clean the fuel tank before installing the assembly.
Interchange: 1L2Z 9H307-A · 1L2Z 9H307-B · PFS-459 · PFS-978
4011227 · E2302S · E2471 · DHP10138 · 67168 · P76156S · C0088H · P2646S · A30065 · SP2296H · SP2394H · USEP2302S
This part cross-references / interchanges with the following part numbers:
4011227, E2302S, E2471, DHP10138, 67168, P76156S, 1L2Z 9H307-A, 1L2Z 9H307-B, PFS-459, PFS-978, C0088H, P2646S, A30065, SP2296H, SP2394H, USEP2302S
Frequently Asked Questions
Is this the Ford Explorer fuel pump for 2000-2001 models with the V6 4.0L?
Yes. Delphi HP10138 is listed for the 2000-2001 Ford Explorer V6 4.0L, one per vehicle.
What comes with this Delphi fuel pump assembly besides the pump?
Delphi HP10138 comes with a float arm, six bolts, six washers, two retainer clips and an instruction sheet.
Is the float height on this fuel pump and sender assembly set to OE specifications?
Yes. Empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
Do the metal tubes on this fuel pump and sender assembly touch the tank?
No. The metal tubes are routed so they do not contact the tank at any point, which eliminates noise and vibration during vehicle operation.
Should I clean the tank before installing this Delphi Technologies fuel pump?
Yes. Check and clean the fuel tank first, and use the instruction sheet that comes with the assembly for the installation steps.
