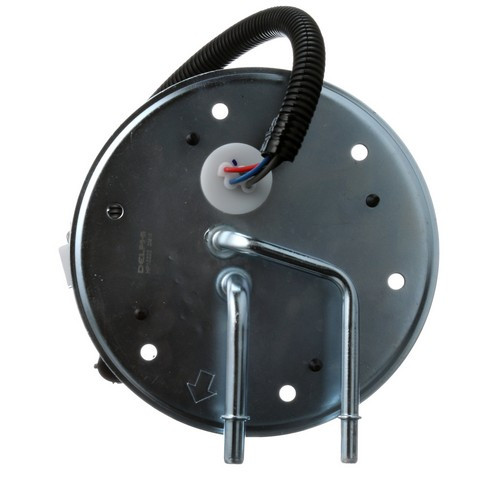

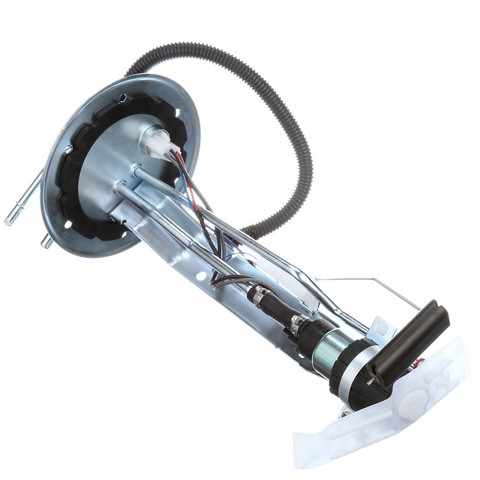

Delphi HP10222 fuel pump and sender assembly for the 1997-1998 Ford F-150 V6 4.2L, V8 4.6L or 5.4L holds the pump in the tank, sends fuel to the engine and reports fuel level to the gauge. This Delphi fuel pump is built to Delphi's OE standards.
- Designed to operate under extreme temperatures with quick engine starts
- Metal tubes routed so they never touch the tank, which removes noise and vibration during operation
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the electrical system
- Validated and tested for the vehicle application
Quick facts
- Part: Delphi HP10222 fuel pump and sender assembly
- Fits: 1997-1998 Ford F-150 V6 4.2L, V8 4.6L or 5.4L
- Condition: New
A hard start, stalling or a fuel gauge that reads wrong can point to a worn pump or sender. A clogged fuel filter, a bad fuel pump relay or a wiring fault can also be behind those signs, so find the cause before you buy.
Fits
It fits the 1997-1998 Ford F-150 with the V6 4.2L, V8 4.6L or 5.4L engine, and the truck takes one assembly, mounted in the fuel tank.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Float arm: included
In the box

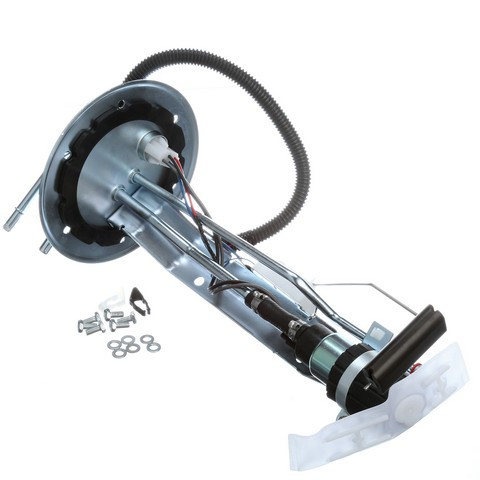

One fuel pump and sender assembly with float arm, six bolts, six washers, two retainer clips and an instruction sheet.
Installation notes
- Check and clean the fuel tank during installation.
- An instruction sheet comes with the assembly.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does this fuel pump for the 1997-1998 Ford F-150 fit the V8 5.4L?
Yes. The Delphi HP10222 fits the 1997-1998 Ford F-150 with the V6 4.2L, V8 4.6L or 5.4L engine.
What comes with the Delphi fuel pump assembly HP10222?
The Delphi HP10222 comes with the float arm, six bolts, six washers, two retainer clips and an instruction sheet.
Is this Delphi Technologies fuel pump built for extreme temperatures?
Yes. The Delphi HP10222 pump is designed to operate under extreme temperatures with quick engine starts.
Can the sender in a Delphi fuel pump and sender assembly cause a wrong gauge reading?
Yes, it can. If the sender or float is the cause, this assembly replaces it, and a shop can test the fuel system to find out.
Does this fuel pump and sender assembly need anything done to the tank first?
Check and clean the fuel tank when you install it. An instruction sheet comes in the box for the steps.
