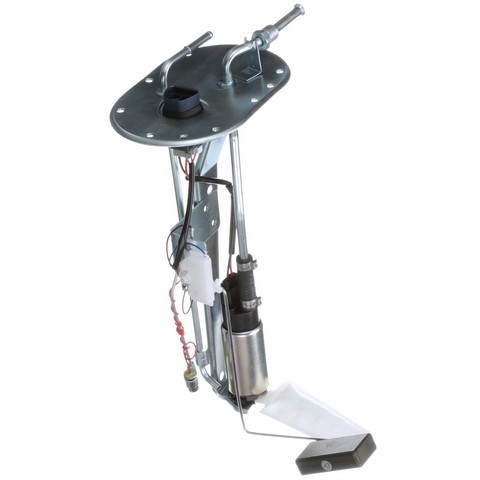

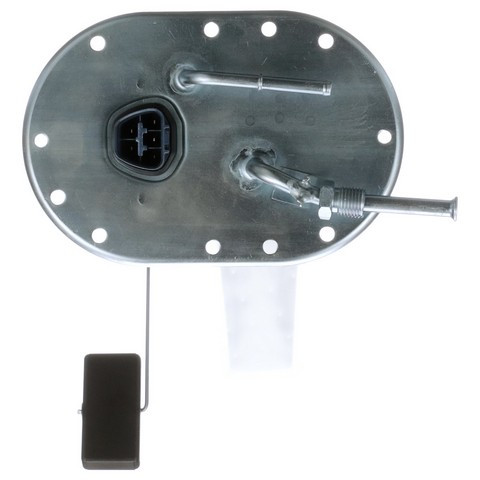

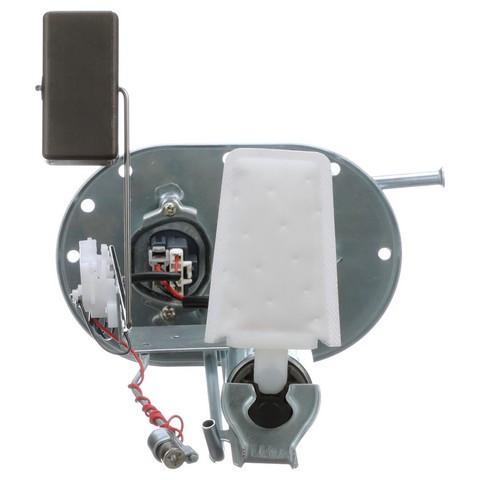

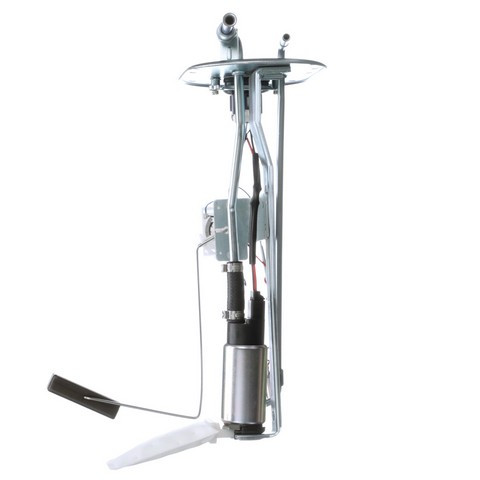

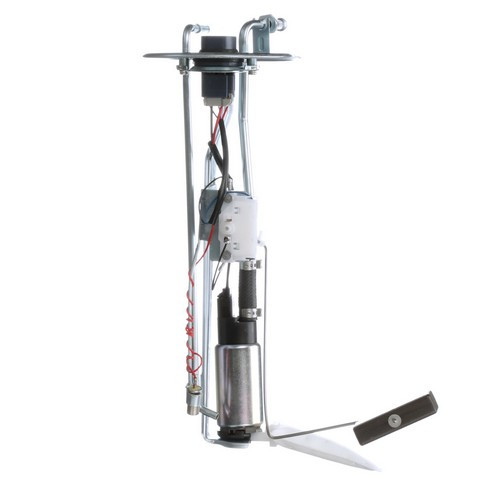

Delphi HP10264 fuel pump hanger for the 2000 Toyota Tacoma 4-cylinder 2.7L or V6 3.4L holds the electric fuel pump and float arm inside the tank. It sends fuel to the engine and reports the tank level to the gas gauge.
- Electric pump designed to operate under extreme temperatures with quick engine starts
- Metal tubes routed so they never touch the tank, which removes noise and vibration while driving
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the electrical system
- Validated and tested against its vehicle application
Quick facts
- Part: Delphi HP10264 fuel pump hanger
- Also called: fuel pump hanger assembly
- Fits: 2000 Toyota Tacoma 4-cylinder 2.7L or V6 3.4L
- Condition: New
A hanger that is wearing out can show up as hard starting, stalling or a gas gauge that reads wrong. If the hanger is the cause, this assembly replaces the pump and float arm together. A blown fuse or a fault elsewhere in the fuel system can also produce those symptoms, so with the engine off, look at the fuel pump fuse for damage and leave fuel pressure testing to a shop.
Fits
This is a direct-fit replacement for the 2000 Toyota Tacoma 4-cylinder 2.7L or V6 3.4L, and either engine takes one hanger.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outlet fitting thread size: M14 - 1.5
- Inlet quantity: 1
- Outlet quantity: 2
- Terminals: 5, male, blade type

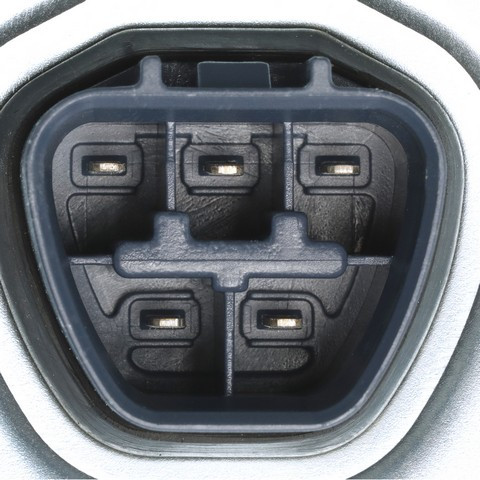

- Connector: female, trapezoid shape
Build and materials
- Type: in-tank electric fuel pump hanger, fuel pump included
- Fuel type: gas
- Inlet: external strainer included
- Outlet type: threaded
- Condition: New
- Country of origin: China
In the box

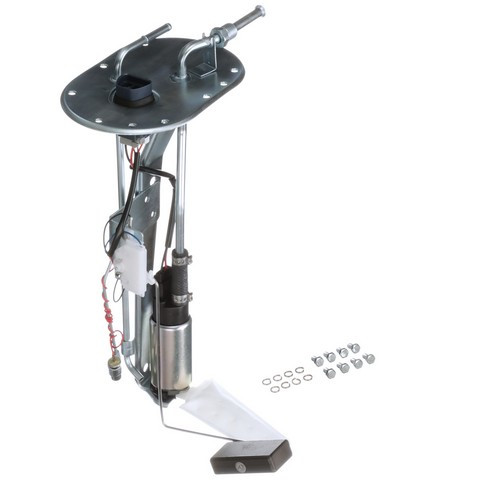

One fuel pump hanger with float arm, bolts and washers, a seal and an instruction sheet. A lock ring is not included.
Installation notes
- An instruction sheet comes with the part for the installation steps.
- Check and clean the fuel tank before installing the hanger.
Interchange: 83320-80308
4011309 · 4017370 · DHP10264 · P77259S · P77260S · A46614 · FG204B · SP9002H
This part cross-references / interchanges with the following part numbers:
4011309, 4017370, DHP10264, P77259S, P77260S, A46614, FG204B, SP9002H, 83320-80308
Frequently Asked Questions
Is the Delphi HP10264 fuel pump hanger right for the 2000 Toyota Tacoma 4-cylinder 2.7L or V6 3.4L?
Yes. Delphi HP10264 is a specific-fit hanger for the 2000 Toyota Tacoma 4-cylinder 2.7L or V6 3.4L, and either engine takes one.
Does the Delphi HP10264 fuel pump hanger assembly come with the fuel pump and float arm?
Yes. Delphi HP10264 comes with the pump, float arm, bolts and washers, a seal and an instruction sheet. A lock ring is not included.
What thread size is the outlet fitting on this fuel pump hanger?
The outlet fitting thread is M14 - 1.5. The hanger has one inlet with an external strainer and two threaded outlets.
Can a failing fuel pump hanger make the gas gauge read wrong?
Yes, a worn float arm can give a wrong gauge reading, and a weak pump can show up as hard starting or stalling. A shop can test fuel pressure to find out.
Does the Delphi HP10264 replace the 83320-80308 hanger?
Yes. 83320-80308 is one of the numbers this Delphi HP10264 fuel pump hanger replaces. The other cross-reference numbers are on the Interchange line.
