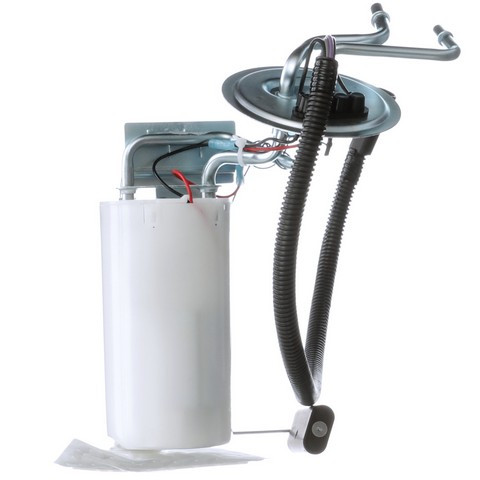

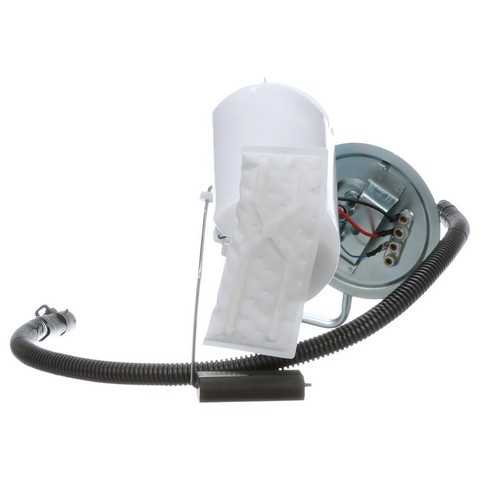

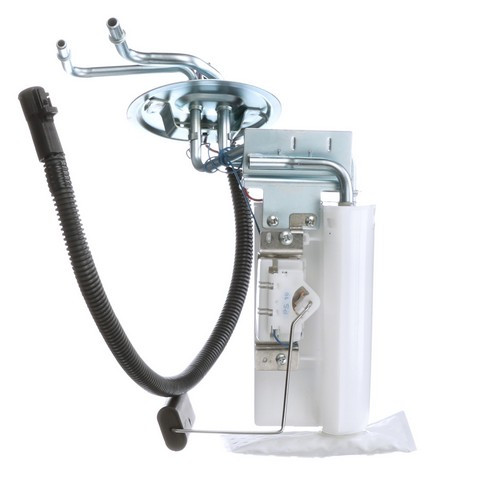

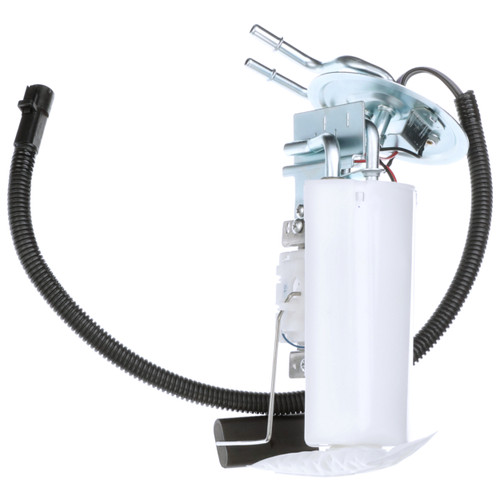

Delphi HP10265 fuel pump hanger for the 1992-1996 Ford F-150 6-cylinder 4.9L, V8 5.0L or 5.8L and other vehicles holds the fuel pump and float arm in position inside the fuel tank.
- Designed to operate under extreme temperatures with quick engine starts
- Metal tubes routed so they never contact the tank, which removes noise and vibration during operation
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw, which puts less load on the vehicle's electrical system
- Validated and tested, then matched to the right vehicle application
Quick facts
- Part: Delphi HP10265 fuel pump hanger
- Also called: fuel pump hanger assembly
- Fits: 1992-1996 Ford F-150 6-cylinder 4.9L, V8 5.0L or 5.8L and other vehicles
- Condition: New
If the hanger is the cause of a gauge that reads wrong or an engine that is slow to start, this part replaces it. Wiring and fuel delivery can affect those signs too, so with the ignition off, look over the connector and fuses for damage first. Fuel pressure testing is a job for a shop.
Fits
The vehicles it fits include the 1992-1996 Ford F-250 6-cylinder 4.9L, V8 5.0L, 5.8L or 7.5L and the 1992-1996 Ford F-350 6-cylinder 4.9L, along with the 1992-1997 F-350 V8 5.8L or 7.5L. Each truck gets one hanger in its tank. If your truck is not named here, open the "Vehicles it fits" section and check its exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engines: L6-4.9L, V8-5.0L, V8-5.8L, V8-7.5L
Build and materials
- Type: fuel pump hanger with float arm
- Condition: New
In the box

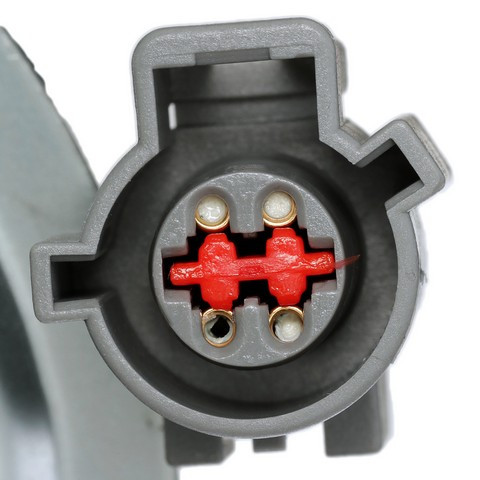

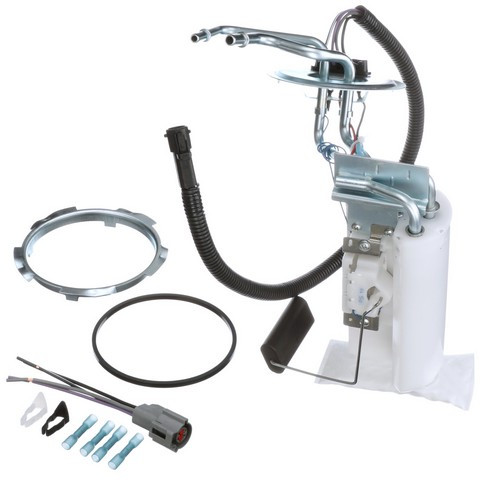

One fuel pump hanger with float arm, jumper harness, lock ring, retainers, seal, splices and an instruction sheet.
Installation notes
- An instruction sheet comes with the part for the steps.
- Check and clean the fuel tank before installing.
Interchange: 953-3004 · F6TZ 9A407-AA · F6TZ 9A407-AB · PFB-1
4011014 · 4017204 · E2059MN · CHP10265 · 67000 · P74107 · P77253S · RE0022P · A46086 · FG144A · SP154 · SP2005H
This part cross-references / interchanges with the following part numbers:
4011014, 4017204, E2059MN, CHP10265, 67000, P74107, P77253S, 953-3004, RE0022P, F6TZ 9A407-AA, F6TZ 9A407-AB, PFB-1, A46086, FG144A, SP154, SP2005H
Frequently Asked Questions
Will the Delphi HP10265 fit a 1992-1996 Ford F-250 with the V8 5.0L?
Yes. The Delphi HP10265 fuel pump hanger is listed for the 1992-1996 Ford F-250 with the 6-cylinder 4.9L, V8 5.0L, 5.8L or 7.5L engine.
What comes with this fuel pump hanger assembly?
The Delphi HP10265 includes the float arm, jumper harness, lock ring, retainers, seal, splices and an instruction sheet.
Will the metal tubes on this Delphi fuel pump hanger rattle against the tank?
No. The metal tubes are routed so they do not touch the tank at any point, which removes noise and vibration while the vehicle is running.
Does the Delphi HP10265 replace Ford part number F6TZ 9A407-AA?
Yes. F6TZ 9A407-AA is one of the interchange numbers listed for this Delphi HP10265 fuel pump hanger.
Does the tank need any prep before installing this fuel pump hanger?
Yes. Inspect the tank and clean it before the new hanger goes in, and use the instruction sheet in the box for the steps.
