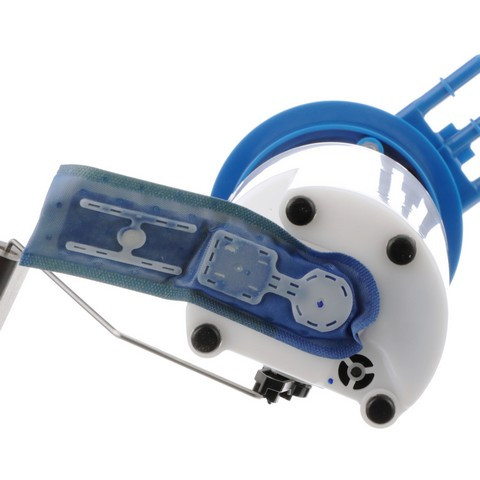

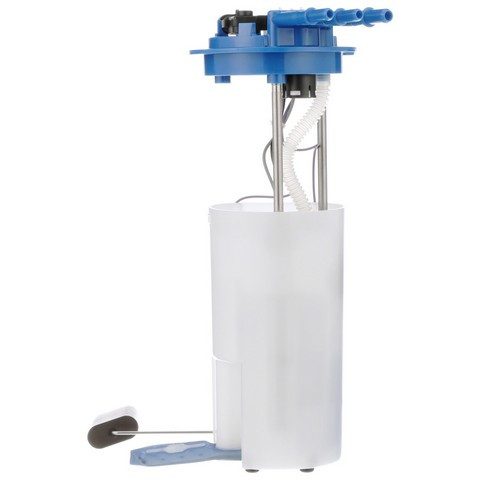

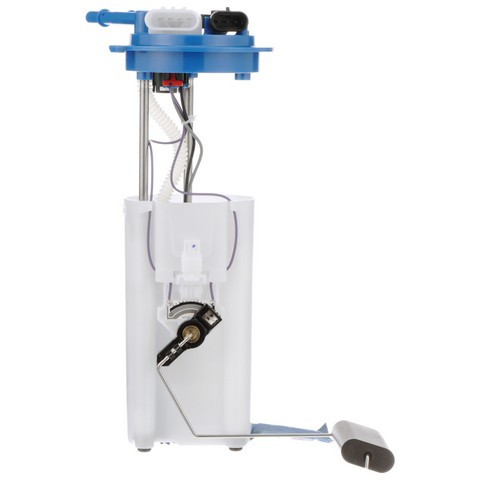

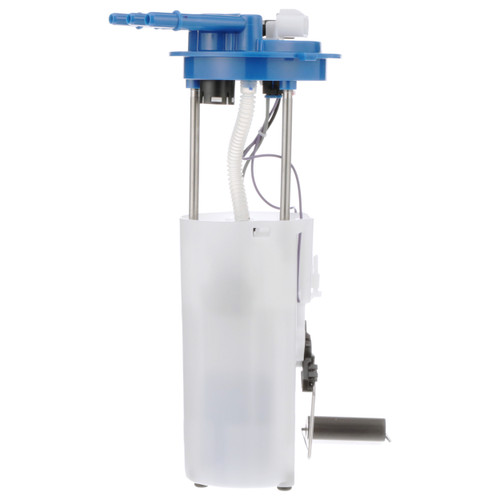

Keep fuel moving from the tank to the engine with the Delphi fuel pump module assembly FG0287, an in-tank electric unit that drops in as a direct-fit replacement for the 1998-2005 Chevrolet Blazer, 1998-2004 GMC Jimmy, and 1998-2001 Oldsmobile Bravada (all V6-4.3L). Delphi has been a Tier 1 fuel-delivery supplier for over 80 years, and this Premium-grade module is built to Delphi's OE standards, then validated, tested, and matched to the right vehicle application.
- Integrated float arm and sender: empty float height and float retention match OE specifications for accurate fuel gauge readings.

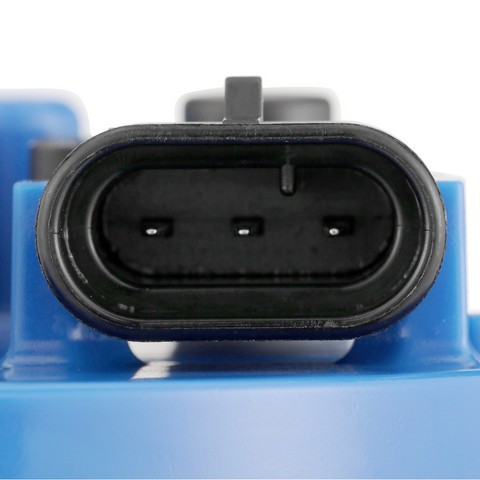

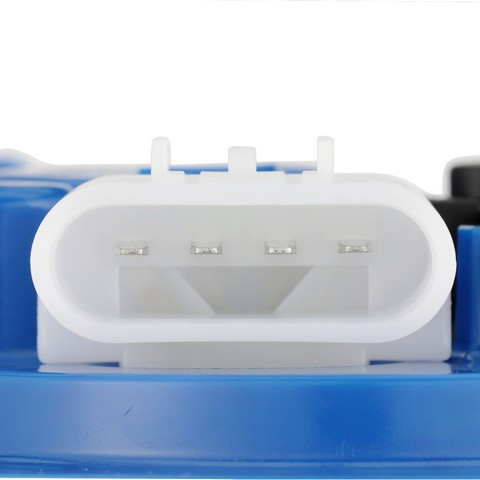

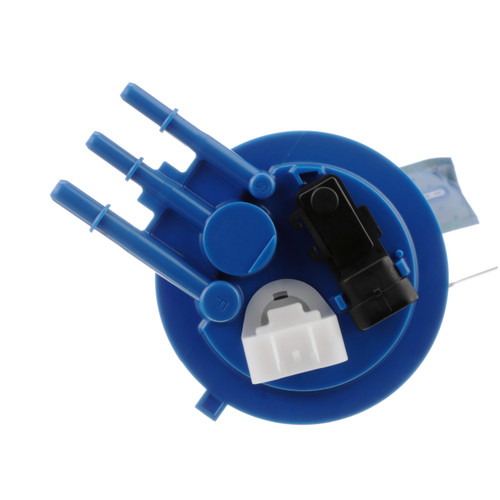

- Plastic housing, electric pump: a single oval female connector, a 4-blade male terminal, and three quick-connect outlets handle gas delivery; its lower amperage draws less load on the vehicle's electrical system.
- External strainer and seal included to help keep debris out of the pump inlet.
The package contains the fuel pump module with float arm, seal, splice kit, and instruction sheet. Mounting hardware, a fuel pressure regulator, and a lock ring are not included. Delphi advises checking and cleaning the fuel tank before installing this fuel pump assembly to avoid unnecessary returns. Country of origin: Thailand.
Interchange: 953-5125 · 402-P3992M
9535125 · 402P3992M · MU1100 · MU1733 · MU1763 · TS102 · E3992M · DFG0287 · F2903A · 67378 · 67555 · M212887 · P74834M · P74837M · P76180M · AFS0481S · RE0481S · 19179591 · 19331274 · 19369951 · 25314928 · 25347147 · A30026 · SP6085M · C5341006 · USEP3992M
This part cross-references / interchanges with the following part numbers:
MU1100, MU1733, MU1763, TS102, E3992M, DFG0287, F2903A, 67378, 67555, M212887, P74834M, P74837M, P76180M, 953-5125, AFS0481S, RE0481S, 19179591, 19331274, 19369951, 25314928, 25347147, 402-P3992M, A30026, SP6085M, 150019-A, C5341006, USEP3992M
Frequently Asked Questions
What vehicles does the Delphi fuel pump module FG0287 fit?
It's a direct-fit replacement for the 1998-2005 Chevrolet Blazer, 1998-2004 GMC Jimmy, and 1998-2001 Oldsmobile Bravada, all with the V6-4.3L engine. See the "Vehicles it fits" section to confirm your vehicle.
What's included in the box?
The fuel pump module assembly with float arm, a seal, a splice kit, and an instruction sheet. An external strainer is included as well.
Does it come with mounting hardware, a lock ring, or a fuel pressure regulator?
No. Mounting hardware, a lock ring, and a fuel pressure regulator are not included; consult the vehicle service information for the correct parts for your application.
What are signs this fuel pump module may need replacing?
Hard starting, engine sputtering or stalling under load, a whining noise from the fuel tank, or a no-start can be signs. Diagnose the cause before replacing, since these symptoms have other possible sources.
Where is this Delphi fuel module made?
Country of origin: Thailand. It's a Premium-grade module built to Delphi's OE standards and matched to the listed vehicle applications.
