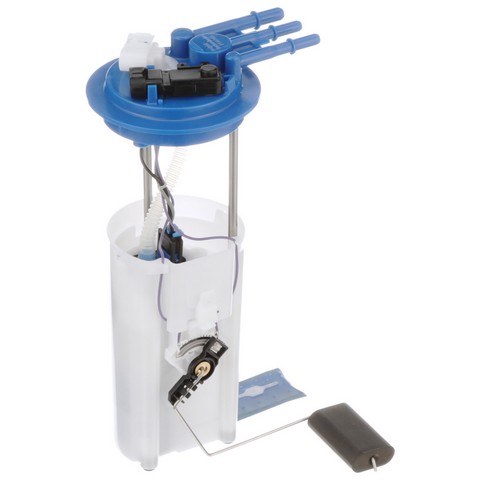

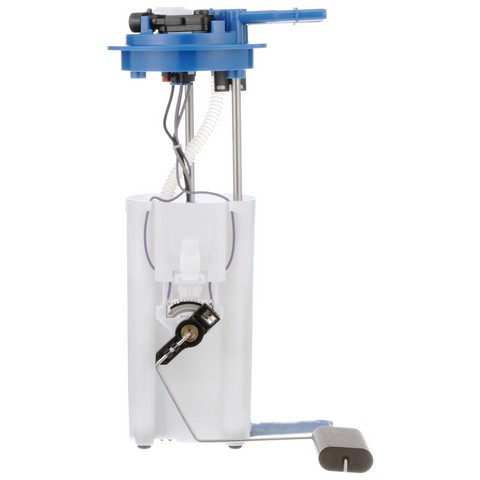

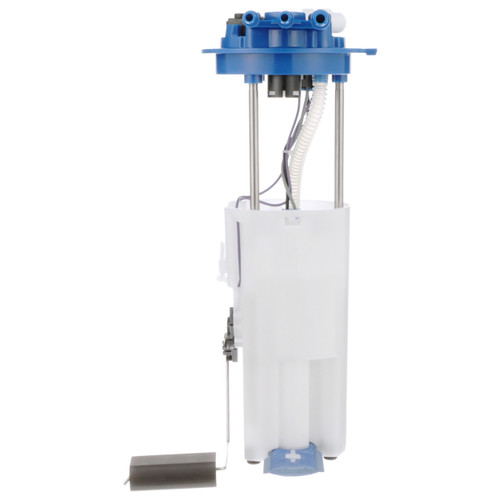

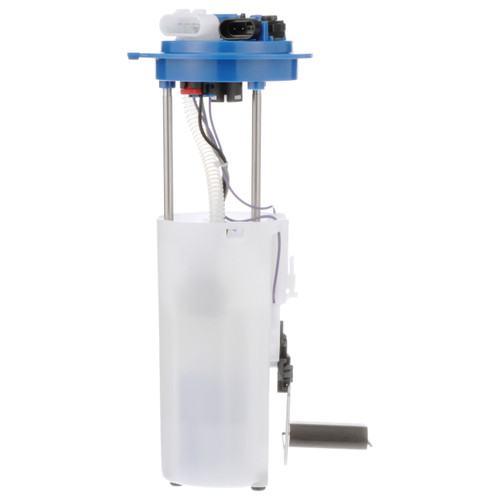

Delphi FG0342 fuel pump module for the 2004-2005 Chevrolet Impala V6 3.4L or 3.8L and other vehicles moves fuel from the tank to the engine. This Delphi fuel pump module assembly is built to Delphi's OE standards and is validated, tested and matched to the right vehicle application.
- Float arm with the empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG0342 fuel pump module
- Also called: fuel pump assembly
- Fits: 2004-2005 Chevrolet Impala V6 3.4L or 3.8L and other vehicles
- Condition: New
Hard starting, stalling or a fuel gauge that reads wrong can be signs of a worn module. A clogged fuel filter, a failed fuel pump relay or wiring trouble can cause hard starting or stalling too, so find the cause before buying a module. If the pump in the tank is the cause, this module replaces it.
Fits
This fuel pump module also fits the 2004-2005 Chevrolet Monte Carlo V6 3.4L or 3.8L and the 2004-2005 Buick Century V6 3.1L, along with other vehicles. The 2004-2005 Chevrolet Impala V6 3.4L or 3.8L takes one. If your car is not one of these, open the "Vehicles it fits" section and look up your exact model and engine.
Specifications
- Quantity per vehicle: 1
- Type: fuel pump module assembly with float arm
- Float: empty float height and float retention match OE specifications
- Condition: New
In the box

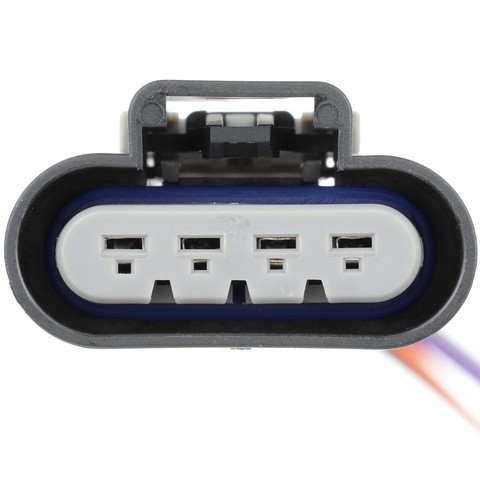

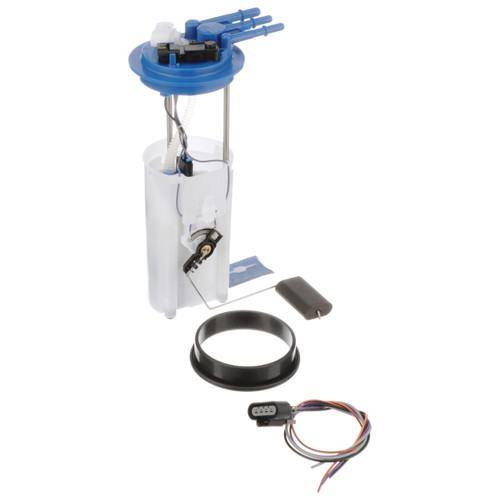

One fuel pump module with float arm, one seal, one splice kit and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the installation steps.
Interchange: 402-P3542M
M10188 · MU1906 · 4010264 · E3542M · E3565M · DFG0342 · F2553A · 67460 · 67497 · 67562 · M2246742 · P74928M · P74984M · AFS0759S · RE0759S · 19180109 · 19331286 · 19369965 · 89060193 · 1AMFP00045 · C0192M · A30044 · SP6177M · C5331031 · USEP3542M
This part cross-references / interchanges with the following part numbers:
M10188, MU1906, 4010264, E3542M, E3565M, DFG0342, F2553A, 67460, 67497, 67562, M2246742, P74928M, P74984M, AFS0759S, RE0759S, 19180109, 19331286, 19369965, 89060193, 1AMFP00045, C0192M, 402-P3542M, A30044, SP6177M, C5331031, USEP3542M
Frequently Asked Questions
Does the Delphi FG0342 fuel pump module fit the 2004-2005 Buick Century V6 3.1L?
Yes. Delphi FG0342 is listed for the 2004-2005 Buick Century V6 3.1L, and it also fits the 2004-2005 Chevrolet Impala V6 3.4L or 3.8L. For other models, open the "Vehicles it fits" section.
Is a splice kit included with the Delphi module?
Yes. The Delphi FG0342 package has the fuel pump module with float arm, a seal, a splice kit and an instruction sheet.
Will a Delphi fuel module give a correct fuel gauge reading?
Yes, this fuel pump module is built for that: its empty float height and float retention match OE specifications and are meant to give a correct gas gauge reading.
Can a worn fuel pump assembly make a car stall or crank without starting?
Yes, a worn pump can cause hard starting or stalling, and a float that misreads can throw off the fuel gauge. Fuel pressure testing is best left to a shop.
Do I need to clean the fuel tank before installing the Delphi FG0342?
Yes. Check and clean the fuel tank first, and follow the instruction sheet in the box for the installation steps.
