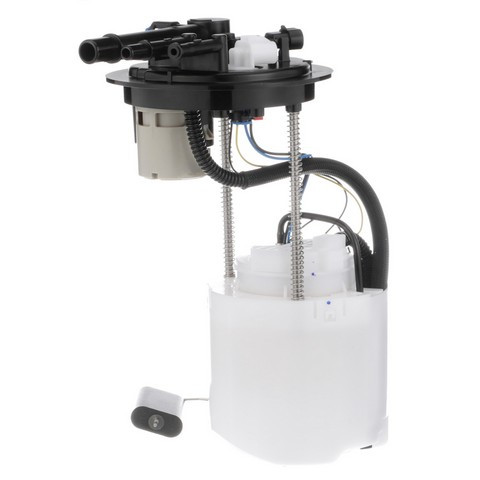

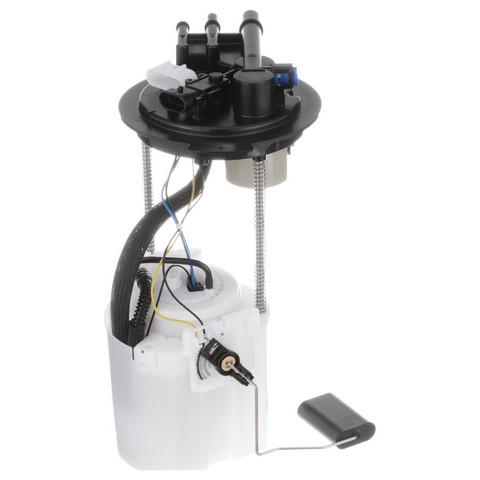

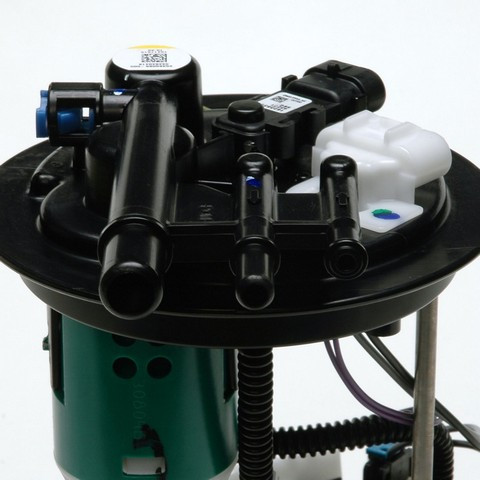

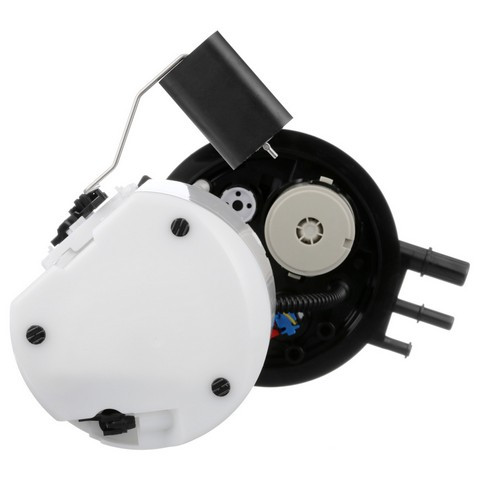

Delphi FG0378 fuel pump module for the 2006 Chevrolet Impala V8 5.3L and other vehicles moves fuel from the tank to the engine. This Delphi fuel pump module, also called a fuel pump assembly, carries a float arm that sends the fuel level to the gauge.
- Empty float height and float retention are held to specification for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested for its vehicle application
- Lower failure rates from its design and durability
Quick facts
- Part: Delphi FG0378 fuel pump module
- Also called: fuel pump assembly
- Fits: 2006 Chevrolet Impala V8 5.3L and other vehicles
- Condition: New
A clogged fuel filter, a failed fuel pump relay or damaged wiring can be behind hard starting, stalling or an erratic fuel gauge too, so find the cause before buying. If the module is the cause, this one replaces it.
Fits
It also fits the 2005-2006 Pontiac Grand Prix V6 3.8L or V8 5.3L and the 2006 Chevrolet Monte Carlo V8 5.3L. The quantity is one module per vehicle.
Specifications
- Quantity per vehicle: 1
- Engines covered: V6-3.8L, V8-5.3L
- Condition: New
In the box
One fuel pump module with float arm, seal and instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the installation steps.
Interchange: M10035 · MU1328 · MU1690 · MU1699 · E3700M · CFG0378 · P76238M · P76280M · P76849M · 19122344 · 19177354 · 19177358 · 19331980 · 25384479 · 25386308 · 28045334 · 28045338 · 88965398 · C0248M · C0270M · A30332 · SP6023M · SP6491M · SP6505M · SP6506M
This part cross-references / interchanges with the following part numbers:
M10035, MU1328, MU1690, MU1699, E3700M, CFG0378, P76238M, P76280M, P76849M, 19122344, 19177354, 19177358, 19331980, 25384479, 25386308, 28045334, 28045338, 88965398, C0248M, C0270M, A30332, SP6023M, SP6491M, SP6505M, SP6506M
Frequently Asked Questions
Does the Delphi fuel pump module assembly fit a 2005-2006 Pontiac Grand Prix V6 3.8L?
Yes. Delphi FG0378 fits the 2005-2006 Pontiac Grand Prix V6 3.8L or V8 5.3L, and each one takes a single module.
Does the Delphi module come with a float arm and seal?
Yes. Delphi FG0378 comes as a fuel pump module with float arm, seal and an instruction sheet.
How does this fuel pump module help the gas gauge read correctly?
Its empty float height and float retention match OE specifications, which is what supports a correct gas gauge reading.
Do I need to clean the tank before fitting a Delphi fuel module?
Yes. The tank should be checked and cleaned before the new module goes in, and the instruction sheet that comes with the part lists the steps.
Is 19177354 an interchange number for Delphi FG0378?
Yes. 19177354 is one of the numbers this Delphi FG0378 fuel pump module replaces, and it is shown on the Interchange line.
