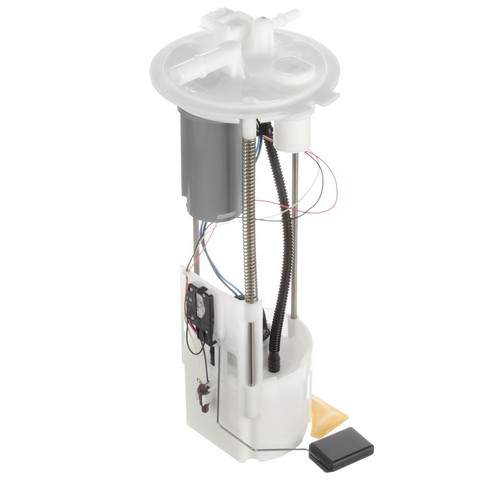

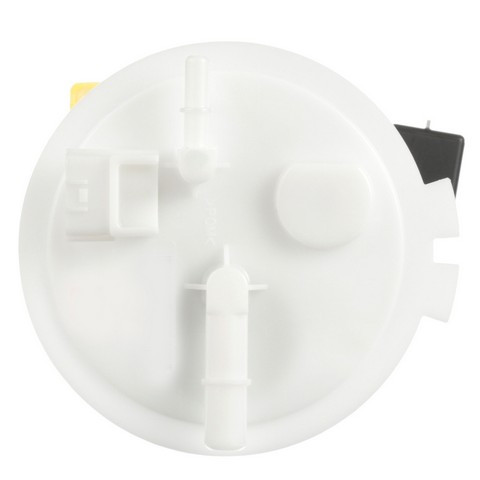

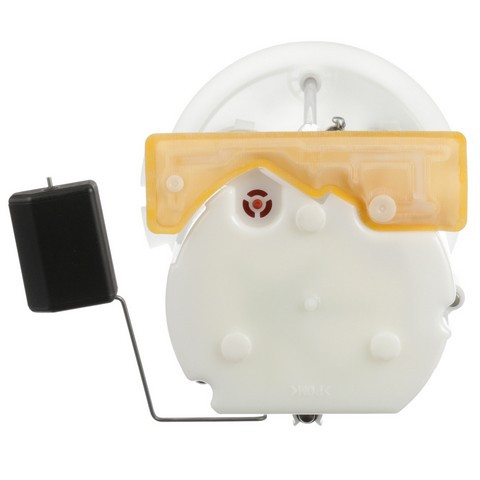

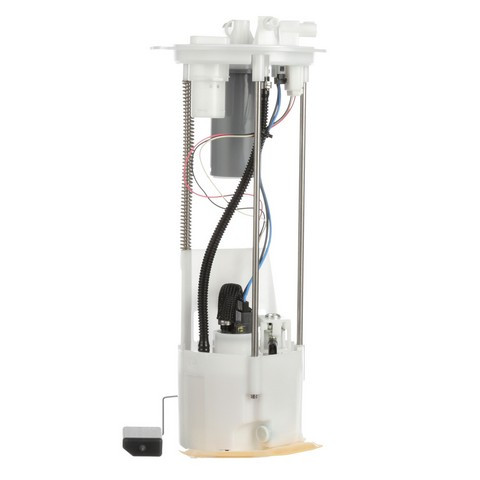

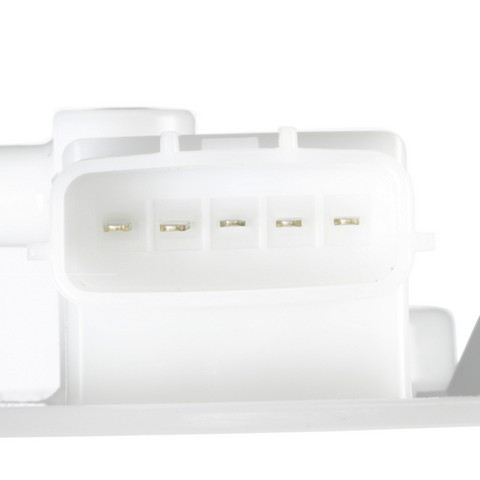

Delphi FG1896 fuel pump module for the 2012-2017 Nissan NV2500 V8 5.6L, the 2012-2021 NV2500 V6 4.0L and other vehicles moves fuel from the tank to the engine and carries the float arm behind the gas gauge reading. The module, also called a fuel pump assembly, is built to Delphi's OE standards.
- Empty float height and float retention for correct gas gauge reading
- Lower amperage draw puts less load on the electrical system
- Validated and tested, then matched to the right application
- Design and durability for lower failure rates
Quick facts
- Part: Delphi FG1896 fuel pump module
- Also called: fuel pump assembly
- Fits: the 2012-2017 Nissan NV2500 V8 5.6L, the 2012-2021 NV2500 V6 4.0L and other vehicles
- Condition: New
A hard start, stalling or a gas gauge that reads wrong can mean the pump or float arm is wearing out. These signs alone do not prove this module is the problem, since a faulty fuel pump relay can cause them too.
Fits
It fits the 2012-2017 Nissan NV3500 V8 5.6L, the 2012-2021 NV3500 V6 4.0L and the 2012-2021 Nissan NV1500 V6 4.0L. The 2012-2021 Nissan NV1500 V6 4.0L takes one module.
Specifications
- Quantity per vehicle: 1
- Float arm: included
- Condition: New
In the box
One fuel pump module with float arm and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the part for the steps.
Interchange: 17040-1PA0A
E8862M · EFG1896 · C0706M · SP4170M · USEP8862M
This part cross-references / interchanges with the following part numbers:
E8862M, EFG1896, 17040-1PA0A, C0706M, SP4170M, USEP8862M
Frequently Asked Questions
Is the Delphi fuel pump module assembly FG1896 right for the 2012-2021 Nissan NV1500 V6 4.0L?
Yes, Delphi FG1896 fits the 2012-2021 Nissan NV1500 V6 4.0L, and that vehicle takes one module.
What comes with the Delphi fuel module?
This Delphi FG1896 listing is one fuel pump module with a float arm, plus an instruction sheet.
Does the Delphi module match the original float height?
Yes, the empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
Can a hard start or a wrong gas gauge reading come from the pump or float arm?
Yes, a long crank, stalling or a gauge that reads wrong can come from the pump or its float arm. A shop can confirm it with a fuel pressure test.
Does the Delphi fuel pump module FG1896 cross to E8862M?
Yes, E8862M is one of the numbers Delphi FG1896 replaces. The other cross-reference numbers are on the Interchange line.
