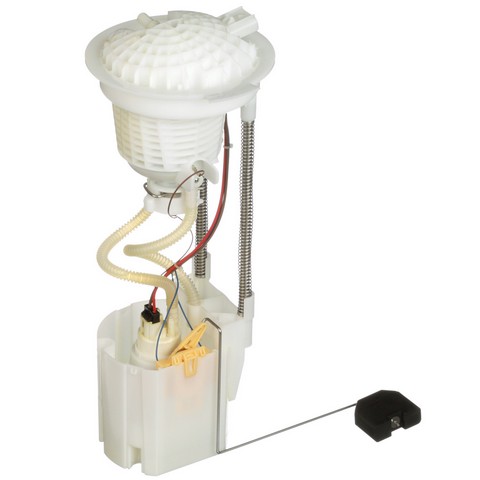

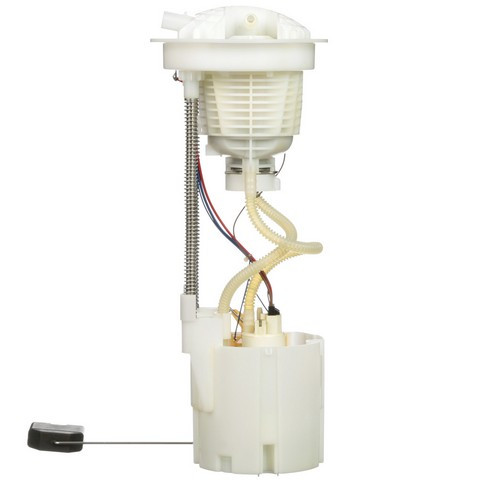

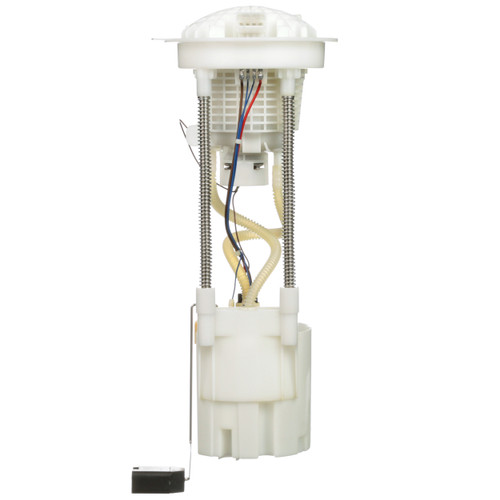

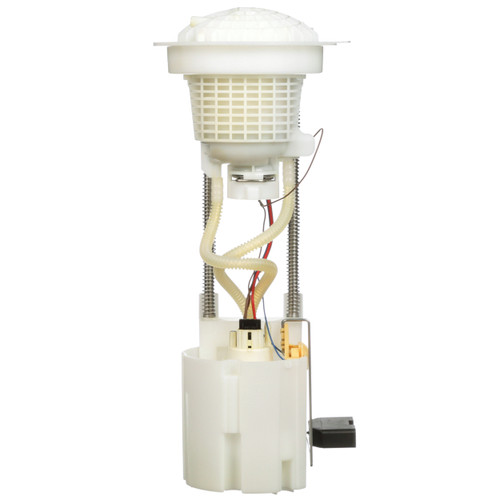

Delphi FG0817 fuel pump module for the 2004-2006 Dodge Ram 1500 V6 3.7L, V8 4.7L or 5.7L carries fuel from the tank to the engine. This Delphi fuel pump module assembly is built to Delphi's OE standards.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Part is validated and tested
- Design and durability for lower failure rates
Quick facts
- Part: Delphi FG0817 fuel pump module
- Also called: fuel pump assembly
- Fits: 2004-2006 Dodge Ram 1500 V6 3.7L, V8 4.7L or 5.7L
A worn module can show up as hard starting, sputtering under load or a fuel gauge that reads wrong. Those signs alone do not prove the module is at fault, since a clogged fuel filter can also starve the engine.
Fits
This module is matched to the 2004-2006 Dodge Ram 1500 V6 3.7L, V8 4.7L or 5.7L, and the truck takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engines: V6-3.7L, V8-4.7L, V8-5.7L
Build and materials
- Float arm: included
- Seal: included
In the box
One fuel pump module with float arm, a seal and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the part for the steps.
Interchange: 5104 694AA · 5104 694AB · 953-3070 · 402-P7186M · 150111-A
4010430 · E7186M · DFG0817 · F3197A · 67706 · 67778 · M2480507 · P76259M · 5104694AC · 68003351AB · RL104694AC · AFS0942S · C0480M · A30110 · FP22029 · SP7022M · USEP7186M
This part cross-references / interchanges with the following part numbers:
4010430, E7186M, DFG0817, F3197A, 67706, 67778, M2480507, P76259M, 5104 694AA, 5104 694AB, 5104694AC, 68003351AB, RL104694AC, 953-3070, AFS0942S, C0480M, 402-P7186M, A30110, FP22029, SP7022M, 150111-A, USEP7186M
Frequently Asked Questions
Is the Delphi fuel pump module a fit for the 2004-2006 Dodge Ram 1500 V6 3.7L, V8 4.7L or 5.7L?
Yes. Delphi FG0817 fits the 2004-2006 Dodge Ram 1500 with the V6 3.7L, V8 4.7L or 5.7L, and the truck takes one module.
Does the Delphi fuel module come with a float arm and seal?
Yes. Delphi FG0817 comes with the float arm, a seal and an instruction sheet.
How does this module keep the gas gauge reading correct?
Its empty float height and float retention match OE specifications, which is what keeps the gas gauge reading correct.
What are the signs of a failing fuel pump assembly?
Common signs include a whine from the tank, stalling and loss of power. A shop can test the pump to confirm it.
Does the Delphi FG0817 need anything done to the fuel tank before installation?
Yes. Check and clean the fuel tank before installing, and follow the instruction sheet that comes with the part.
