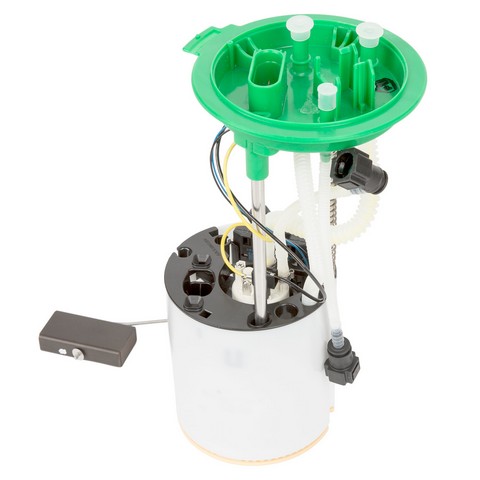

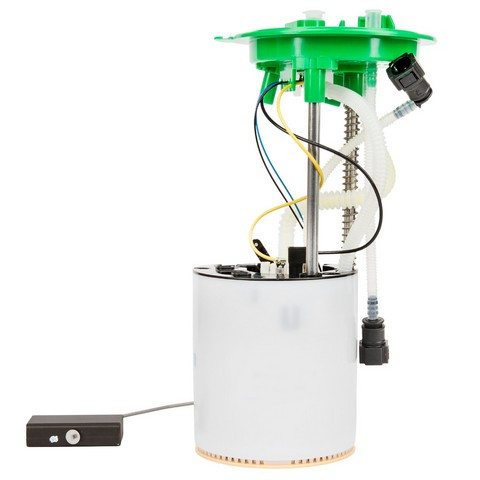

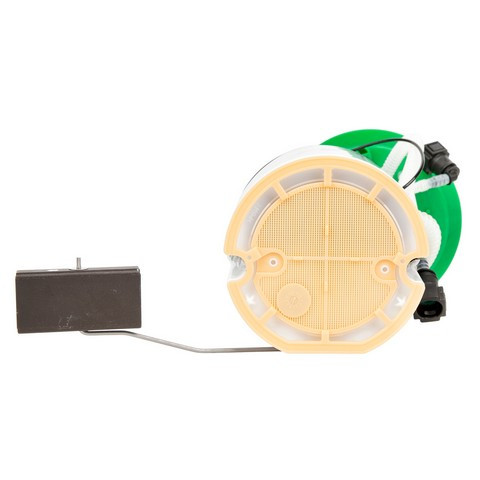

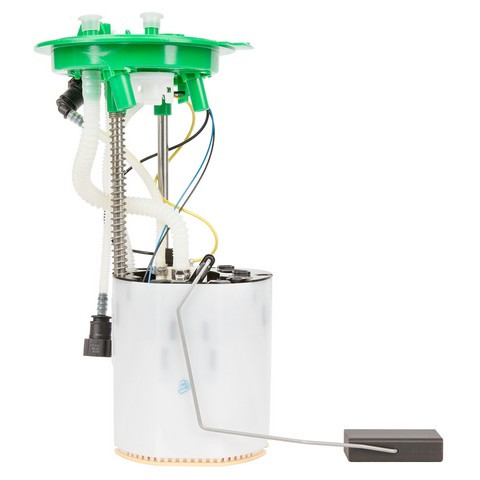

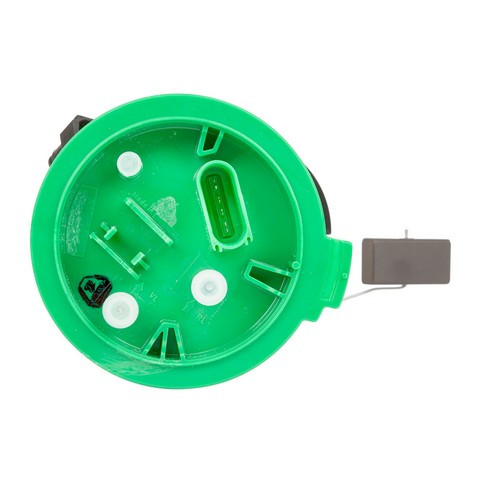

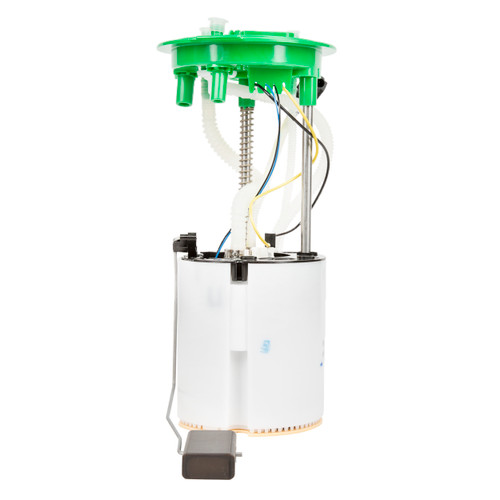

Delphi FG0983 fuel pump module for the 2005-2009 Audi A4 delivers fuel from the tank to the engine. This Delphi fuel pump module assembly is built to Delphi's OE standards, with a float arm set to OE specifications.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draws less load on the vehicle's electrical system
- Validated and tested, then matched to its vehicle application
- Lower failure rates from its design and durability
Quick facts
- Part: Delphi FG0983 fuel pump module
- Also called: fuel pump assembly
- Fits: 2005-2009 Audi A4
Hard starting, sputtering or a fuel gauge that reads wrong can mean the fuel pump assembly is wearing out. Before you replace it, rule out the fuel pump fuse and relay, the wiring and the fuel filter, because those signs can come from more than one place.
Fits
It fits the 2005-2006 Audi A4 L4-2.0L, the 2006 A4 V6-3.2L and the 2007-2009 A4. The 2005-2009 Audi A4 takes one.
Specifications
- Quantity per vehicle: 1
- Construction: module assembly with float arm
In the box

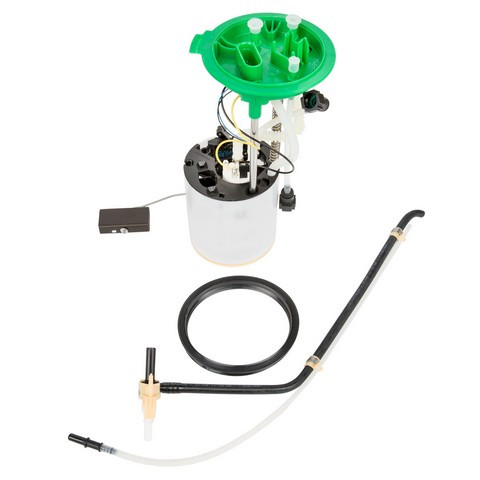

One fuel pump module with float arm, seal, fuel feed line and instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the module for the steps.
Interchange: 8E0 919 051 CN
4010539 · E8763M · DFG0983 · P76565M · A30345 · SP5020M · USEP8763M
This part cross-references / interchanges with the following part numbers:
4010539, E8763M, 8E0 919 051 CN, DFG0983, P76565M, A30345, SP5020M, USEP8763M
Frequently Asked Questions
Does Delphi FG0983 work as an Audi A4 fuel pump module on a 2006 Audi A4 V6-3.2L?
Yes. Delphi FG0983 is listed for the 2006 Audi A4 V6-3.2L, as well as the 2005-2006 Audi A4 L4-2.0L and the 2007-2009 Audi A4.
Does the Delphi fuel module come with the float arm and fuel feed line?
Yes. The Delphi FG0983 package has the float arm, a seal, the fuel feed line and an instruction sheet along with the module.
How does this Delphi fuel pump module keep the gas gauge reading correct?
Its empty float height and float retention match OE specifications, which is what keeps the gas gauge reading correct. Its lower amperage also draws less load on the electrical system.
Does the Delphi module need the fuel tank cleaned before it goes in?
Yes. Always check and clean the fuel tank when installing this module. The instruction sheet in the package covers the installation steps.
Does Delphi FG0983 replace part number 8E0 919 051 CN?
Yes. 8E0 919 051 CN is one of the numbers this Delphi fuel pump module replaces; the full list is on the Interchange line.
