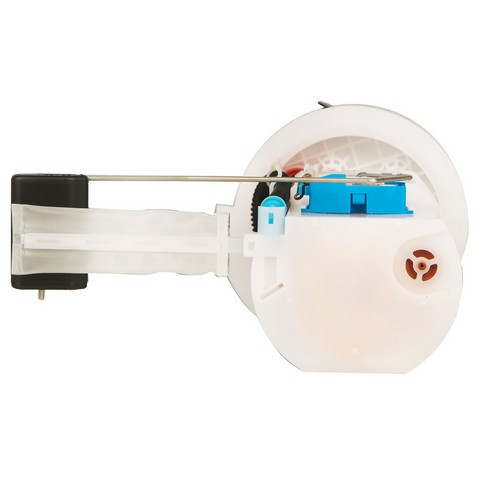

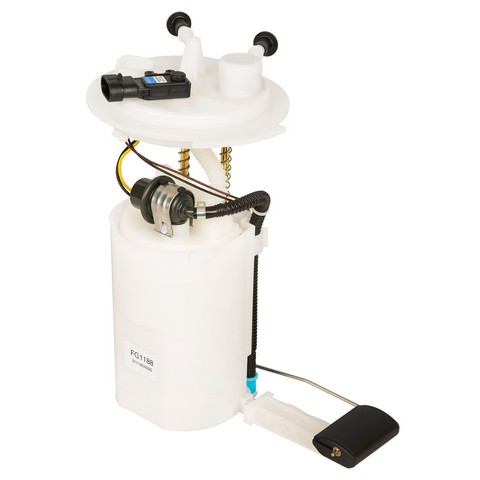

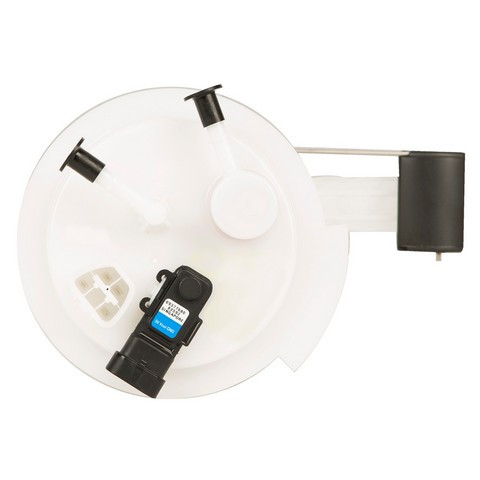

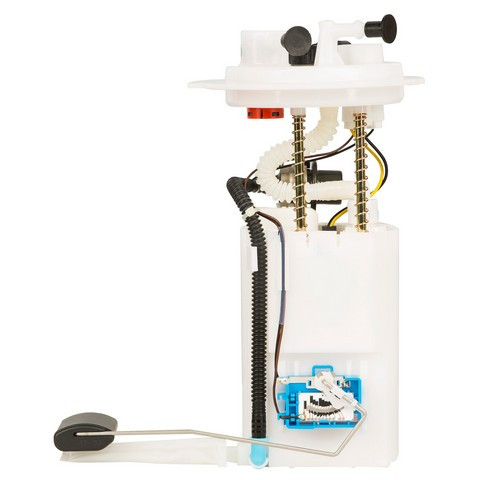

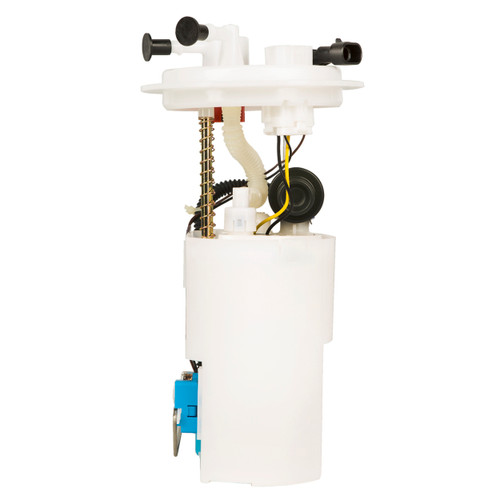

Delphi FG1188 fuel pump module for the 2008-2010 Hyundai Sonata 4-cylinder 2.4L moves fuel from the tank to the engine. This Delphi fuel pump module assembly, also called a fuel pump assembly, comes with a float arm that reports the fuel level to the gauge.
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested, then matched to its vehicle application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG1188 fuel pump module
- Also called: fuel pump assembly
- Fits: 2008-2010 Hyundai Sonata 4-cylinder 2.4L
- Condition: New
A hard start, stalling or a fuel gauge that reads wrong can have several causes. Before you replace the module, rule out the fuse, relay and wiring to the pump; if the module is the cause, this assembly replaces it.
Fits
This module is a direct-fit replacement for the 2008-2010 Hyundai Sonata 4-cylinder 2.4L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engine: 4-cylinder 2.4L
Build and materials
- Construction: fuel pump module assembly with float arm
- Condition: New
In the box
One fuel pump module with its float arm and an instruction sheet. This listing is one module, and the 2008-2010 Hyundai Sonata 4-cylinder 2.4L takes one.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the part for the installation steps.
Interchange: 951-0007 · 31110-0A500
4010684 · E9026M · DFG1188 · P76719M · A33125 · C0735M · SP3038M · USEP9026M
This part cross-references / interchanges with the following part numbers:
4010684, E9026M, DFG1188, P76719M, 951-0007, 31110-0A500, A33125, C0735M, SP3038M, USEP9026M
Frequently Asked Questions
Does the Delphi fuel pump module fit the 2008-2010 Hyundai Sonata 4-cylinder 2.4L?
Yes, Delphi FG1188 is listed for the 2008-2010 Hyundai Sonata 4-cylinder 2.4L, and that car takes one module.
What is included with the Delphi fuel module?
Delphi FG1188 comes with one fuel pump module assembly with its float arm and an instruction sheet.
Does the Delphi module match the original float height?
Yes, the empty float height and float retention of this fuel pump module match OE specifications, which is meant to give a correct gas gauge reading.
How can I tell if a fuel pump module is wearing out?
Hard starting, stalling or a fuel gauge that reads wrong can be signs, though other faults can produce them too. A shop can test fuel pressure and the pump circuit.
Should the fuel tank be cleaned before installing this fuel pump module?
Yes. Delphi FG1188 should go into a tank that has been inspected and cleaned first.
