Fuel Pump Module for 2003-2004 Jeep Wrangler - Delphi FG1221

$219.99
WARNING:California Proposition 65▾
Delphi Fuel Pump Module Assembly FG1221
Delphi Fuel Pump Module Assembly FG1221 - view 2
Delphi Fuel Pump Module Assembly FG1221 - view 3
Delphi Fuel Pump Module Assembly FG1221 - view 4
Delphi Fuel Pump Module Assembly FG1221 - view 5
Delphi Fuel Pump Module Assembly FG1221 - view 6
Delphi Fuel Pump Module Assembly FG1221 - view 7
Delphi Fuel Pump Module Assembly FG1221 - view 8
Delphi Fuel Pump Module Assembly FG1221
Delphi Fuel Pump Module Assembly FG1221 - view 2
Delphi Fuel Pump Module Assembly FG1221 - view 3
Delphi Fuel Pump Module Assembly FG1221 - view 4
Delphi Fuel Pump Module Assembly FG1221 - view 5
Delphi Fuel Pump Module Assembly FG1221 - view 6
Delphi Fuel Pump Module Assembly FG1221 - view 7
Delphi Fuel Pump Module Assembly FG1221 - view 8

Vehicles this part fits
    Part number: FG1221
    UPC: 689604231913
    Condition: New
    Weight: 8.21 LBS
    Item Package Quantity: 1
    $219.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

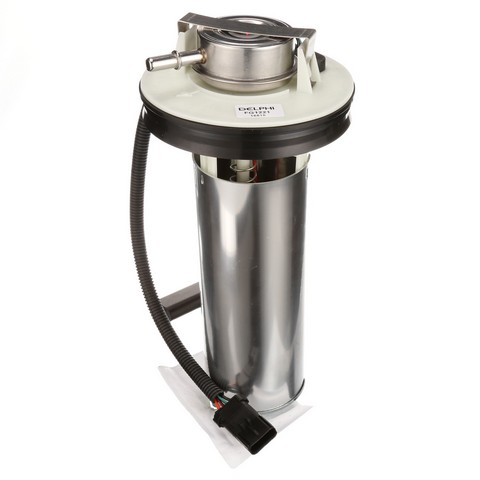

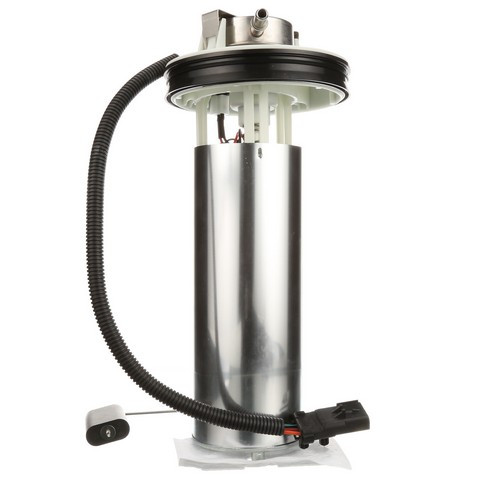

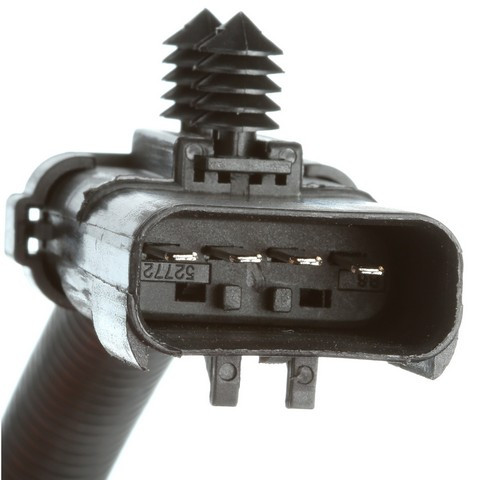

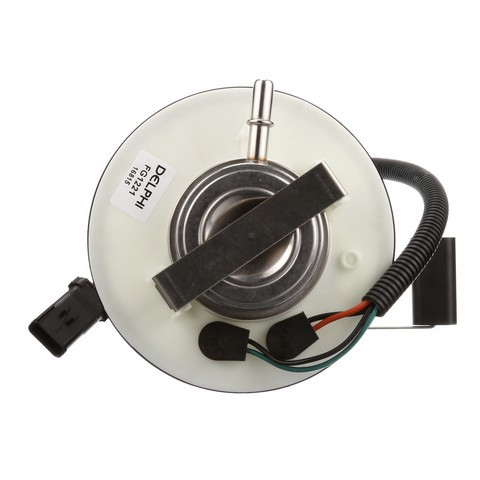

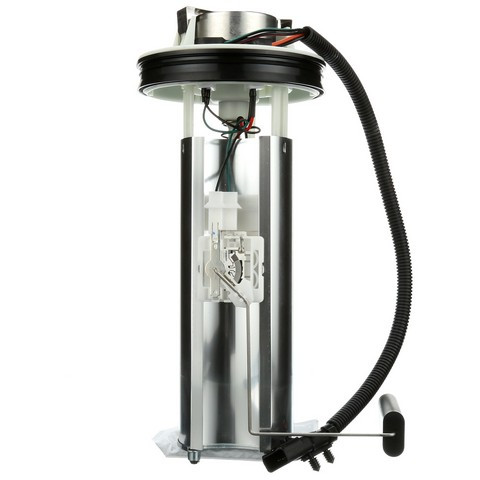

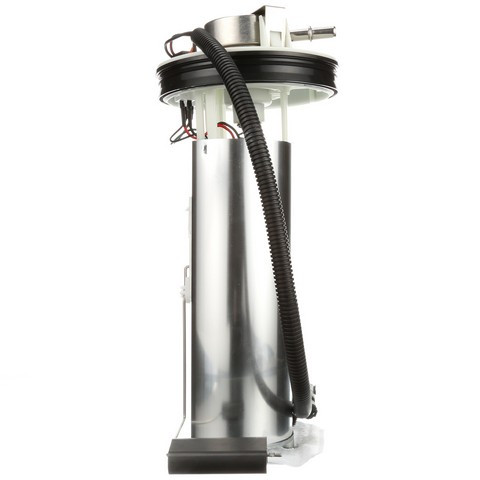

    Delphi Fuel Pump Module Assembly P/N:FG1221
    Delphi Fuel Pump Module Assembly P/N:FG1221
    $219.99
    $219.99

    Delphi FG1221 fuel pump module for the 2003-2004 Jeep Wrangler 4-cylinder 2.4L or 6-cylinder 4.0L delivers fuel from the tank to the engine. This Delphi fuel pump module assembly is built to Delphi's OE standards and includes its float arm.

    • Empty float height and float retention are set for a correct gas gauge reading
    • Lower amperage draw puts less load on the vehicle's electrical system
    • Validated and tested, and matched to the right vehicle application
    • Design and durability aimed at lower failure rates

    Quick facts

    • Part: Delphi FG1221 fuel pump module
    • Also called: fuel pump assembly
    • Fits: 2003-2004 Jeep Wrangler 4-cylinder 2.4L or 6-cylinder 4.0L
    • Condition: New

    Hard starting, a whine from the tank or an erratic fuel gauge can mean this fuel pump assembly is worn, though the fuel injectors or the fuel pressure regulator can also be behind them, so find the cause first.

    Fits

    It fits the 2003-2004 Jeep Wrangler with the 4-cylinder 2.4L or the 6-cylinder 4.0L engine. A Wrangler takes a single module, whichever engine it has.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Engines: L4-2.4L, L6-4.0L

    Build and materials

    • Float arm: included
    • Condition: New

    In the box

    One fuel pump module with float arm and one instruction sheet.

    Installation notes

    • Check and clean the fuel tank before installing the module.
    • The instruction sheet that comes with the part covers the installation steps.

    Interchange: 5093 788AA · 950-0199
    4010371 · E7154 · E7156MN · DFG1221 · 67726 · 69316 · P76224 · P76520M · RL093788AB · RL093788AC · C0459M · A30180 · E16022 · SP1132 · SP7156M · USEP7156M

    This part cross-references / interchanges with the following part numbers:

    4010371, E7154, E7156MN, DFG1221, 67726, 69316, P76224, P76520M, 5093 788AA, RL093788AB, RL093788AC, 950-0199, C0459M, A30180, E16022, SP1132, SP7156M, USEP7156M

    Frequently Asked Questions

    Does the Delphi FG1221 fit a 2003-2004 Jeep Wrangler 4-cylinder 2.4L or 6-cylinder 4.0L?

    Yes. Delphi FG1221 fuel pump module fits the 2003-2004 Jeep Wrangler with either the 4-cylinder 2.4L or the 6-cylinder 4.0L engine.

    Does the Delphi fuel pump module come with a float arm?

    Yes. Delphi FG1221 comes as a fuel pump module assembly with its float arm, plus an instruction sheet.

    Will this Delphi fuel module give a correct gas gauge reading?

    Yes. The empty float height and float retention match OE specifications, which sets up a correct gas gauge reading.

    Is this Delphi module validated for a specific vehicle application?

    Yes. The part is validated, tested and matched to the right vehicle application, and its lower amperage draw puts less load on the electrical system.

    Does Delphi FG1221 replace pump number E7154?

    Yes. E7154 is one of the interchange numbers listed for Delphi FG1221, along with several other brands' and OE numbers on the Interchange line.
