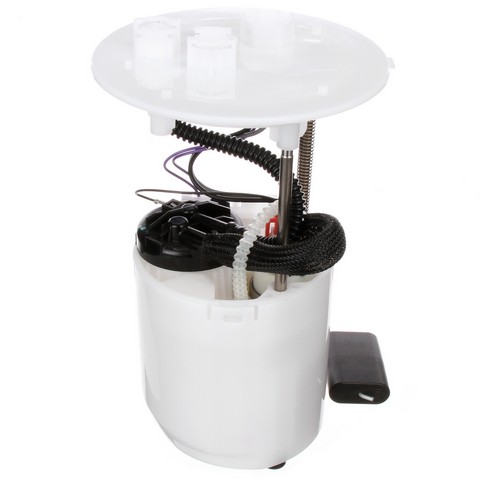

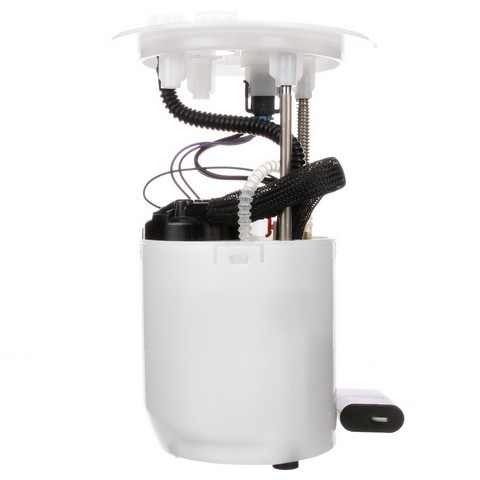

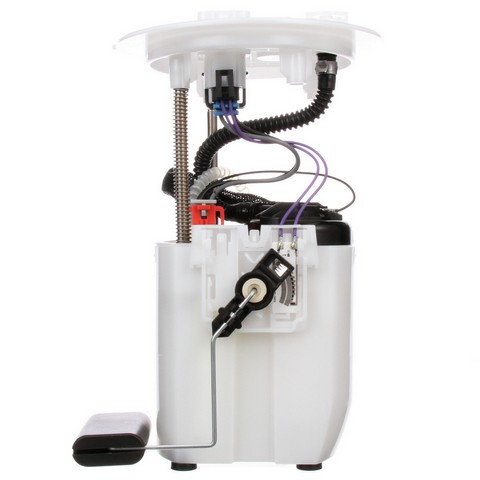

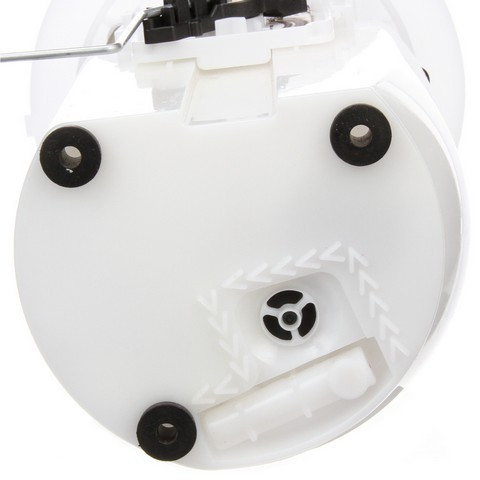

Delphi FG1274 fuel pump module for the 2011-2016 Toyota Sienna V6 3.5L pumps fuel from the tank to the engine. The Delphi fuel pump module assembly also includes the float arm that tracks fuel level for the gas gauge.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Design and durability for lower failure rates
- Validated and tested before it is sold
Quick facts
- Part: Delphi FG1274 fuel pump module
- Also called: fuel pump assembly
- Fits: 2011-2016 Toyota Sienna V6 3.5L
- Condition: New
A worn module can show up as hard starting, stalling or sputtering under load, or a fuel gauge that reads wrong. A blown fuse or a bad relay can produce similar symptoms, so look over the fuel pump fuse and relay with the engine off first, and leave fuel pressure testing to a shop.
Fits
This fuel pump module is a direct-fit replacement for the 2011-2016 Toyota Sienna V6 3.5L and is matched to that vehicle application. All Delphi fuel pumps are built to Delphi's OE standards.
Specifications
- Quantity per vehicle: 1
- Engine: V6-3.5L
- Condition: New
In the box

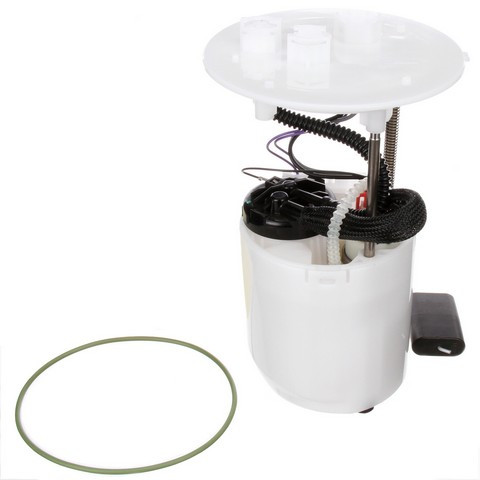

One fuel pump module with float arm, seal and instruction sheet. This listing holds one Delphi module, and the vehicle takes one.
Installation notes
- The instruction sheet that comes with the module covers the steps.
- Check and clean the fuel tank during installation.
Interchange: 77020-08050 · 83320-08030
4010981 · E9015M · CFG1274 · P76777M · A46539 · SP9023M · USEP9015M
This part cross-references / interchanges with the following part numbers:
4010981, E9015M, CFG1274, P76777M, A46539, SP9023M, 77020-08050, 83320-08030, USEP9015M
Frequently Asked Questions
Does the Delphi FG1274 fit a 2011-2016 Toyota Sienna V6 3.5L?
Yes. Delphi FG1274 is listed for the 2011-2016 Toyota Sienna V6 3.5L, and that vehicle takes one module.
Does this fuel pump assembly come with the float arm and seal?
Yes. Delphi FG1274 arrives as the fuel pump module with a float arm, a seal and an instruction sheet.
Does the Delphi fuel pump module put less load on the electrical system?
Yes. This module's lower amperage draw means less load on the vehicle's electrical system.
Could hard starting mean the fuel pump module is worn?
Yes. Hard starting can be a sign of a worn module, as can stalling or a fuel gauge that reads wrong. A shop can test fuel pressure to find the cause.
Does the Delphi fuel module come with installation instructions?
Yes. An instruction sheet comes with the module, and the fuel tank should be checked and cleaned during installation.
