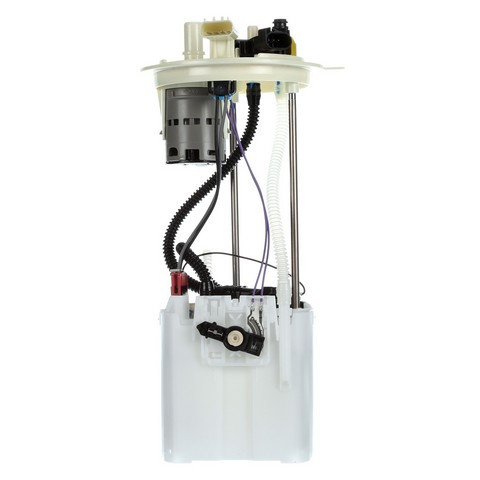

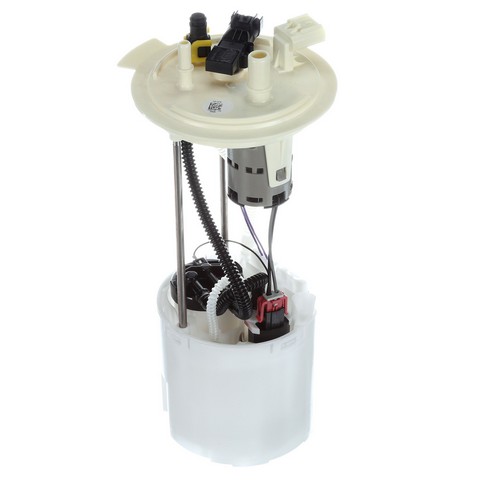

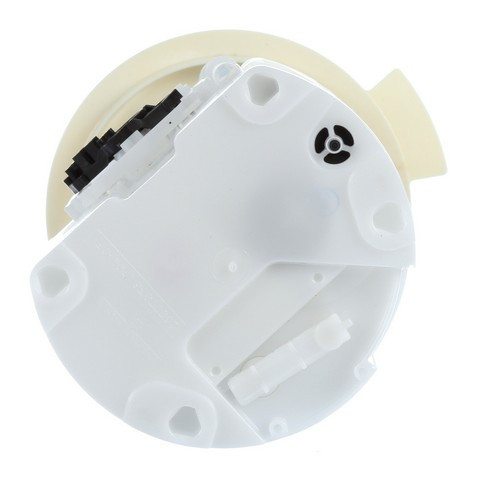

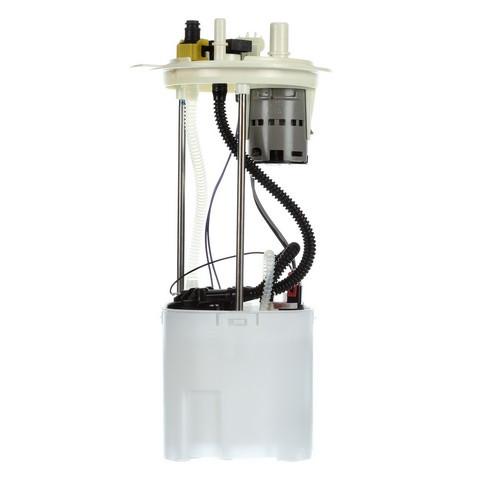

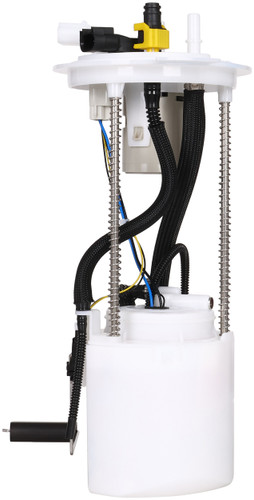

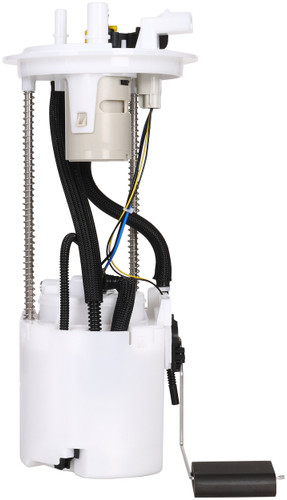

Delphi FG1479 fuel pump module for the 2010-2016 Ford E-450 Super Duty V8 5.4L, the 2011-2017 E-450 Super Duty V10 6.8L and other vehicles pumps fuel from the tank to the engine. This Delphi fuel pump module assembly is built to the company's own OE standards.
- Empty float height and float retention set to give a correct gas gauge reading
- Lower amperage, so the pump draws less load on the vehicle's electrical system
- Validated and tested, then matched to the right application
- Design and durability that give lower failure rates
Quick facts
- Part: Delphi FG1479 fuel pump module
- Also called: fuel pump assembly
- Fits: 2010-2016 Ford E-450 Super Duty V8 5.4L, the 2011-2017 E-450 Super Duty V10 6.8L and other vehicles
- Condition: New
A fuel gauge that reads wrong, hard starting or stalling can mean the pump module is wearing out. Before you replace the module, rule out a blown fuel pump fuse, a faulty relay and a damaged wiring connector, since the pump module may not be the source.
Fits
This module is listed for a wide range of Ford models, including the 2011-2016 Ford E-350 Super Duty V8 5.4L, the 2011-2019 E-350 Super Duty V10 6.8L and the 2011-2014 Ford E-150 V8 4.6L or 5.4L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Package quantity: 1
Build and materials
- Condition: New
- Float arm: included
- Seal: included
In the box

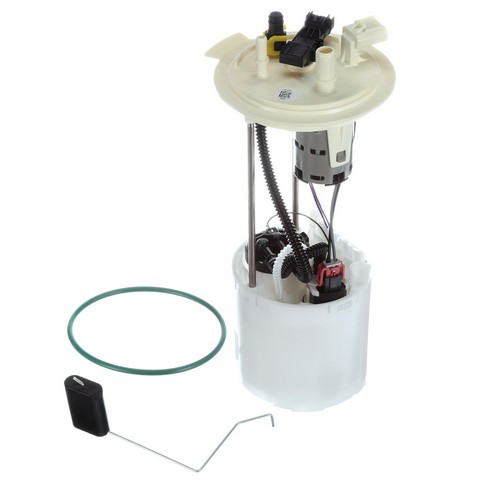

One fuel pump module with its float arm, a seal and an instruction sheet. This listing holds one module, and one is all the vehicle takes.
Installation notes
- Check and clean the fuel tank before fitting the module.
- The instruction sheet in the package covers the steps.
Interchange: BC2Z 9H307-B · PFS-574
4010766 · E2580M · DFG1479 · DC2Z9H307C · SP2471M · USEP2580M
This part cross-references / interchanges with the following part numbers:
4010766, E2580M, DFG1479, BC2Z 9H307-B, DC2Z9H307C, PFS-574, SP2471M, USEP2580M
Frequently Asked Questions
Is this Delphi fuel module listed for the 2011-2016 Ford E-350 Super Duty V8 5.4L?
Yes, Delphi FG1479 is listed for the 2011-2016 Ford E-350 Super Duty V8 5.4L and the 2011-2019 E-350 Super Duty V10 6.8L. If your vehicle isn't named, look it up in the "Vehicles it fits" section by year and engine.
Is the Delphi module listed for the 2011-2014 Ford E-150 V8 4.6L or 5.4L?
Yes, Delphi FG1479 is listed for the 2011-2014 Ford E-150 with either the V8 4.6L or the V8 5.4L.
Does this fuel pump assembly come with the float arm and seal?
Yes. The Delphi FG1479 package has the pump module with its float arm, a seal and an instruction sheet.
Does the float on this fuel pump module affect gas gauge accuracy?
Yes. The empty float height and float retention on this module are set to OE specifications for a correct gas gauge reading.
Is DC2Z9H307C an interchange number for Delphi FG1479?
Yes. Delphi FG1479 replaces DC2Z9H307C, one of the cross-reference numbers listed for it.
