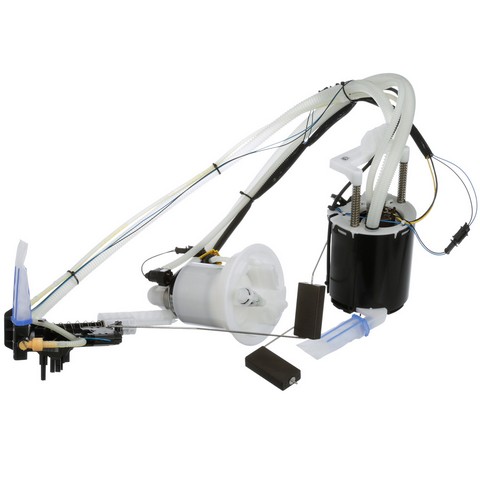

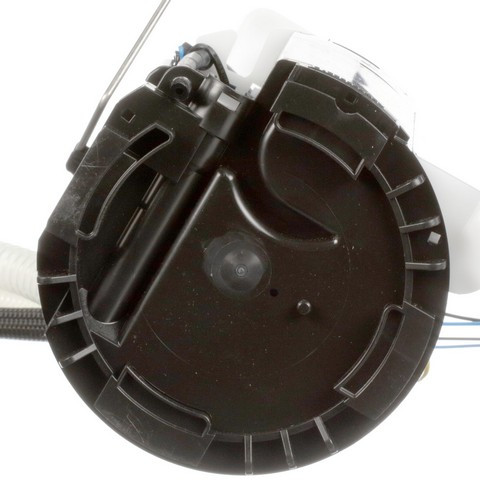

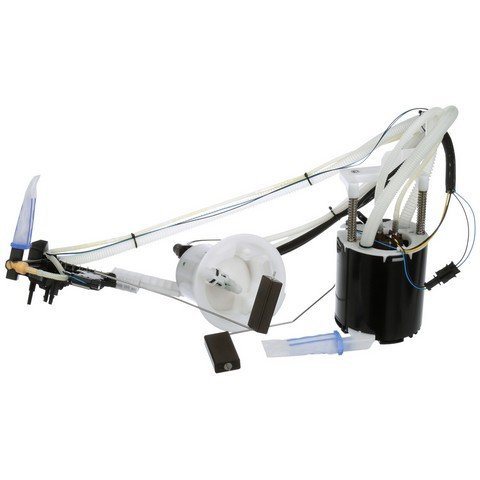

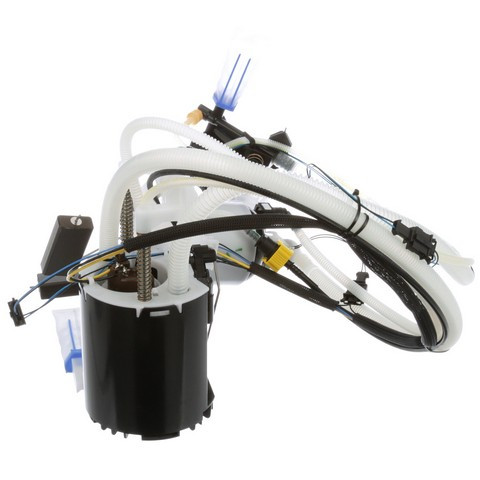

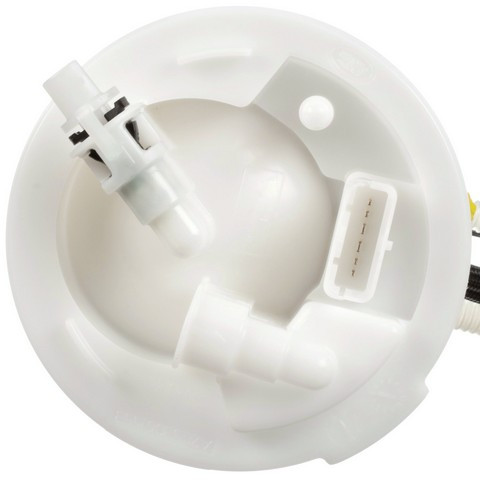

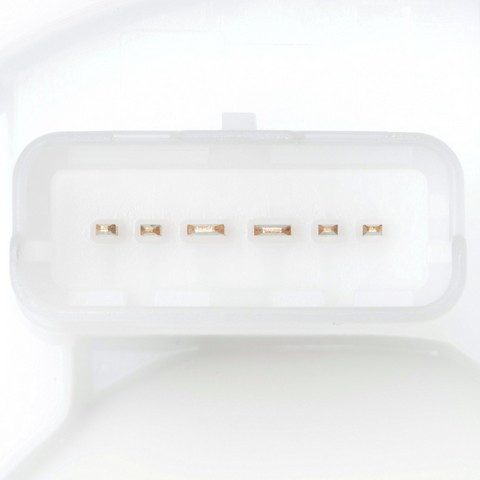

Fuel Pump Module for 2006-2009 Land Rover Range Rover - Delphi FG1722

Delphi FG1722 fuel pump module for the 2006-2009 Land Rover Range Rover V8 4.4L pumps fuel from the tank to the engine. The module's float sends the fuel level to the gas gauge.

• Fuel pump built to Delphi's own standards
• Empty float height and float retention match the specifications for correct gas gauge reading
• Lower amperage draw puts less load on the vehicle's electrical system
• Validated and tested, then matched to the right application
• Design and durability aimed at lower failure rates

Quick facts

• Part: Delphi FG1722 fuel pump module
• Also called: fuel pump assembly
• Fits: 2006-2009 Land Rover Range Rover V8 4.4L
• Condition: New

Hard starting, stalling or a gas gauge that reads wrong can be signs of a weak module, though other parts can cause them too. With the engine off, look at the fuel pump fuse and relay first, and leave fuel pressure testing to a shop. If the module is the cause, this replaces it.

Fits

This Delphi fuel pump module assembly fits the 2006-2009 Land Rover Range Rover V8 4.4L, and the vehicle takes one.

Specifications

• Quantity per vehicle: 1
• Float arms: 2
• Condition: New

In the box

One fuel pump module with two float arms and one instruction sheet.

Installation notes

• Check and clean the fuel tank before installing the module.
• The instruction sheet in the package covers the steps.

Interchange: LR0 15178 · WGC 500150
DFG1722 · P77235M · A46511 · SP4112M · A2C53098411Z
