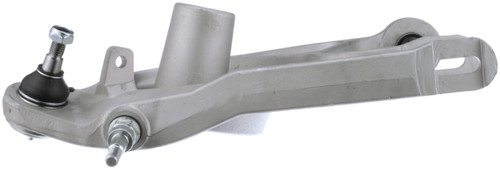

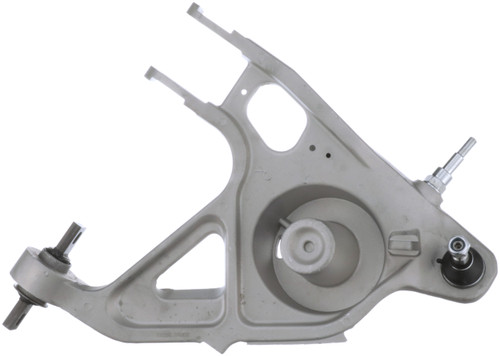

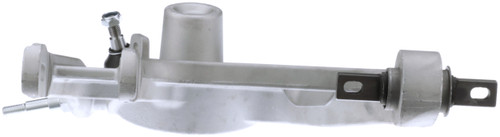

Delphi TC6249 rear right lower control arm with ball joint for the 2002-2005 Buick Rendezvous V6 3.4L, the 2004-2006 Rendezvous V6 3.6L, the 2006-2007 Rendezvous V6 3.5L and other vehicles connects the rear right wheel to the suspension. It is also called a control arm and ball joint assembly.
- Tested at temperatures below -40 degrees C and over 120 degrees C, and through 720 hours of salt spray
- Every Delphi control arm goes through 100% crack detection and ultrasonic flaw detection
- Ball studs machined to micron tolerances for durability and smooth joint operation
- Robot welding for consistent performance and quality
- Anti-corrosion protection applied to each part
Quick facts
- Part: Delphi TC6249 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: the 2002-2005 Buick Rendezvous V6 3.4L, the 2004-2006 Rendezvous V6 3.6L, the 2006-2007 Rendezvous V6 3.5L and other vehicles
- Position: Rear right lower
- Condition: New
A worn rear lower arm or ball joint can show up as a clunk from the rear over bumps, uneven rear tire wear or a loose feel at the back. Before you replace the arm, rule out worn rear shocks, a loose wheel bearing or out-of-balance tires. If the arm or its ball joint is the cause, this part replaces both.
Fits
It is listed for a wide range of Buick, Chevrolet, Oldsmobile, Pontiac and Saturn models, including the 2002-2004 Pontiac Montana V6 3.4L, the 2005-2006 Montana V6 3.5L, the 2006 Montana V6 3.9L, the 2005-2006 Chevrolet Uplander V6 3.5L and the 2006 Uplander V6 3.9L. Open the "Vehicles it fits" section to check your exact model and engine. This listing is one arm for the rear right; the rear left is a separate part, and both are normally replaced together.
Specifications
Fit and size
- Position: Rear right lower
- Quantity: 1 per rear right side
Build and materials
- Construction: robot-welded
- Finish: anti-corrosion protection
- Condition: New
In the box
One rear right lower control arm with ball joint, and the rear right side takes one.
Interchange: 521-012
CB90544 · CB90544PR · 10412907 · 25795979 · K80305 · RK80350 · CMK80350 · GK80350
This part cross-references / interchanges with the following part numbers:
521-012, CB90544, CB90544PR, 10412907, 25795979, K80305, RK80350, CMK80350, GK80350
Frequently Asked Questions
Will Delphi TC6249 work as a 2006-2007 Buick Rendezvous control arm with the V6 3.5L?
Yes. Delphi TC6249 is listed for the 2006-2007 Buick Rendezvous V6 3.5L as the rear right lower arm. For any other model or engine, open the "Vehicles it fits" section and check your car there.
Is this the right 2006 Chevrolet Uplander control arm for the V6 3.9L engine?
Yes. Delphi TC6249 is listed for the 2005-2006 Chevrolet Uplander V6 3.5L and the 2006 Uplander V6 3.9L, as the rear right lower arm.
Does the Delphi TC6249 arm come with a rear left one as well?
No. This listing is one rear right lower control arm with ball joint. The rear left arm on the same axle is a separate part.
How is this rear right lower arm made?
This rear right lower arm is robot-welded for consistent performance and quality, and its ball studs are machined to micron tolerances. Anti-corrosion protection is applied to each part.
What sounds or wear can point to a worn rear lower arm?
A clunk from the rear over bumps, uneven rear tire wear or a loose feel at the back can mean the arm or its ball joint is worn. A shop can inspect the rear suspension to confirm.
