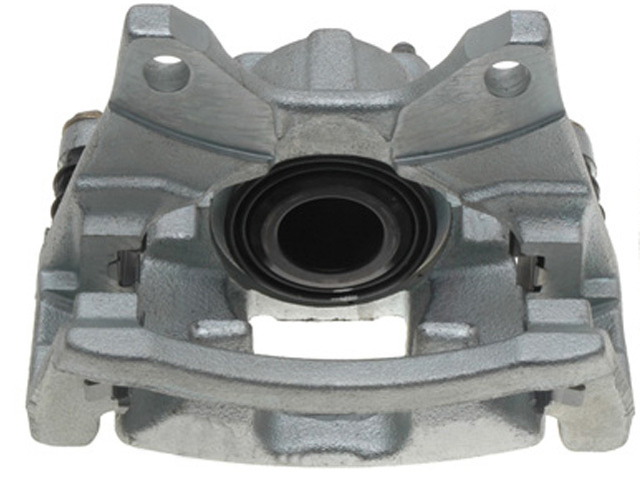

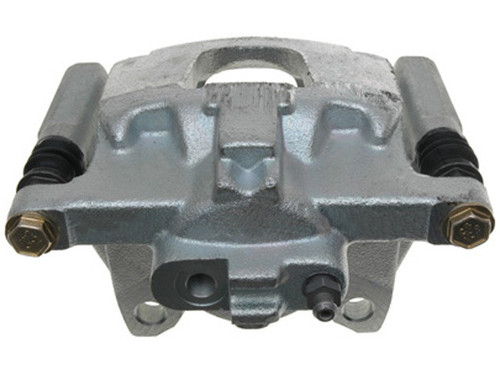

Raybestos Brakes FRC11888 rear brake caliper for the 2007-2017 Jeep Wrangler and other vehicles clamps the brake pads against the rotor to slow the wheel. It is a remanufactured, semi-loaded disc brake caliper and bracket assembly.
- Raybestos R-Line non-plated caliper, remanufactured with all new rubber and sealing components
- Castings, guide pins and brackets are inspected before being reused
- Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings replaced with new parts for leak-free operation
- 100% pressure tested, with each caliper tested for reliable braking performance
- EPDM70 rubber components for heat resistance and durability
Quick facts
- Part: Raybestos Brakes FRC11888 rear brake caliper
- Also called: disc brake caliper
- Fits: 2007-2017 Jeep Wrangler and other vehicles
- Position: Rear right, rear left
- Material: Cast iron
- Condition: Remanufactured
A pull to one side under braking, one rear pad wearing faster than the other or a rear brake that drags can mean a caliper problem. Worn pads, a worn rotor or a damaged brake hose can be behind these signs too, so find the cause before replacing the caliper.
Fits
The 2007-2017 Jeep Wrangler, the 2008-2012 Jeep Liberty and the 2018 Jeep Wrangler JK take this caliper, along with other vehicles; open the "Vehicles it fits" section to match your exact model and engine. This listing is a single caliper for the rear right or rear left, each rear wheel takes one, and the two sides are normally replaced together.
Specifications
Fit and size
- Position: rear right, rear left
- Quantity per application: 1
- Piston diameter: 48 mm (1.89 in)
- Bleeder screw thread: M10x1
Build and materials
- Caliper type: floating
- Construction: semi-loaded caliper and bracket assembly
- Casting material: cast iron
- Finish: non-plated
- Condition: remanufactured
- Country of origin: Mexico
In the box
One remanufactured caliper and bracket assembly.
Interchange: 15-11283 · 99-17736B · 18-B5047 · 18-P5047 · 141.67517 · 142.67517 · 14-1283
SC4404
This part cross-references / interchanges with the following part numbers:
15-11283, 99-17736B, 18-B5047, 18-P5047, 141.67517, 142.67517, SC4404, 14-1283
Frequently Asked Questions
Does this Jeep Wrangler brake caliper fit a 2007-2017 Wrangler?
Yes. Raybestos Brakes FRC11888 fits the 2007-2017 Jeep Wrangler, and the 2018 Jeep Wrangler JK is covered too. Open the "Vehicles it fits" section to match your exact model.
Which parts are replaced with new ones in this remanufactured caliper?
Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new materials. Castings, guide pins and brackets are inspected before they are reused.
What piston size does the Raybestos Brakes FRC11888 caliper have?
The piston is 48 mm (1.89 in) across. This is a floating caliper with an M10x1 bleeder screw thread.
What should I look for on a rear caliper that is leaking or worn out?
Brake fluid seepage, torn boots or heavy rust on the caliper can mean it needs replacing. Have the brakes inspected promptly, because a leaking caliper affects stopping.
Does Raybestos Brakes FRC11888 cross-reference to 15-11283?
Yes. 15-11283 is one of the other numbers this caliper replaces, and it is printed on the Interchange line with the rest.
