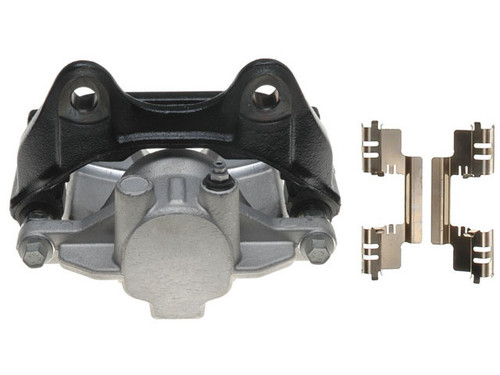

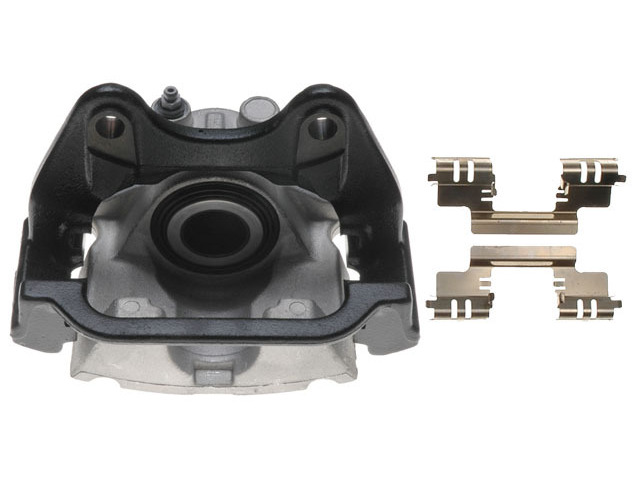

Clamp the brake pads against the rotor with the Raybestos R-Line Remanufactured Semi-Loaded Disc Brake Caliper and Bracket Assembly (FRC11825). It installs as a rear left direct-fit replacement for the 2007-2020 Cadillac Escalade and Escalade ESV, 2007-2013 Escalade EXT, 2007-2013 Chevrolet Avalanche, 2007-2018 Silverado 1500, 2019 Silverado 1500 LD, 2015-2020 Suburban, 2007-2014 Suburban 1500, 2007-2020 Tahoe, 2007-2018 GMC Sierra 1500, 2019 Sierra 1500 Limited, 2007-2020 Yukon, 2015-2020 Yukon XL, and 2007-2014 Yukon XL 1500 (engine: All) — see the Buyer's Guide tab for the full list.
- Remanufactured OE caliper: castings, guide pins, and brackets are inspected before reuse and rebuilt with all-new rubber and sealing components.
- New leak-prevention parts: seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings are replaced with new materials.
- EPDM70 rubber components for heat resistance, performance, and durability, with 100% pressure testing.
- Coated finish on the caliper and bracket for corrosion resistance.
This floating-design assembly uses a single 2.003 in (50.876 mm) piston, an M10X1.00 bleeder screw thread, and an M14 bracket mounting hole, and includes the mounting bracket. Materials match OE specifications. Country of origin: Mexico. Sold as one rear-left unit; replacing the opposite side as a matched pair is recommended for balanced braking.
Interchange: 18-B5030 · 18B5030 · 99-17397A · 9917397A · 16-5030 · 165030 · 18-P5030 · 18P5030 · 141.66530 · 142.66530 · SC0197C · 10-4308S · 104308S · 14-4308 · 144308
Manufacturer part number FRC11825
This part cross-references / interchanges with the following part numbers:
18-B5030, 99-17397A, 16-5030, 18-P5030, 141.66530, 142.66530, SC0197C, 10-4308S, 14-4308
