Give your rear brakes a street-performance upgrade with the Raybestos Specialty Street Performance Brake Rotor, part number 780257. This vented rear disc brake rotor combines cooling vanes, an application-specific coating and a turned finish. It fits many vehicles, among them the 2006-2014 Dodge Charger, 2005-2014 Chrysler 300 and 2009-2014 Dodge Challenger. It is a direct-fit replacement for the listed applications, and the Buyer's Guide tab has the full list.

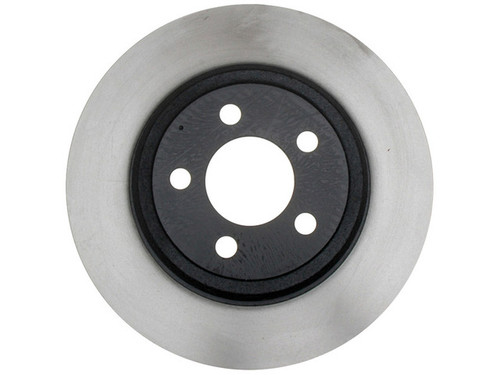

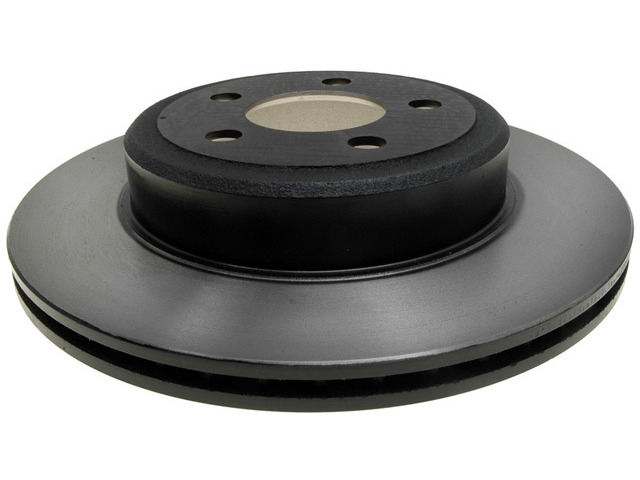

This cast iron rotor has a drum-in-hat design, so the rotor hat serves as the drum for the parking brake shoes. It has a non-directional braking surface and five lug holes. Outside diameter is 12.6 in (320.05 mm), nominal thickness is 0.866 in (22 mm) and discard thickness is 0.807 in (20.5 mm). Center hole is 2.86 in (72.65 mm), overall height is 2.64 in (67.05 mm) and the bolt circle is 4.528 in (115 mm). Rotor size can vary by brake package, so confirm that the 12.6 in (320.05 mm) outside diameter matches your original rotor.
An ABS tone ring is not included. This listing is for one rotor. The listed applications use two, and replacing both sides together is recommended for even, balanced braking. Country of origin: China.
Are these 2006-2014 Dodge Charger rotors for the rear axle?
Yes. Raybestos 780257 is a rear rotor listed for the 2006-2014 Dodge Charger. Check that its 12.6 in (320.05 mm) diameter matches your original rotor, since rotor size can vary by brake package.
Will it work as a 2005-2014 Chrysler 300 brake rotor or a 2009-2014 Dodge Challenger brake rotor?
Both are listed applications. Match the 12.6 in (320.05 mm) outside diameter to your original rotor, and see the Buyer's Guide tab for the full list.
What are the key specs of this rotor?
It is a vented, drum-in-hat cast iron rotor with a non-directional surface and five lug holes. Nominal thickness is 22 mm (0.866 in) and discard thickness is 20.5 mm (0.807 in).
What comes in the box?
One rotor. An ABS tone ring is not included. The listed applications use two rotors, and replacing both sides together is recommended.
What are signs this rotor may need replacing?
Signs include a pulsating brake pedal, grinding noises, deep scoring, or wear down to the 0.807 in (20.5 mm) discard thickness. Have the brakes inspected to confirm the cause.
