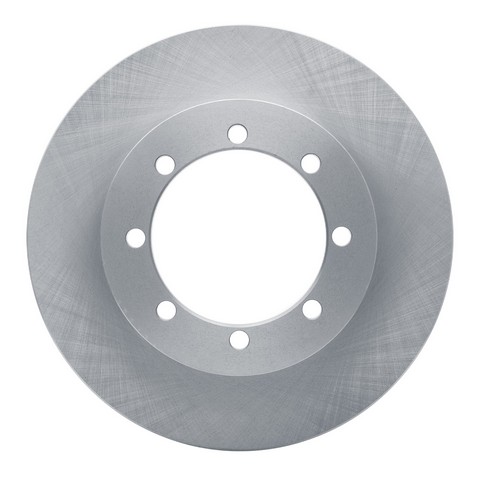

Rear Brake Rotor for 2003-2007 Ford E-450 Super Duty - Dynamic Friction 600-54154

$108.99
Dynamic Friction Company Disc Brake Rotor 600-54154
Dynamic Friction Company Disc Brake Rotor 600-54154

Vehicles this part fits
    Part number: 600-54154
    UPC: 190920033766
    Condition: New
    Weight: 32.10 LBS
    Item Package Quantity: 1
    $108.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Dynamic Friction Company Disc Brake Rotor P/N:600-54154
    Dynamic Friction Company Disc Brake Rotor P/N:600-54154
    $108.99
    $108.99

    Dynamic Friction 600-54154 rear brake rotor for the 2003-2007 Ford E-450 Super Duty gives the rear pads a vented, mill-balanced surface to clamp against. It replaces a worn or grooved rotor on the rear axle.

    • Precision mill-balanced for smoother stopping
    • CNC-machined to tight tolerances
    • G3000/G11H18 iron castings for strength, stability and durability
    • Vented construction with vanes to dissipate heat
    • Non-directional finish to promote faster break-in and smoother stops
    • Rust-resistant coating

    Quick facts

    • Part: Dynamic Friction 600-54154 brake rotor
    • Also called: disc brake rotor
    • Fits: 2003-2007 Ford E-450 Super Duty
    • Position: Rear
    • Material: G3000/G11H18 iron castings
    • Condition: New

    Pedal pulsation, a grinding or scraping noise, or deep grooves and rust ridges on the rotor face can mean the rotor is worn, though worn pads or a sticking caliper can be behind the same signs.

    Fits

    This rear rotor is made to the same form, fit and function as OEM brake rotors for the 2003-2007 Ford E-450 Super Duty. This listing is one rotor, and the 2003-2007 Ford E-450 Super Duty takes two, so order two and fit them together.

    Specifications

    Fit and size

    • Position: Rear
    • Quantity per vehicle: 2
    • Outside diameter: 328 mm
    • Inside diameter (center hole): 123.2 mm
    • Bolt circle: 145 mm, 8 lug holes
    • Lug hole diameter: 12.9 mm
    • Nominal thickness: 38.1 mm
    • Discard thickness: 36.3 mm
    • Overall height: 123.8 mm

    Build and materials

    • Type: Vented
    • Surface: Smooth, non-directional
    • Finish: Plain
    • Material: G3000/G11H18 iron castings
    • Coating: Rust resistant
    • Condition: New

    Installation notes

    • Comes new in the box and ready to install.
    • No modifications are required.

    Frequently Asked Questions

    Does the Dynamic Friction 600-54154 fit the 2003-2007 Ford E-450 Super Duty?

    Yes. Dynamic Friction 600-54154 is a rear brake rotor for the 2003-2007 Ford E-450 Super Duty, which takes two of them.

    Is this disc brake rotor vented or solid?

    It is vented, with an outside diameter of 328 mm and a nominal thickness of 38.1 mm.

    When is a Dynamic Friction 600-54154 rotor worn out?

    Dynamic Friction 600-54154 has a discard thickness of 36.3 mm, down from 38.1 mm new. A rotor that measures at or below 36.3 mm should be replaced.

    Is the surface on this rear rotor directional?

    No. The surface is non-directional, so it has no set rotation direction, and the finish is meant to promote faster break-in and smoother stops.

    What is the bolt pattern on this rear rotor?

    It has eight lug holes of 12.9 mm on a 145 mm bolt circle, with a 123.2 mm center hole.
