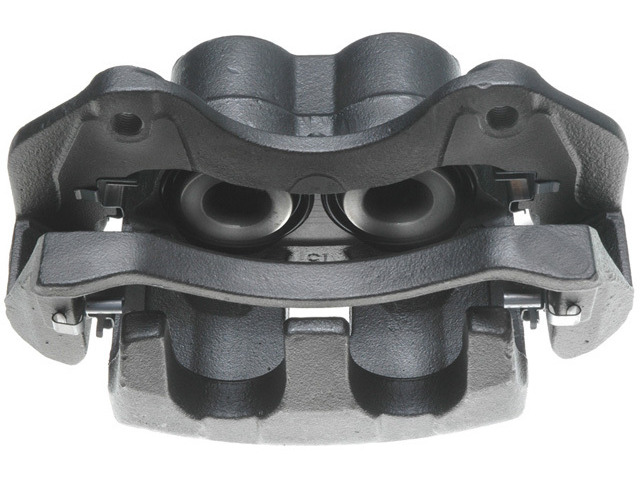

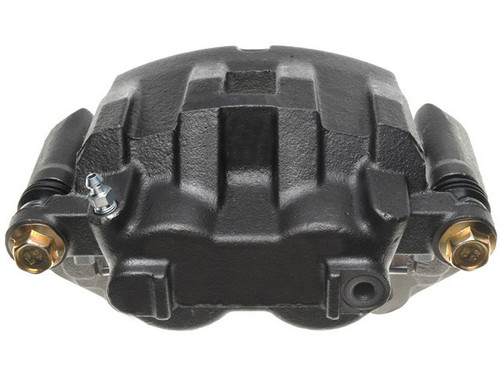

Raybestos Brakes FRC11395 front right brake caliper for the 1999-2004 Jeep Grand Cherokee clamps the brake pads against the rotor to slow the wheel. This remanufactured disc brake caliper is a 1999-2004 Jeep Grand Cherokee caliper supplied semi-loaded, with its mounting bracket.
- Raybestos R-Line series non-plated remanufactured caliper
- Castings, guide pins and brackets are inspected before they are reused
- Materials built to vehicle-specific designs
- All new rubber and sealing parts: seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings for leak-free operation
- 100% pressure tested
- EPDM70 rubber components for heat resistance and durability
Quick facts
- Part: Raybestos Brakes FRC11395 brake caliper
- Also called: disc brake caliper
- Fits: 1999-2004 Jeep Grand Cherokee
- Position: Front right
- Material: Cast iron
- Condition: Remanufactured
A brake fluid leak at the caliper, a pull to one side when braking, or pads that wear unevenly can mean the caliper is sticking or failing. Before you replace it, rule out worn pads, a damaged brake hose and a seized guide pin.
Fits
It is a direct-fit replacement for the 1999-2004 Jeep Grand Cherokee, with materials that match OE specifications. This listing is one caliper for the front right; the front left is a separate part, and that side of the axle is normally done at the same time. The 1999-2004 Jeep Grand Cherokee takes one caliper on each side of the front axle.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1
- Piston quantity: 2
- Piston diameter: 47.498 mm (1.870 in)
- Bleeder screw thread: M10X1.00
- Bracket mounting hole size: M12, thread pitch 1.25 mm
- Mounting bracket: included
Build and materials
- Caliper type: Floating, semi-loaded
- Configuration: Friction ready
- Casting material: Cast iron
- Casting number: 4802
- Surface finish: Coated (caliper and bracket)
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One brake caliper with its mounting bracket.
Interchange: 15-11195 · 99-17683A · 18-B4826 · 18-P4826 · 141.58005 · 142.58005 · 14-1195
SC4416
This part cross-references / interchanges with the following part numbers:
15-11195, 99-17683A, 18-B4826, 18-P4826, 141.58005, 142.58005, SC4416, 14-1195
Frequently Asked Questions
Is the Raybestos Brakes FRC11395 caliper right for the 1999-2004 Jeep Grand Cherokee?
Yes. Raybestos Brakes FRC11395 is a front right caliper for the 1999-2004 Jeep Grand Cherokee; the front left side is a separate part.
Does this front right Raybestos R-Line caliper come with its bracket?
Yes. It is a semi-loaded caliper and bracket assembly, so the mounting bracket is included.
What piston size does the Raybestos Brakes FRC11395 caliper have?
The Raybestos Brakes FRC11395 has a piston diameter of 47.498 mm (1.870 in) and two pistons. Its bleeder screw thread is M10X1.00.
How can I tell if a front right caliper is sticking or leaking?
Brake fluid around the caliper or its boot, a pull to one side under braking, or one pad worn far more than the other can mean a sticking caliper. A shop can confirm which part is at fault.
What gets replaced when Raybestos R-Line calipers are remanufactured?
Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are all new. Castings, guide pins and brackets are inspected and then reused.
