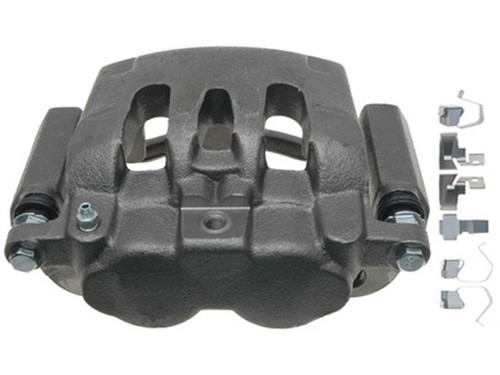

Raybestos Brakes FRC11589 rear right brake caliper for the 2005-2007 Ford F-250 Super Duty and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured, semi-loaded caliper and bracket assembly is also called a disc brake caliper.
- Raybestos R-Line non-plated caliper rebuilt with all new rubber and sealing components
- New seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings for leak-free operation
- Castings, guide pins and brackets inspected before they are reused
- 100% pressure tested
- EPDM70 rubber components for heat resistance, performance and durability
Quick facts
- Part: Raybestos Brakes FRC11589 brake caliper
- Also called: disc brake caliper
- Fits: 2005-2007 Ford F-250 Super Duty and other vehicles
- Position: Rear right
- Material: Cast iron
- Condition: Remanufactured
A sticking caliper can show up as the truck pulling to one side, a burning smell after a drive or fluid around the wheel. Worn pads, a worn rotor or a weak brake hose can be behind the same signs, so find the cause before buying. This listing is one caliper for the rear right; the rear left is a separate part, and that axle is normally done as a pair.
Fits
This caliper fits the 2005-2007 Ford F-250 Super Duty and the 2005-2007 Ford F-350 Super Duty, with one caliper on each side of the rear axle.
Specifications
Fit and size
- Position: Rear right
- Quantity per application: 1
- Piston diameter: 48 mm (1.89 in)
- Bracket mounting hole size: 16 mm
- Bracket mounting hole thread pitch: 2 mm
- Bleeder screw thread: 3/8-24
Build and materials
- Type: Floating, semi-loaded caliper and bracket assembly
- Casting material: Cast iron
- Condition: Remanufactured
- Country of origin: Mexico
Interchange: 18-B4920 · 15-13303 · 99-17937A · 16-4921 · 18-P4920 · 14-3303 · 141.65523 · 142.65523
SC1400
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
18-B4920, 15-13303, 99-17937A, 16-4921, 18-P4920, 141.65523, 142.65523, SC1400, 14-3303
Frequently Asked Questions
Does this brake caliper for the 2005-2007 Ford F-250 Super Duty go on the rear right?
Yes. Raybestos Brakes FRC11589 is the rear right caliper for the 2005-2007 Ford F-250 Super Duty; the rear left is a separate part.
Does FRC11589 also fit the 2005-2007 Ford F-350 Super Duty?
Yes. Raybestos Brakes FRC11589 is listed as a rear right caliper for the 2005-2007 Ford F-350 Super Duty as well.
What piston size does this floating caliper have?
The piston is 48 mm (1.89 in) across, and the caliper is a floating type. The bracket mounting holes are 16 mm with a 2 mm thread pitch.
Does this rear caliper come with its bracket?
Yes. This listing is a semi-loaded caliper and bracket assembly, sold as one rear right unit.
Does Raybestos Brakes FRC11589 replace SC1400?
Yes. SC1400 is one of the other numbers this rear right caliper replaces, along with 18-B4920, 15-13303 and 14-3303.
