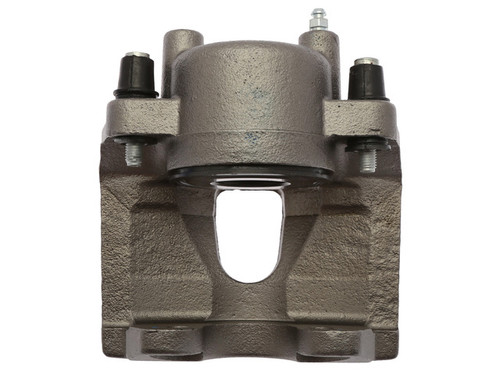

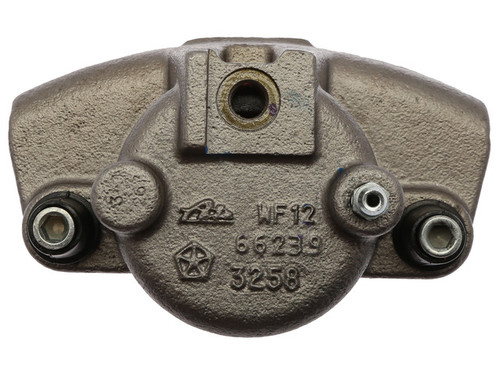

Raybestos Brakes FRC11222 front right brake caliper for the 2001-2007 Dodge Grand Caravan and other vehicles squeezes the pads against the rotor to slow the wheel. This remanufactured disc brake caliper is a semi-loaded floating design built from OE parts, with materials that match OE specifications.
- Raybestos R-Line non-plated remanufactured caliper
- Castings, guide pins and brackets inspected before they are reused
- New seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings for leak-free operation
- Silicone boots for heavy duty applications, where applicable
- 100% pressure tested
- EPDM70 rubber components for heat resistance and durability
Quick facts
- Part: Raybestos Brakes FRC11222 brake caliper
- Also called: disc brake caliper
- Fits: 2001-2007 Dodge Grand Caravan and other vehicles
- Position: Front right
- Material: Cast iron
- Condition: Remanufactured
Pulling to one side, brake fluid around the piston boot or one pad wearing faster than the other can mean a caliper problem. Hoses, pads and rotors can also produce these signs, so during a brake service with the engine off and the wheel removed, look at the boot and the pad wear before deciding which part to replace.
Fits
The 2001-2007 Dodge Grand Caravan, the 2001-2007 Chrysler Town & Country and the 2001-2003 Chrysler Voyager are among the many vehicles this brake caliper fits. If your car is not named here, look it up in the "Vehicles it fits" section. This listing is one caliper for the front right of the 2001-2007 Dodge Grand Caravan; the front left is a separate part, and the two are normally replaced together.
Specifications
Fit and size
- Position: Front right
- Quantity: 1 caliper per listing
- Piston diameter: 65.9 mm (2.594 in)
- Bracket mounting hole size: 14 mm, thread pitch 2 mm
- Bleeder screw thread: 3/8-24
Build and materials
- Caliper type: Floating, semi-loaded
- Casting material: Cast iron
- Condition: Remanufactured, non-plated
- Country of origin: Mexico
Interchange: 18-B4777 · 40-87041 · 99-17682B · 16-4777 · 18-4777 · 18-P4777 · 141.63025 · 142.63025 · 10-1183S · 14-1183 · 11-22130-1 · 11-22150-1
SL55959 · SL2099 · 5019807AA · SC0288 · C4777 · C669 · SLC669 · 6503 · S41236 · TQM25426
This part cross-references / interchanges with the following part numbers:
18-B4777, 40-87041, SL55959, 99-17682B, 16-4777, 18-4777, 18-P4777, SL2099, 141.63025, 142.63025, 5019807AA, SC0288, C4777, C669, SLC669, 6503, S41236, 10-1183S, 14-1183, TQM25426, 11-22130-1, 11-22150-1
Frequently Asked Questions
Is this the right caliper for the front right of a 2001-2007 Dodge Grand Caravan?
Yes. Raybestos Brakes FRC11222 is the front right brake caliper for the 2001-2007 Dodge Grand Caravan. The front left side takes a separate caliper.
Is this brake caliper right for the front right of a 2001-2003 Chrysler Voyager?
Yes. This front right brake caliper fits the 2001-2003 Chrysler Voyager. Owners of other years or models can find their car in the "Vehicles it fits" section.
What piston size and bleeder screw thread does the FRC11222 caliper have?
The piston measures 65.9 mm (2.594 in) across and the bleeder screw thread is 3/8-24. It is a floating caliper with a cast iron casting.
How can I spot a sticking or leaking front right caliper?
Brake fluid around the piston boot, a pull toward one side while braking, or one pad worn much faster than the other can point to the caliper. A shop can test it if the cause is unclear.
Does FRC11222 replace the 18-P4777 caliper?
Yes. 18-P4777 is on the interchange list for Raybestos Brakes FRC11222, a remanufactured front right caliper. The other cross-reference numbers are on the Interchange line.
