Front Left Brake Caliper for 1997-2001 Ford F-150 & More - Raybestos FRC10674

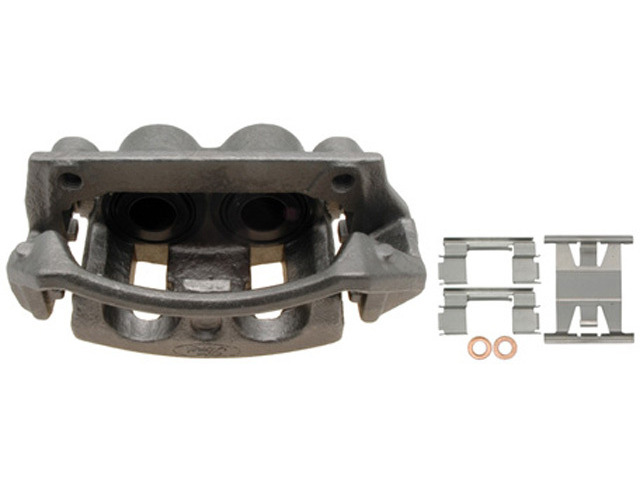

Put fresh seals and boots back at the front left wheel with the Raybestos R-Line FRC10674, a remanufactured Ford F-150 brake caliper and bracket assembly built as a direct-fit replacement for the 1997-2001 Ford F-150 and the 2002 Lincoln Blackwood (all engines). This semi-loaded, floating disc brake caliper comes with its mounting bracket, so the caliper and bracket install together.

• Remanufactured OE core: Raybestos R-Line non-plated calipers start as OE parts. Castings, guide pins and brackets are carefully inspected before reuse, and every caliper is tested for reliable braking performance.
• New sealing parts: seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new materials to help ensure leak-free operation.
• EPDM70 rubber components: chosen for heat resistance, performance and durability. Materials match OE specifications and vehicle-specific designs.
• Pressure tested: every unit is 100% pressure tested.

Specifications: two pistons with a 2.000 in (50.85 mm) piston diameter; cast iron caliper casting (casting number 3727); coated bracket finish; 3/8-24 bleeder screw thread; 14 mm bracket mounting holes with a 2.00 mm thread pitch; dust boots included. Replaces OE part numbers F65Z2B120EA and F75Z2B120BA. Country of origin: Mexico.

The listed applications use one caliper at this position. It is sold individually, and replacing both calipers on the same axle together is recommended for balanced braking. Floating caliper mounting pins use silicone grease. Consult the vehicle service information for the correct fasteners and whether the originals may be reused.

Interchange: 18-B4635 · 99-17868B · 18-B4635S · 18-P4635 · 141.65034 · 142.65034 · 99-17892B · 10-3202S · 14-3202
18B4635 · 9917868B · 18B4635S · 18P4635 · 14165034 · 14265034 · 9917892B · 103202S · 143202 · SC1373
