Rear Left Brake Caliper for 2008-2019 Ford E-350 Super Duty & More - Raybestos FRC12044

$152.99

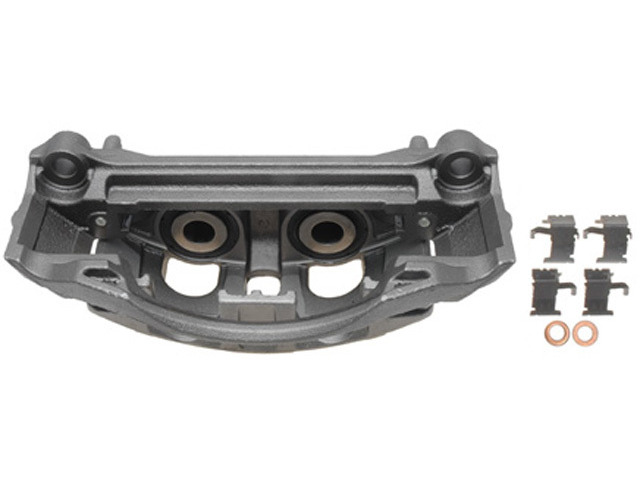

Raybestos Brakes Disc Brake Caliper FRC12044

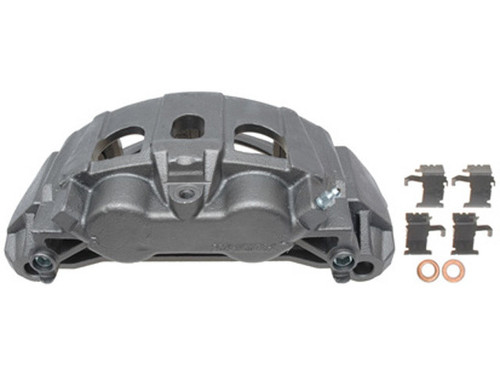

Raybestos Brakes Disc Brake Caliper FRC12044 - view 2

Part number: FRC12044

UPC: 829352699997

Condition: New

Weight: 19.00 LBS

Sold as: 1 per listing

$152.99

Current Stock: 10

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Raybestos Brakes Disc Brake Caliper P/N:FRC12044

$152.99

Description

Raybestos Brakes FRC12044 rear left brake caliper for the 2008-2019 Ford E-350 Super Duty and other vehicles presses the brake pads against the rotor to slow the wheel. It is a remanufactured, semi-loaded disc brake caliper and bracket assembly of the floating type.

Raybestos R-Line non-plated remanufactured caliper
Castings, guide pins and brackets inspected before they are reused
New seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings for leak-free operation
EPDM70 rubber components for heat resistance and durability
100% pressure tested

Quick facts

Part: Raybestos Brakes FRC12044 brake caliper
Also called: disc brake caliper
Fits: the 2008-2019 Ford E-350 Super Duty and other vehicles
Position: Rear left
Material: Cast iron
Condition: Remanufactured

A pull to one side under braking, brake fluid wetness around the caliper or uneven pad wear on one wheel can mean a caliper is sticking or leaking. These signs alone do not prove the caliper is at fault, since a collapsed brake hose can pull the car the same way. Have any brake problem looked at promptly.

Fits

The 2008-2019 Ford E-350 Super Duty, the 2008-2014 Ford E-150 and the 2008-2014 Ford E-250 are among the vehicles this caliper fits. This listing is one caliper for the rear left; the rear right is a separate part, and the two on that axle are normally done at the same time.

Specifications

Fit and size

Position: Rear left
Quantity: 1 per listing
Caliper piston diameter: 47.5 mm (1.87 in)
Bleeder screw thread: M10x1

Build and materials

Type: floating, semi-loaded caliper and bracket assembly
Casting material: Cast iron
Condition: Remanufactured
Country of origin: Mexico

Interchange: 15-13362 · 99-17953B · 18-B5075 · 18-P5075 · 141.65534 · 142.65534 · 10-3362S · 14-3362
SC3027 · SC3057 · 8C2Z2553A · BC2Z2553A

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

15-13362, 99-17953B, 18-B5075, 18-P5075, 141.65534, 142.65534, SC3027, SC3057, 8C2Z2553A, BC2Z2553A, 10-3362S, 14-3362

Buyer's Q&A

Frequently Asked Questions

Is this the right Ford E-250 brake caliper for the 2008-2014 model years?

Yes. Raybestos Brakes FRC12044 is a rear left caliper that fits the 2008-2014 Ford E-250. If your vehicle is not one of those named, look it up in the "Vehicles it fits" section by year and model.

Does the Raybestos R-Line FRC12044 come with the bracket?

Yes. This rear left caliper is a remanufactured semi-loaded caliper and bracket assembly.

What piston size and bleeder thread does this floating caliper have?

The piston on this rear left caliper measures 47.5 mm (1.87 in) across, and the bleeder screw thread is M10x1.

How is this remanufactured caliper tested?

Each caliper is 100% pressure tested. Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new materials for leak-free operation.

Does Raybestos Brakes FRC12044 interchange with 18-B5075?

Yes. 18-B5075 is on the interchange list for Raybestos Brakes FRC12044, along with several other numbers.
