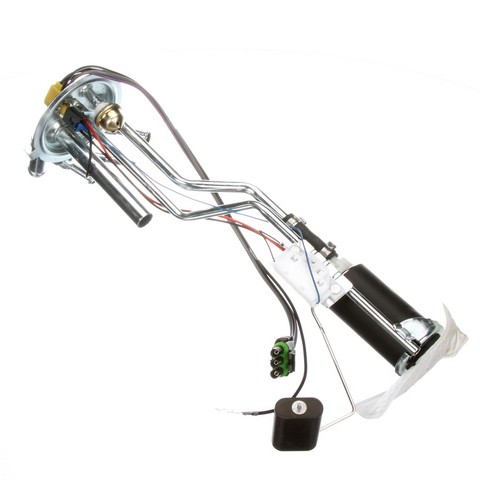

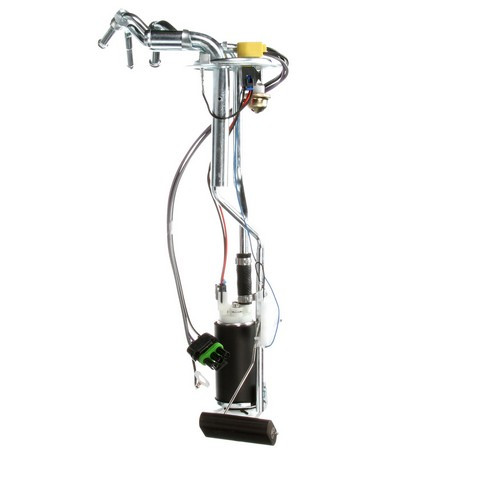

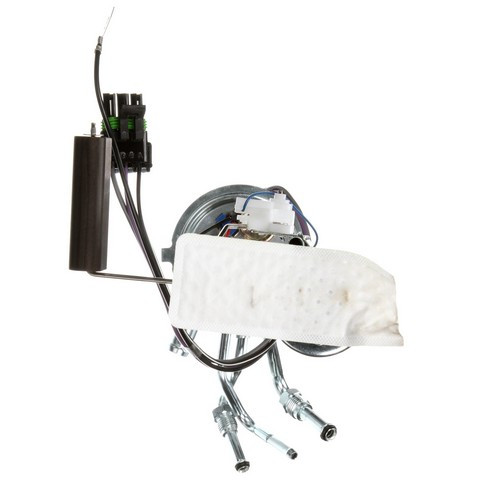

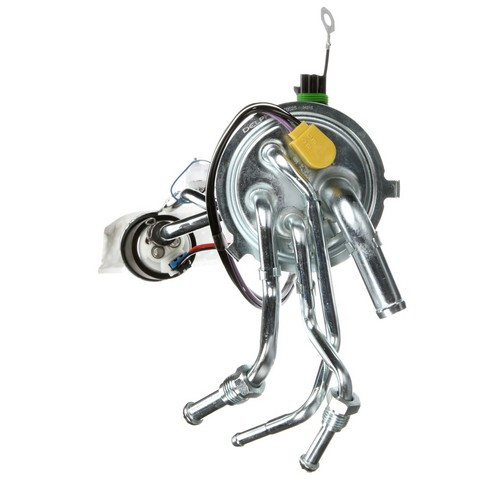

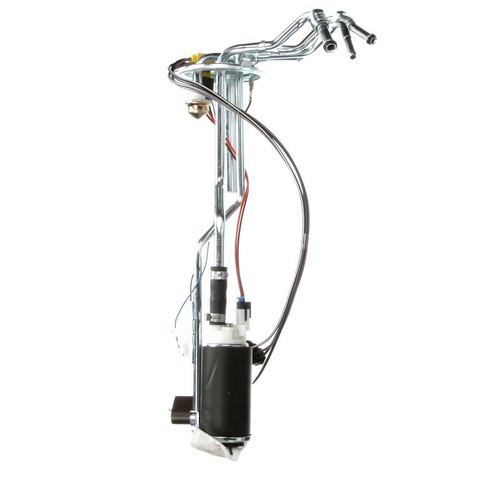

Delphi HP10025 left fuel pump and sender assembly for the 1991-1995 Chevrolet C3500HD V8 5.7L, the 1991-1997 C3500HD V8 7.4L and other vehicles holds the pump in the tank and delivers fuel toward the engine. This Delphi fuel pump hanger assembly is a new part and includes a float arm for the gas gauge.
- The Delphi pump is designed to operate in extreme temperatures with quick engine starts
- Metal tubes are routed clear of the tank at every point to prevent noise and vibration
- Empty float height and float retention are built for correct gas gauge readings
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested, then matched to the right vehicle application
Quick facts
- Part: Delphi HP10025 fuel pump and sender assembly
- Also called: fuel pump hanger assembly
- Fits: the 1991-1995 Chevrolet C3500HD V8 5.7L, the 1991-1997 C3500HD V8 7.4L and other vehicles
- Position: Left
- Condition: New
Hard starting, stalling, sputtering or a gas gauge that reads wrong can mean the pump or float is worn, and other parts in the fuel and electrical system produce some of these signs too. With the key off, look over the fuse, relay and wiring connector for damage before you order; fuel pressure tests are a shop job.
Fits
This left-side assembly also fits the 1991-1995 GMC C3500HD V8 5.7L, the 1991-1997 GMC C3500HD V8 7.4L and the 1990-1996 Chevrolet C3500 V8 5.7L or 7.4L. If your vehicle is not named here, run its year and engine through the "Vehicles it fits" section. This listing is one assembly for the left position, and the 1991-1995 Chevrolet C3500HD V8 5.7L takes one there; a right-side assembly, where a vehicle has one, is a separate part.
Specifications
Fit and size
- Position: Left
- Quantity per vehicle: 1
- Engines: V8-5.7L, V8-7.4L
Build and materials
- Type: fuel pump and sender assembly with float arm
- Condition: New
In the box

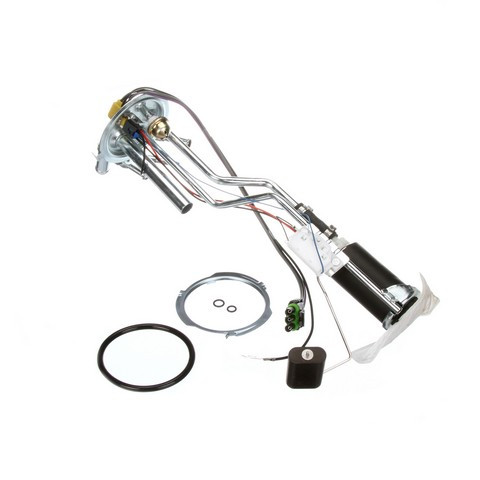

One fuel pump and sender assembly with float arm, one seal, one lock ring, two O-rings and one instruction sheet.
Installation notes
- Follow the included instruction sheet for the steps.
- Check and clean the fuel tank before installing the new assembly.
Interchange: 692-125
25028382 · 25028383 · FLS1013 · 4011212 · 4011318 · DHP10025 · P80002S · 19111394 · A30200 · SP12E2H · SP85B1H · SP85B2H · USEP3623S
This part cross-references / interchanges with the following part numbers:
25028382, 25028383, FLS1013, 4011212, 4011318, DHP10025, P80002S, 692-125, 19111394, A30200, SP12E2H, SP85B1H, SP85B2H, USEP3623S
Frequently Asked Questions
Is Delphi HP10025 the right fuel pump for a 1990-1996 Chevrolet C3500 V8 7.4L?
Yes. Delphi HP10025 is a left fuel pump and sender assembly listed for the 1990-1996 Chevrolet C3500 V8 5.7L or 7.4L.
Does the Delphi fuel pump assembly come with a seal and lock ring?
Yes. This fuel pump and sender assembly comes with the float arm, a seal, a lock ring, two O-rings and an instruction sheet.
Is this Delphi fuel pump replacement made for the left side?
Yes. Delphi HP10025 is a left-position assembly, and the listing is one assembly with its float arm.
Can hard starting mean the Delphi pump is wearing out?
It can be one sign, along with stalling or a wrong gas gauge reading. Each of these can also come from other parts, so a shop can test fuel pressure.
What should I do before installing the Delphi HP10025 fuel pump and sender assembly?
Check and clean the fuel tank first, then follow the instruction sheet that comes with this assembly. The seal, lock ring and two O-rings are included.
