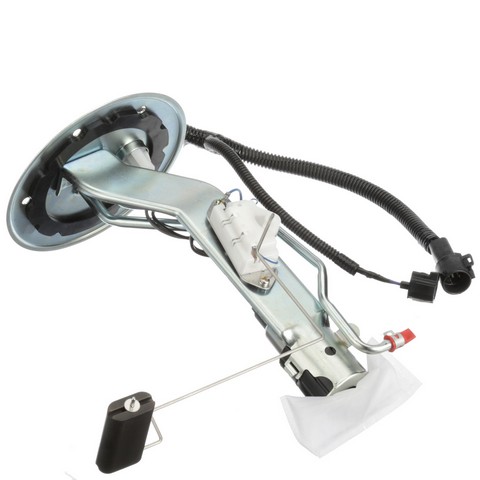

Delphi HP10197 fuel pump and sender assembly for the 1996 Ford Explorer V8 5.0L moves fuel from the tank to the engine. The assembly also carries the float arm that drives the fuel gauge.
- Delphi fuel pump built to Delphi's own standards
- Designed to operate under extreme temperatures with quick engine starts
- Metal tubes routed so they never touch the tank, which eliminates noise and vibration during vehicle operation
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
Quick facts
- Part: Delphi HP10197 fuel pump and sender assembly
- Fits: 1996 Ford Explorer V8 5.0L
Hard starting, stalling or a fuel gauge that does not match the tank level can point to a worn pump or float. Before you replace this assembly, rule out a blown fuel pump fuse, a bad relay or a clogged fuel filter, since each of those can produce hard starting or stalling on its own.
Fits
This fuel pump and sender assembly fits the 1996 Ford Explorer V8 5.0L, and that vehicle takes one.
Specifications
- Quantity per vehicle: 1
- Float arm: included
In the box

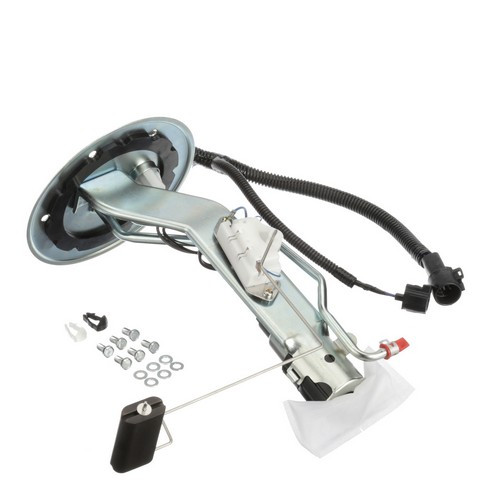

One fuel pump and sender assembly with float arm, six bolts, six washers, two retainer clips and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the assembly.
- An instruction sheet comes with the part.
Interchange: 950-0137 · 951-0016 · F67Z 9H307-CA · F67Z 9H307-CB · PFS-44
4011128 · 4017382 · E2381S · E2471 · DHP10197 · P74159 · P77411H · E16006 · SP1113 · SP2537H · USEP2381S
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
4011128, 4017382, E2381S, E2471, DHP10197, P74159, P77411H, 950-0137, 951-0016, F67Z 9H307-CA, F67Z 9H307-CB, PFS-44, E16006, SP1113, SP2537H, USEP2381S
Frequently Asked Questions
Will Delphi HP10197 work as a fuel pump for the 1996 Ford Explorer V8 5.0L?
Yes. Delphi HP10197 is listed for the 1996 Ford Explorer V8 5.0L, and that vehicle takes one.
Does the Delphi HP10197 fuel pump and sender assembly come with a float arm and bolts?
Yes. Delphi HP10197 includes the float arm, six bolts, six washers, two retainer clips and an instruction sheet.
Will the float on this fuel pump and sender assembly give a correct gas gauge reading?
This assembly's empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
Do I need to clean the tank before installing this Delphi fuel pump assembly?
Yes. Check and clean the fuel tank before installing the new assembly. An instruction sheet comes with the part.
Is this Delphi Technologies fuel pump the same as DHP10197?
Delphi HP10197 is cross-referenced to DHP10197, along with 950-0137 and 951-0016.
