Heater Hose for 2004-2009 Cadillac SRX & More - Gates 23132

$262.99

Vehicles this part fits

    Part number: 23132
    UPC: 770075295341
    Condition: New
    Weight: 2.23 LBS
    Item Package Quantity: 1
    $262.99
    Adding to cart… The item has been added

    Have questions?

    Gates HVAC Heater Hose P/N:23132
    Gates HVAC Heater Hose P/N:23132
    $262.99
    $262.99

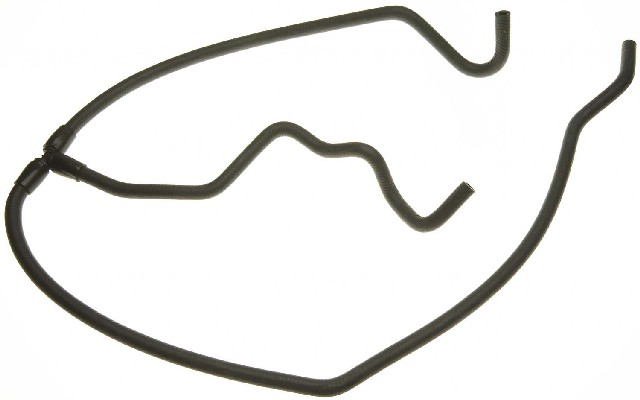

    Gates 23132 heater hose for the 2004-2009 Cadillac SRX V6 3.6L and other vehicles carries engine coolant between the reservoir and the tee. Sold as an HVAC heater hose, it is a molded, modular design with one branch already built in.

    • Gates Modular Coolant Hose, made for specific applications, with one integrated branch
    • Specifically-engineered materials resist collapse under vacuum
    • Engineered to resist electrochemical degradation, the leading cause of hose failure
    • EPDM tube with synthetic fiber knit reinforcement and a heat-, ozone- and chemical coolant-resistant EPDM cover
    • Meets SAE 20R3 EC Class D1 under 25 mm (1 in.) ID
    • Temperature range of -40 °F to +257 °F (-40 °C to +125 °C)

    Quick facts

    • Part: Gates 23132 heater hose
    • Also called: HVAC heater hose
    • Fits: 2004-2009 Cadillac SRX V6 3.6L and other vehicles
    • Position: Reservoir to tee
    • Material: EPDM, plastic
    • Condition: New

    Coolant seepage at the hose ends, cracks or a soft, swollen cover can mean this hose is worn, though a loose clamp or a leaking heater core can be behind the same signs. If the hose is the cause, this one replaces it.

    Fits

    It fits the 2004-2009 Cadillac SRX V6 3.6L and the 2005-2007 Cadillac STS V6 3.6L.

    Specifications

    Fit and size

    • Position: reservoir to tee
    • Centerline length: 60.1 in (1527 mm)
    • Inside diameter, ends 1 and 2: 0.32 in (8 mm)
    • Inside diameter, end 3: 0.32 in
    • Branch quantity: 1
    • Quick-connect fittings: 0
    • Quantity per vehicle: 1

    Build and materials

    • Material: EPDM, plastic
    • Construction: molded, modular
    • Contains spring: no
    • Condition: new
    • Country of origin: United States

    In the box

    One heater hose with its branch built in, and the car takes one.

    Installation notes

    • Replace the clamps each time a new heater hose is installed.
    • Not for fuel or oil transfer applications.

    Interchange: 26546X · 64353 · E91048 · 15874733 · 19130184 · 25766013 · 88958088 · 9793

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    26546X, 23132, 64353, E91048, 15874733, 19130184, 25766013, 88958088, 9793

    Frequently Asked Questions

    Does the Gates 23132 heater hose fit the 2005-2007 Cadillac STS V6 3.6L?

    Yes. Gates 23132 fits the 2005-2007 Cadillac STS V6 3.6L, and it also fits the 2004-2009 Cadillac SRX V6 3.6L.

    Is this Gates molded heater hose reinforced?

    Yes. Gates 23132 has an EPDM tube with synthetic fiber knit reinforcement and a heat-, ozone- and chemical coolant-resistant EPDM cover.

    Does this heater hose come with the branch already built in?

    Yes. This heater hose is a modular design with one branch included, and it has no quick-connect fittings.

    How long is the Gates 23132 hose and what is its inside diameter?

    The centerline length is 60.1 in (1527 mm). The inside diameter is 0.32 in (8 mm) at ends 1 and 2.

    Should I reuse the old clamps when installing this heater hose?

    No. Replace the clamps each time a new heater hose is installed. This hose is for coolant only, not for fuel or oil transfer.
