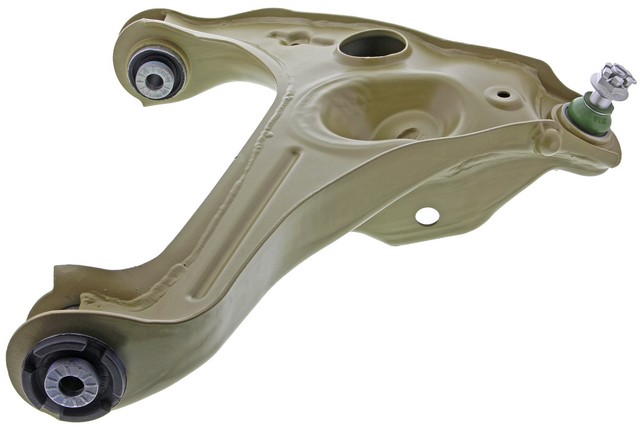

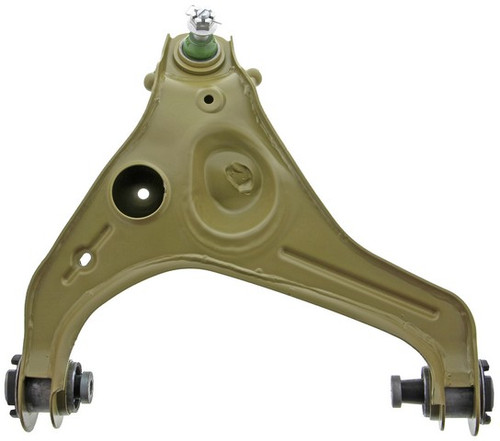

Mevotech TTX CTXMS40171 front right lower control arm with ball joint for the 2009-2013 Ford F-150 and other vehicles links the wheel to the frame. This control arm and ball joint assembly comes with its bushings and ball joint included.
- Part of the Mevotech TTX line, with Labor Saver designs and hardware for faster installation
- Patented sintered bearings for longer-lasting performance
- Integri-Boot design built into the ball joint assembly to lock out moisture and contaminants
- Rubber bushings with knurling that secures the control arm bushing to the sub-frame
- Stamped steel construction
- Repel-TEK surface treatment to prevent rust build-up
Quick facts
- Part: Mevotech TTX CTXMS40171 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2009-2013 Ford F-150 and other vehicles
- Position: Front right lower
- Material: Steel
- Condition: New
A worn ball joint or bushing can show up as a clunk over bumps, loose steering or uneven tire wear. Before you replace the arm, rule out the tie rod ends, sway bar links and shocks, which can make similar noises.
Fits
Use it as the control arm for the 2007-2013 Ford Expedition, the 2007-2013 Lincoln Navigator or the 2009-2013 Ford F-150; each takes one on the front right. This listing is one arm for the front right; the front left is a separate part, and both sides are normally replaced together.
Specifications
Fit and size
- Position: front right lower
- Quantity per vehicle: 1 (this side)
- Maximum width: 22.5 in
- Maximum length: 20.0 in
- Ball joint mounting type: press in
- Ball joint stud type: threaded
Build and materials
- Control arm material: steel
- Bushings: rubber, included
- Bearing material: sintered metal
- Surface treatment: Repel-TEK
- Pre-greased and greaseable
- Condition: new
- Country of origin: China
In the box
One control arm with ball joint and bushings, mounting hardware, a slotted castle nut, a snap cotter pin and a 90 degree SAE grease fitting.
Installation notes
- The ball joint is secured to the vehicle with the part-specific slotted castle nut and snap cotter pin.
- The ball joint flange is thicker and stronger to prevent deformation during installation.
- Fasteners come with pre-applied nylok thread adhesive.
Interchange: 622.61055 · 522-214
19425960 · TC6357 · TC6555 · CB85274 · CB85274PR · CA18079 · GCA18079 · 7L1Z3078A · 9L3Z3078A · MCSOE110 · CAK620220 · CK621266 · K620220 · RK620220 · RK621266 · FA3608 · 5072017 · X15CJ0366 · TK621266
This part cross-references / interchanges with the following part numbers:
19425960, 622.61055, TC6357, TC6555, 522-214, CB85274, CB85274PR, CA18079, GCA18079, 7L1Z3078A, 9L3Z3078A, MCSOE110, CAK620220, CK621266, K620220, RK620220, RK621266, FA3608, CTXMS40171, 5072017, X15CJ0366, TK621266
