Coolant Temperature Sensor for 2004-2012 Chevrolet Colorado & More - NTK EF0174

$35.99
WARNING:California Proposition 65▾
NTK Engine Coolant Temperature Sensor EF0174
NTK Engine Coolant Temperature Sensor EF0174 - view 2
NTK Engine Coolant Temperature Sensor EF0174 - view 3
NTK Engine Coolant Temperature Sensor EF0174
NTK Engine Coolant Temperature Sensor EF0174 - view 2
NTK Engine Coolant Temperature Sensor EF0174 - view 3

Vehicles this part fits
    Part number: EF0174
    UPC: 087295739303
    Condition: New
    Weight: 0.10 LBS
    Item Package Quantity: 1
    $35.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    NTK Engine Coolant Temperature Sensor P/N:EF0174
    NTK Engine Coolant Temperature Sensor P/N:EF0174
    $35.99
    $35.99

    Give your engine computer an accurate read on coolant temperature with the NTK Engine Coolant Temperature Sensor EF0174, an NTK sensor with wires and probe length matched to OE. It fits many vehicles, among them the 2004-2012 Chevrolet Colorado 2.8L / 2.9L / 3.5L / 3.7L, 2004-2012 GMC Canyon 2.8L / 2.9L / 3.5L / 3.7L and 2006-2009 Chevrolet Trailblazer 4.2L; see the "Vehicles it fits" section for the full list.

    The sensor measures the temperature of the engine coolant and sends an analog signal to the ECM. The ECM uses that signal for proper air/fuel ratio and to run the cooling fan(s) and temperature gauge.

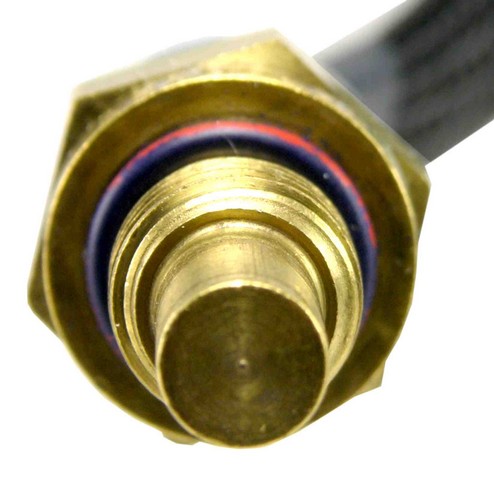

    • OE matched: Wires and probe length match OE. Thermistor placement within the housing also matches OE and is designed for proper output.
    • Faster response time: Thermal conductive grease inside the brass housing increases sensor response time and provides accurate temperature transfer to the thermistor.
    • Seal included: Ships with a gasket or seal. Thread sealer, mounting hardware, a mounting bracket and a wiring harness are not included.

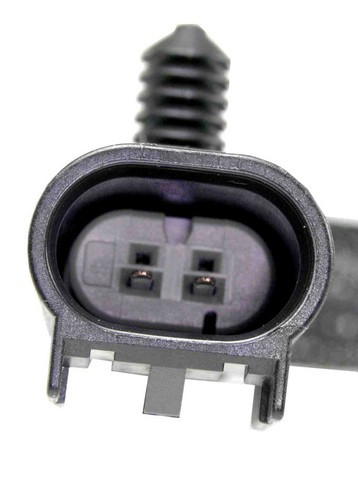

    • Specs: Threaded mounting, 15 mm head tool size, two male blade terminals in a single oblong female connector, black and gold color. Country of origin: Mexico.

    Signs this sensor may need replacing include check engine light illumination, an erratic or dead temperature gauge, erratic or no cooling fan operation, and engine overheating. These symptoms can have other causes, so diagnose before replacing. The listed applications use one sensor, and this package contains one.

    This part cross-references / interchanges with the following part numbers:

    213-1651, 213-3526, 213-3943, 213-4125, 213-4233, WT5149, TS5748, TS5749, 12573332, 12583127, 12586299, 12590959, 12601050, 12606657, 12609558, TX136

    Frequently Asked Questions

    What does the NTK EF0174 coolant temperature sensor do?

    It measures engine coolant temperature and sends an analog signal to the ECM. The ECM uses that signal for air/fuel ratio control and to operate the cooling fan(s) and temperature gauge.

    What are signs the coolant temperature sensor may need replacing?

    Possible signs include a check engine light, erratic or no temperature gauge reading, erratic or no cooling fan operation, and engine overheating. These can have other causes, so diagnose before replacing.

    Does the EF0174 come with a seal?

    Yes, a gasket or seal is included. Thread sealer, mounting hardware, a mounting bracket and a wiring harness are not included.

    Which vehicles does the EF0174 fit?

    It fits many vehicles, among them the 2004-2012 Chevrolet Colorado 2.8L / 2.9L / 3.5L / 3.7L, 2004-2012 GMC Canyon 2.8L / 2.9L / 3.5L / 3.7L and 2006-2009 Chevrolet Trailblazer 4.2L. See the "Vehicles it fits" section for the full list.

    Where is the engine coolant temperature sensor located?

    Depending on the vehicle, it may be on the cylinder head, engine block, thermostat housing or intake manifold. It uses threaded mounting with a 15 mm head tool size.

    Published by the manufacturer of this part. Links open in a new tab.
