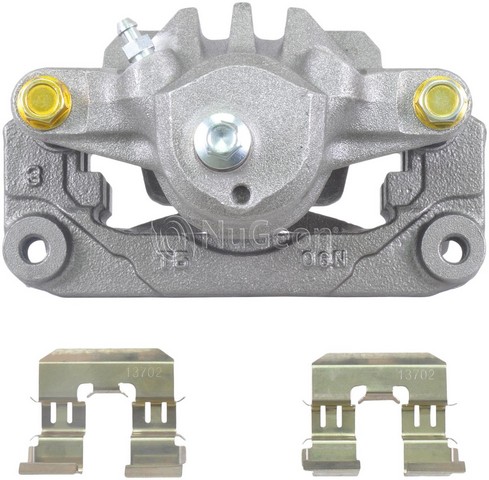

Nugeon 99-01340A rear right brake caliper for the 2010-2014 Subaru Outback and other vehicles is a remanufactured caliper that presses the brake pads against the rotor. Also listed as a disc brake caliper, it turns brake fluid pressure into clamping force at the rear right wheel.
- Floating caliper with one steel piston, 38.07 mm outside diameter
- Aluminum caliper casting with a rust-preventative finish
- Banjo inlet fitting with an M10-1.0 x 23.4 inlet port thread
- Bleeder screw with an M10-1.0 thread
Quick facts
- Part: Nugeon 99-01340A brake caliper
- Also called: disc brake caliper
- Fits: 2010-2014 Subaru Outback and other vehicles
- Position: Rear right
- Material: Aluminum
- Condition: Remanufactured
Uneven pad wear, the car pulling to one side under braking, or brake fluid around the caliper can point to a problem at this wheel. Worn pads, a worn rotor or a damaged brake hose can be behind those signs too, so find out which part is at fault before you buy.
Fits
Use it as a brake caliper replacement for the 2010-2014 Subaru Outback or the 2010-2014 Subaru Legacy, on the rear right side. The rear axle takes one caliper per side; this listing is the rear right, the rear left is a separate part ordered separately, and the two are normally replaced together.
Specifications
Fit and size
- Position: rear right
- Quantity: 1 (this side only)
- Piston outside diameter: 38.07 mm (1.5 in)
- Piston quantity: 1
- Inlet fitting: banjo
- Inlet port thread: M10-1.0 x 23.4 mm
- Bleeder screw thread: M10-1.0
Build and materials
- Type: floating caliper
- Condition: remanufactured
- Caliper casting: aluminum
- Piston material: steel
- Finish: rust preventative
- Country of origin: Mexico
In the box
One remanufactured rear right brake caliper with its bracket, slides, dust boots, caliper and pad hardware, bleeder screw and crush washers. Brake pads, anti-squeal shims, wear sensors, a bleeder screw cap and the bracket mounting bolts are not included; plan on new bracket bolts, since the old ones may not be reusable.
Frequently Asked Questions
Is the 99-01340A a caliper for the 2010-2014 Subaru Outback?
Yes. Nugeon 99-01340A fits the rear right of the 2010-2014 Subaru Outback and the 2010-2014 Subaru Legacy. The rear left takes a separate caliper.
Does this Nugeon brake caliper come with pads and bracket bolts?
No. It comes with the bracket, slides, dust boots, hardware and bleeder screw, but not pads, anti-squeal shims, wear sensors or bracket mounting bolts.
What size is the piston on the Nugeon caliper?
Nugeon 99-01340A has one steel piston, 38.07 mm (1.5 in) in outside diameter, in a floating aluminum caliper body.
How would I notice a sticking rear right caliper?
A sticking caliper can show up as a dragging or grinding noise from that wheel, a burning smell after a drive, or the car drifting when you brake. A shop can confirm the cause.
What inlet fitting does this rear caliper use for the brake line?
This rear caliper has a banjo inlet fitting with an M10-1.0 x 23.4 inlet port thread. The crush washers are included.
