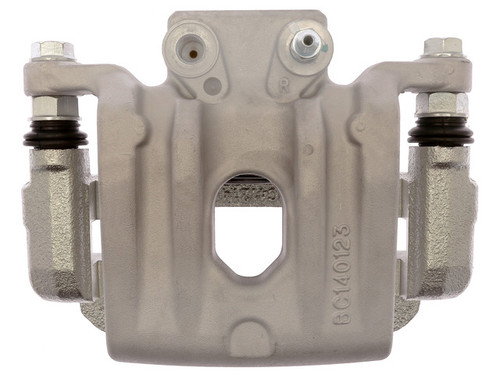

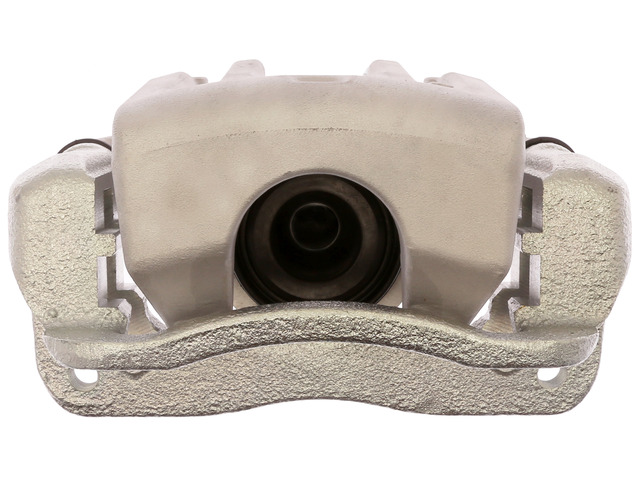

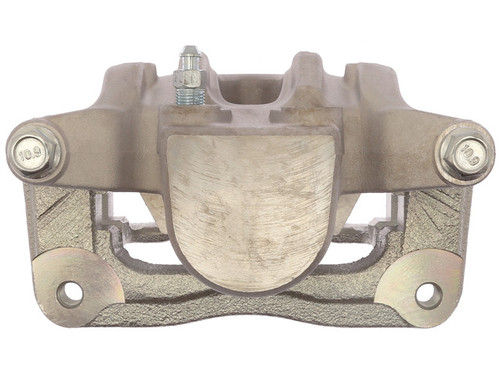

Clamp the brake pads against the rotor with the Raybestos Brakes Element3 New Semi-Loaded Disc Brake Caliper and Bracket Assembly, MPN FRC12581N. This is the rear right caliper-and-bracket assembly and drops in as a direct-fit replacement for the 2010-2012 Hyundai Santa Fe [All] and 2011-2013 Kia Sorento [All]. The Element3 line is precision engineered to meet OE performance and durability across popular, high-replacement applications.
- Floating caliper design: the housing slides on its mounts so the piston presses both pads evenly against the rotor.
- Aluminum casting: the plated/aluminum casting provides superior corrosion prevention.
- 96-hour salt spray: surface finish meets the ASTM B-117 salt-spray corrosion-resistance test standard.
- 100% new components: newly manufactured, not remanufactured.
Specs: floating caliper type, caliper piston diameter 1.681 in (42.7 mm), M10x1 bleeder screw thread, and a bracket mounting hole size of 10.000 mm at a 1.250 mm thread pitch. If a seized, leaking, or corroded original rear right caliper is the cause of dragging, pulling, or a soft pedal, this assembly replaces it; diagnose the cause before replacing. Sold individually as one assembly; replacing the opposite side caliper at the same time is a good practice for balanced braking. Country of origin: China.
Interchange: 99-00864B · 9900864B · 19-B6270 · 19B6270 · 19-P6270 · 19P6270 · 141.51645 · 14151645 · SC2472 · 583110WA00 · 99-00864A · 9900864A · Manufacturer part number FRC12581N.
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Which vehicles does this caliper fit?
It is a direct-fit replacement for the 2010-2012 Hyundai Santa Fe [All] and the 2011-2013 Kia Sorento [All]. See the Buyer's Guide tab to confirm the fit for your vehicle.
What position is this caliper for?
The catalog lists it as the rear right (passenger-side) disc brake caliper and bracket assembly for the covered applications.
Is the mounting bracket included?
Yes. This is a semi-loaded caliper and bracket assembly, so the caliper and its mounting bracket are included. Brake pads are not part of a semi-loaded caliper.
What is the piston diameter and bleeder thread?
The caliper piston diameter is 1.681 in (42.7 mm) and the bleeder screw thread is M10x1. The bracket mounting hole is 10.000 mm with a 1.250 mm thread pitch.
Should I replace both rear calipers at once?
It is sold individually as one assembly. Replacing the opposite-side caliper at the same time is a good practice for even, balanced braking, but is not required.
