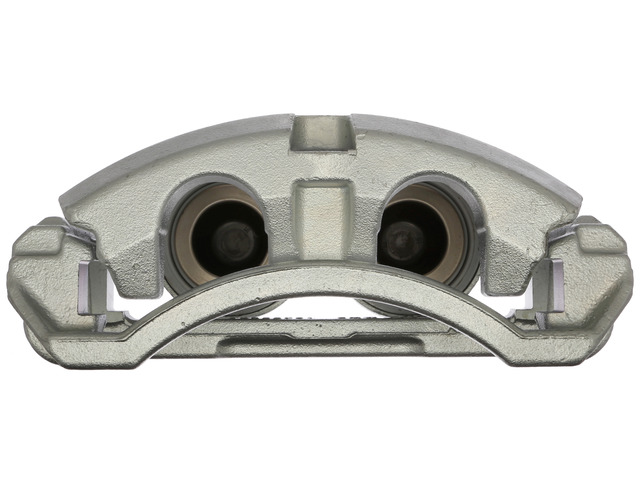

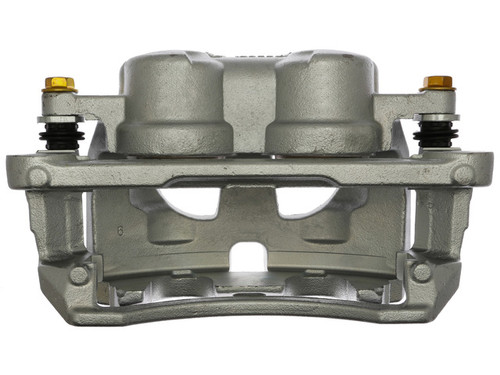

Replace a sticking or leaking front left caliper, its bracket and its friction material in one step with the Raybestos R-Line Remanufactured Loaded Coated Caliper and Bracket Assembly, MPN RC12276C. It fits many vehicles, among them the 2012 Ram 1500, 2011-2018 Ram 2500 and 2009-2010 Dodge Ram 2500 (all engines), as a direct-fit replacement for the listed applications. See the Buyer's Guide tab for the full list.
- Caliper and bracket assembly: this remanufactured R-Line disc brake caliper comes with its mounting bracket already paired, so both are replaced together.
- Loaded and coated: supplied with metallic friction material, and the caliper is coated.
- Floating caliper, cast iron casting: a floating-type caliper with a 2.358 in (59.9 mm) piston diameter.
- Service specs: M10x1 bleeder screw thread; bracket mounting holes of 16.000 mm with a 2.500 mm thread pitch.
A brake caliper clamps the brake pads against the rotor when you press the pedal. Signs a caliper may need replacing include the vehicle pulling to one side, a brake that drags, uneven pad wear or brake fluid leaking at the caliper. Diagnose the cause first. If the original caliper has failed, this assembly replaces it.
This unit is for the front left position, and the listed applications use one. It is sold individually, and replacing both front calipers together is recommended for balanced braking. Country of origin: Mexico.
Interchange: 18-B5173 · 99-17752B · 99-17753A · 18-P5173 · 141.67062 · 142.67062
SC2045 · 18B5173 · 9917752B · 9917753A · 18P5173 · 14167062 · 14267062
This part cross-references / interchanges with the following part numbers:
18-B5173, 99-17752B, 99-17753A, 18-P5173, 141.67062, 142.67062, SC2045
