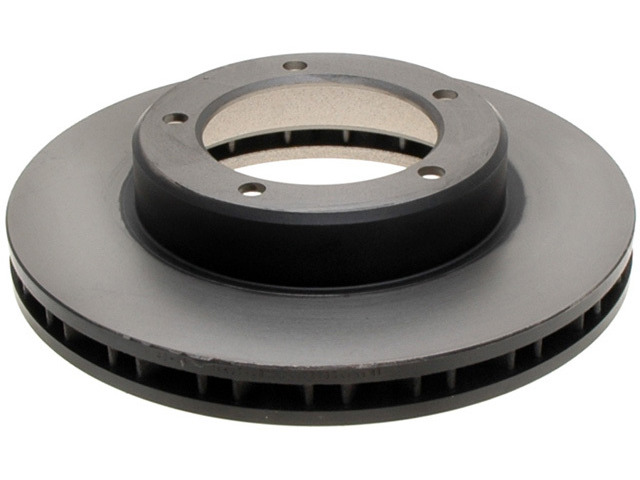

Raybestos Brakes Disc Brake Rotor P/N:96797

Built to help keep brake noise and heat in check, the Raybestos Specialty Truck Disc Brake Rotor 96797 is a front rotor for the 1998-2007 Toyota Land Cruiser and 1998-2007 Lexus LX470. It is a direct-fit replacement for the listed applications, all engines. Raybestos designs its Specialty line for noise-prone truck, medium-duty and air-disc applications, pairing vehicle-specific cooling vane configurations with application-specific iron to help damp noise, extend service life and speed up brake jobs.

• OE fit, form and function: The vehicle-specific design matches the original rotor's fit, form and function for strength and performance.
• Cooling vanes: This vented rotor's vanes are matched to OE designs to support cooling, reduced fade, less noise and longer pad life.
• Coating: New Specialty rotors come either fully coated with Grey Fusion 4.0®, rated at 300 hours of salt spray, or with a Black Fusion painted hat and edge for rust protection.
• Turned finish: The pads engage a turned surface, designed for a smooth, effective stop right out of the box.

Raybestos builds these rotors to SAE standards for tensile strength, hardness and iron grade. This conventional (not drum-in-hat) rotor measures 12.32 in (312.95 mm) in outside diameter and 2.745 in (69.7 mm) in overall height. It has a nominal thickness of 1.26 in (32 mm) and a discard thickness of 1.181 in (30 mm). It has five lug holes on a 5.669 in (144 mm) bolt circle and a 4.53 in (115.05 mm) center hole. An ABS tone ring is not included.

The listed applications use two front rotors. This listing is for one rotor, and replacing both sides together as a matched pair is recommended for even, balanced braking. Country of origin: China.
