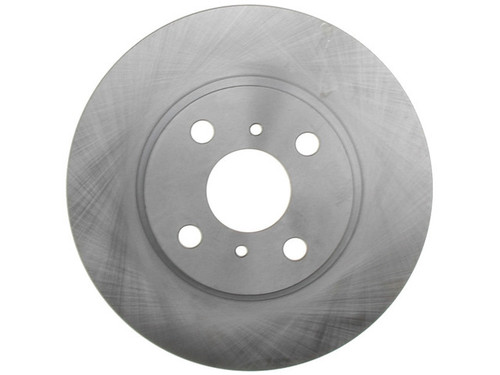

Bring smooth, quiet stops back to your Scion with the Raybestos R-Line Disc Brake Rotor (P/N 980201R). This front, solid (non-vented) cast-iron rotor fits the 2004-2006 Scion xA [All] and 2004-2006 Scion xB [All], and is built for everyday driving with OE fit, form, and function.
- OE fit, form, and function: developed from OE samples and made with G3000-qualified material for dependable braking.
- Meets the SAE standard for tensile strength: for structural integrity and service life.
- Low lateral runout and thickness variation: designed to reduce pedal pulsation and brake noise while helping extend pad life.
- Mill-balanced edges, 100% validated: helps minimize thickness variation and vibration for smoother stopping.
Specifications: 255 mm (10.04 in) outside diameter, 55.1 mm (2.17 in) center hole, 4 stud/lug holes, non-directional braking surface, conventional design, nominal thickness 21.95 mm (0.865 in), discard thickness 20 mm (0.787 in). The ABS tone ring is not included. Sold individually; the front axle uses two, so order two and replace both sides together as a matched set for even, balanced braking. Country of origin: China.
Manufacturer part number 980201R
Frequently Asked Questions
Will this rotor fit my vehicle?
It is a direct-fit front rotor for the 2004-2006 Scion xA [All] and 2004-2006 Scion xB [All]. Check the Buyer's Guide tab to confirm your exact vehicle.
Is this a solid or vented rotor?
It is a solid (non-vented) rotor made of cast iron with a non-directional braking surface.
How many rotors do I need?
It is sold individually. The front axle uses two, so order two and replace both sides together as a matched set for even braking.
Does it include an ABS tone ring?
No. Per the catalog, the ABS tone ring is not included with this rotor.
What are the thickness specs?
Nominal thickness is 21.95 mm (0.865 in) and the discard (minimum) thickness is 20 mm (0.787 in).
