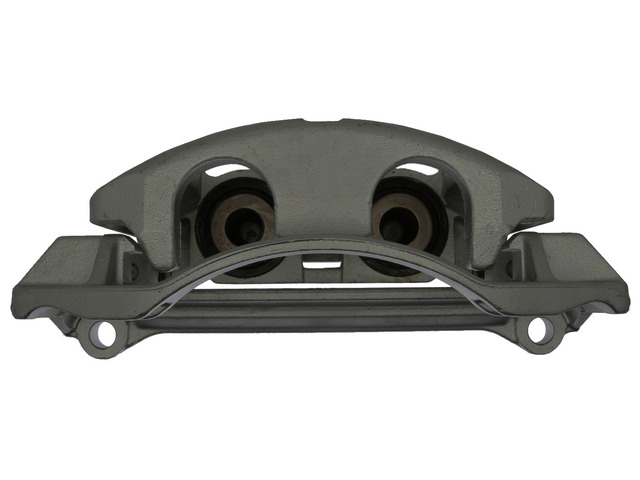

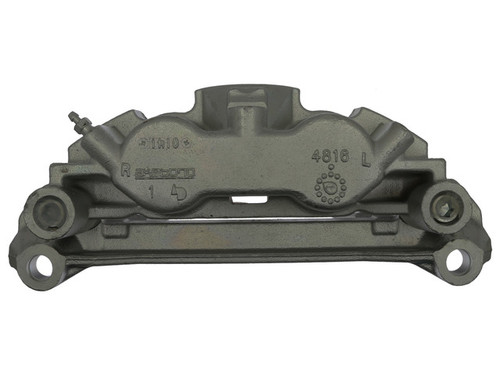

Raybestos Brakes FRC12465 rear right brake caliper for the 2016-2019 Chevrolet Suburban and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured, semi-loaded disc brake caliper and bracket assembly is a floating design.
- Raybestos R-Line non-plated caliper remanufactured with all new rubber and sealing components
- Castings, guide pins and brackets are inspected before being reused

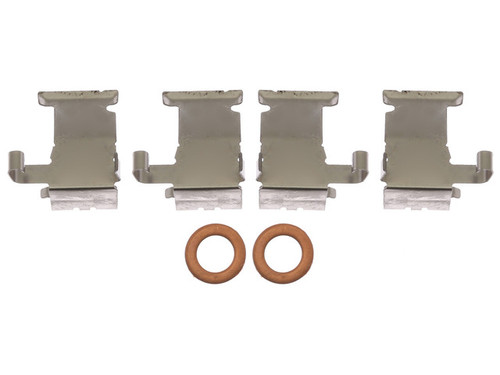

- New seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings for leak-free operation
- EPDM70 rubber components for heat resistance and durability
- Each caliper is 100% pressure tested
Quick facts
- Part: Raybestos Brakes FRC12465 brake caliper
- Also called: disc brake caliper
- Fits: 2016-2019 Chevrolet Suburban and other vehicles
- Position: Rear right
- Material: Cast iron
- Condition: Remanufactured
Brake fluid around the caliper boot, a vehicle that pulls to one side or a wheel that stays hot after a drive can mean a caliper is leaking or sticking. Those signs alone do not prove the caliper is the problem; a collapsed brake hose, for example, can also leave a wheel dragging.
Fits
This brake caliper for the 2011-2019 Chevrolet Silverado 2500 HD also fits the 2011-2019 Chevrolet Silverado 3500 HD and the 2016-2019 Chevrolet Suburban, among other vehicles. To check your exact model and engine, open the "Vehicles it fits" section. The 2016-2019 Chevrolet Suburban takes one caliper at the rear right, so the rear left is ordered separately, and the pair is normally replaced together.
Specifications
Fit and size
- Position: Rear right
- Quantity per application: 1
- Piston diameter: 47.5 mm (1.87 in)
- Bleeder screw thread: M10x1
Build and materials
- Caliper type: Floating
- Construction: Semi-loaded caliper and bracket assembly
- Casting material: Cast iron
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One rear right caliper and bracket assembly.
Interchange: 18-B5306 · 99-17444A · 18-P5331 · 141.66537 · 142.66537 · 11-26066-1
SC3136 · 20909266
This part cross-references / interchanges with the following part numbers:
18-B5306, 99-17444A, 18-P5331, 141.66537, 142.66537, SC3136, 20909266, 11-26066-1
Frequently Asked Questions
Is the FRC12465 a Suburban brake caliper for the rear right of a 2016-2019 Chevrolet Suburban?
Yes. Raybestos Brakes FRC12465 is the rear right caliper for the 2016-2019 Chevrolet Suburban. Open the "Vehicles it fits" section to check your exact model and engine.
What is the piston diameter of the Raybestos Brakes FRC12465 caliper?
The piston diameter is 47.5 mm (1.87 in). This is a floating caliper with an M10x1 bleeder screw thread.
Are the seals and boots new on this remanufactured rear caliper?
Yes. Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new parts, while castings, guide pins and brackets are inspected before reuse.
How do I tell if a rear right brake caliper is sticking?
One pad wearing faster than the other, a burning smell after driving or a wheel that runs hot can be signs of a sticking caliper. A shop can test it before you replace it.
Can I use FRC12465 in place of caliper number 18-B5306?
Yes. 18-B5306 is one of the interchange numbers listed for Raybestos Brakes FRC12465, along with 99-17444A and 20909266.
