Raybestos Brakes Disc Brake Caliper FRC12466

Raybestos Brakes Disc Brake Caliper FRC12466 - view 2

Raybestos Brakes Disc Brake Caliper FRC12466 - view 3

Raybestos Brakes Disc Brake Caliper FRC12466 - view 4

Raybestos Brakes Disc Brake Caliper FRC12466 - view 5

Raybestos Brakes Disc Brake Caliper P/N:FRC12466

Be the first to review this product

$86.99

MPN: FRC12466

UPC: 887213030860

Item Package Quantity: 1

Current Stock:

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Raybestos Brakes Disc Brake Caliper P/N:FRC12466

$86.99

Description

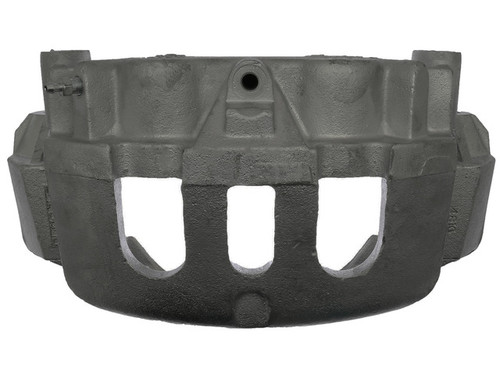

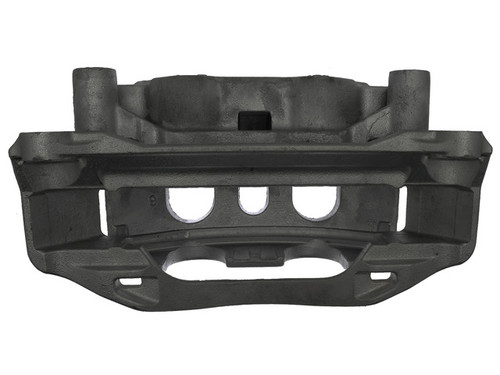

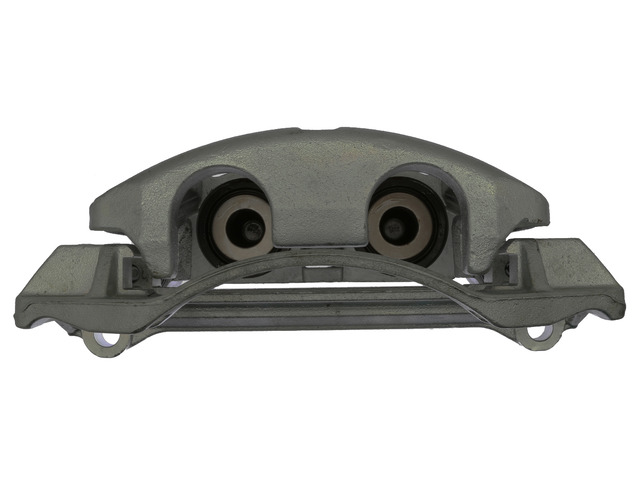

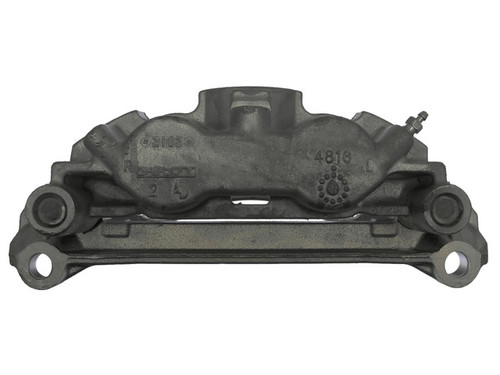

Clamp down with confidence using the Raybestos Brakes R-Line Remanufactured Semi-Loaded Disc Brake Caliper and Bracket Assembly FRC12466 — a rear left Suburban brake caliper that installs as a direct-fit replacement for the 2016-2019 Chevrolet Suburban and Suburban 3500 HD, the 2011-2019 Chevrolet Silverado 2500 HD and Silverado 3500 HD, and the 2011-2019 GMC Sierra 2500 HD and Sierra 3500 HD (all engines).

This floating-type caliper houses a 1.87 in (47.5 mm) piston that hydraulically presses the brake pads against the rotor, with a cast iron casting and an M10x1 bleeder screw. It is remanufactured from an OE core using all-new rubber and sealing components.

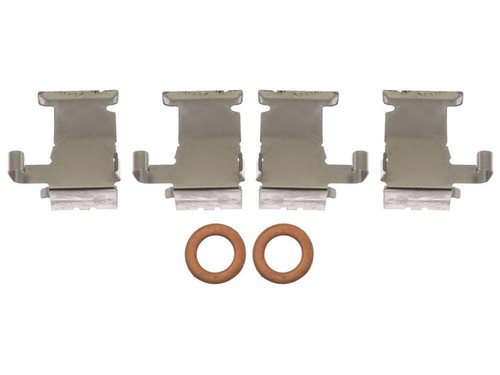

New sealing parts: seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings are replaced with new for leak-free operation.
EPDM70 rubber components: for heat resistance, performance, and durability; silicone boots used on heavy-duty applications where applicable.
Tested & matched: 100% pressure tested, with materials matching OE specifications.
Inspected carryover parts: castings, guide pins, and brackets are carefully inspected before being re-used.

Country of origin: Mexico.

Interchange: 18-B5307 · 99-17444B · 18-P5330 · 141.66538 · 142.66538
18B5307 · 9917444B · 18P5330 · 14166538 · 14266538 · SC3135 · 20909265

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

This part cross-references / interchanges with the following part numbers:

18-B5307, 99-17444B, 18-P5330, 141.66538, 142.66538, SC3135, 20909265

Frequently Asked Questions

Does this fit a Chevrolet Silverado 2500 Hd brake caliper application?

Yes. FRC12466 is listed as the rear left caliper and bracket assembly for the 2011-2019 Chevrolet Silverado 2500 HD, along with the other listed Silverado, Sierra, and Suburban applications.

What position on the vehicle does this caliper fit?

It is cataloged as the rear left disc brake caliper and bracket assembly for the listed applications.

Is this caliper new or remanufactured?

It is a remanufactured R-Line unit rebuilt from an OE core, using all-new seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings, with castings, guide pins, and brackets inspected before re-use.

What is the caliper piston diameter?

The caliper uses a 1.87 in (47.5 mm) piston. It is a floating-type caliper with a cast iron casting and an M10x1 bleeder screw thread.

Are new sealing components included?

Yes. To support leak-free operation, the seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings are replaced with new EPDM70 rubber components, and each unit is 100% pressure tested.
