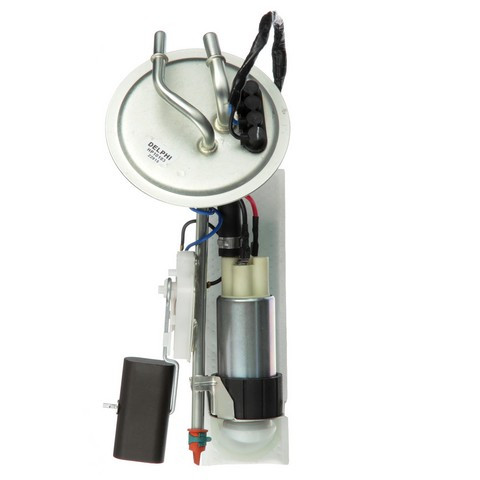

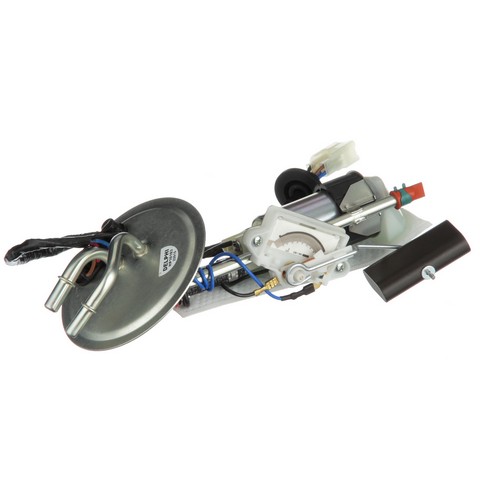

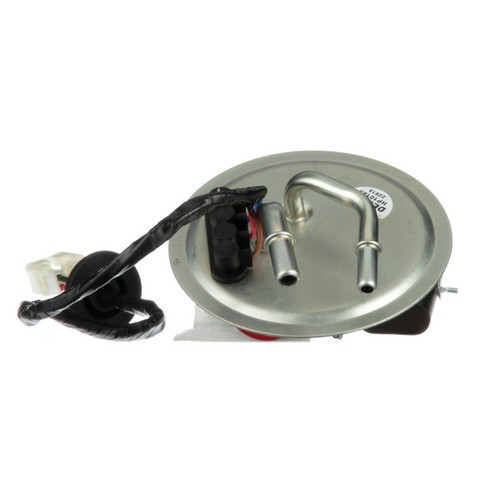

Delphi HP10183 fuel pump and sender assembly for the 1991-1996 Ford Escort 4-cylinder 1.8L or 1.9L and other vehicles moves fuel from the tank to the engine. This Delphi fuel pump is built to Delphi's OE standards, and the hanger assembly carries a float arm for the gas gauge reading.
- Delphi pump designed to operate in extreme temperatures with quick engine starts
- Metal tubes routed so they never touch the tank, which removes noise and vibration while the vehicle runs
- Empty float height and float retention set for a correct gas gauge reading
- Low amperage draw puts less load on the vehicle's electrical system
- Validated and tested before it is matched to its application
Quick facts
- Part: Delphi HP10183 fuel pump and sender assembly
- Fits: 1991-1996 Ford Escort 4-cylinder 1.8L or 1.9L and other vehicles
- Condition: New
Hard starting or stalling can mean this assembly is worn, though a clogged fuel filter or a failed fuel pump relay can be behind them too, so rule those out first.
Fits
It fits the 1991-1996 Ford Escort 4-cylinder 1.8L or 1.9L and the 1991-1996 Mercury Tracer 4-cylinder 1.8L or 1.9L.
Specifications
- Quantity per vehicle: 1
- Engines: 4-cylinder 1.8L or 1.9L
- Condition: New
In the box

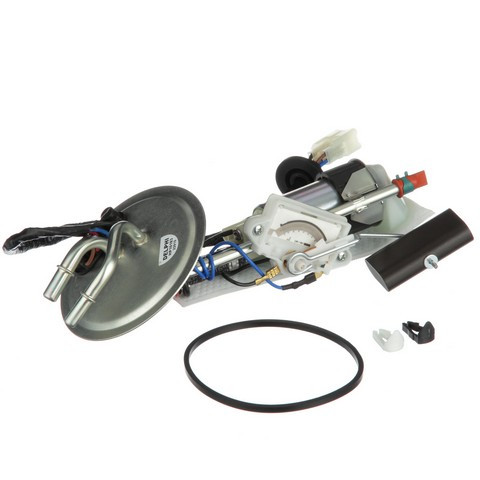

One fuel pump and sender assembly with float arm, one seal, two retainer clips and one instruction sheet. This listing holds one assembly, and one is all a car needs.
Installation notes
- Check and clean the fuel tank before installing the assembly.
- The instruction sheet in the box covers the steps.
Interchange: 950-0138 · 951-0016 · F5CZ 9350-B · F5CZ 9350-BA · PFB-35
4011039 · E2042 · E2105S · E2151H · DHP10183 · 67078 · 69125 · P74111 · P74602S · P74724H · P88001 · AFS0016P · AFS0063S · RE0016P · RE0063S · C0027H · A27044 · E16422 · SP1161 · SP1172 · SP2105H · USEP2105S · USEP2151H
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
4011039, E2042, E2105S, E2151H, DHP10183, 67078, 69125, P74111, P74602S, P74724H, P88001, 950-0138, 951-0016, AFS0016P, AFS0063S, RE0016P, RE0063S, F5CZ 9350-B, F5CZ 9350-BA, PFB-35, C0027H, A27044, E16422, SP1161, SP1172, SP2105H, USEP2105S, USEP2151H
Frequently Asked Questions
Is HP10183 a Ford Escort fuel pump that fits the 1991-1996 Escort with the 4-cylinder 1.8L or 1.9L?
Yes. Delphi HP10183 fits the 1991-1996 Ford Escort 4-cylinder 1.8L or 1.9L, and it also fits the 1991-1996 Mercury Tracer 4-cylinder 1.8L or 1.9L.
Does this Delphi fuel pump assembly include the float arm and seal?
Yes. The Delphi HP10183 box holds the assembly with its float arm, a seal, two retainer clips and an instruction sheet.
Will the float on the HP10183 give a correct gas gauge reading?
Empty float height and float retention match OE specifications, so the gas gauge is meant to read correctly with this fuel pump and sender assembly.
Do I need to clean the fuel tank before fitting this Delphi fuel pump replacement?
Yes, check and clean the fuel tank first; the instruction sheet in the box covers the installation steps.
Does Delphi HP10183 replace part number F5CZ 9350-B?
Yes. F5CZ 9350-B is on this assembly's interchange list, along with 950-0138 and 951-0016.
