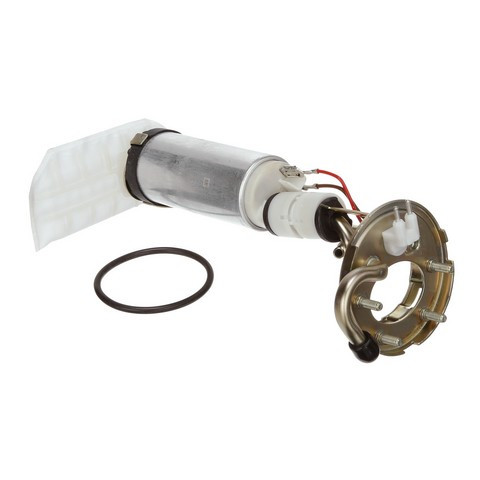

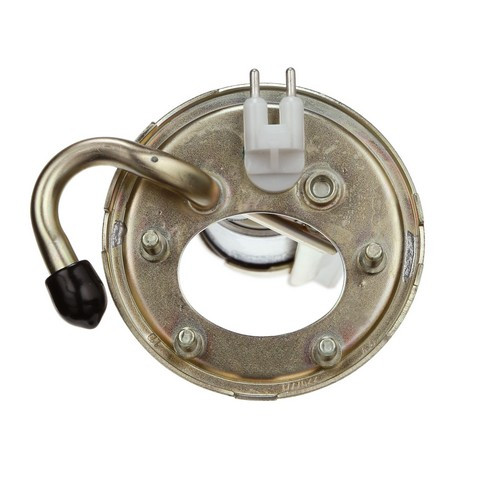

Delphi HP10241 fuel pump hanger for the 1988-1993 BMW 325i 6-cylinder 2.5L and other vehicles carries the electric fuel pump inside the tank and delivers gasoline toward the engine.
- Pump designed to operate under extreme temperatures with quick engine starts
- Metal tubes routed so they never touch the tank, which eliminates noise and vibration during driving
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- External strainer and a seal come with the hanger
Quick facts
- Part: Delphi HP10241 fuel pump hanger
- Also called: fuel pump hanger assembly
- Fits: 1988-1993 BMW 325i 6-cylinder 2.5L and other vehicles
- Condition: New
Hard starting, stalling or a whine from the tank can mean the pump in this fuel pump hanger assembly is worn, though a clogged fuel filter or a faulty fuel pump relay can sit behind the same signs, so pin down the cause before you buy.
Fits
It is listed for a wide range of BMW models, led by the 1988-1993 BMW 325i 6-cylinder 2.5L, the 1991-1992 BMW 318i 4-cylinder 1.8L and the 1988-1991 BMW 325iX 6-cylinder 2.5L. A 1988-1993 BMW 325i 6-cylinder 2.5L takes one hanger, and this listing is one. If your BMW is not named here, open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting: in tank
- Inlet: 1, with external strainer
- Outlet: 1, hose type

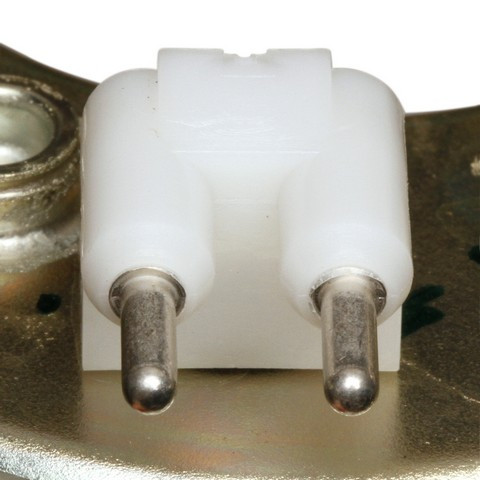

- Terminals: 2, male pin
- Connector: round, male
Build and materials
- Pump: electric, for gasoline
- Fuel pump: included
- Strainer: included, external
- Seal: included
- Condition: new
- Country of origin: Thailand
In the box
One fuel pump hanger with its fuel pump, strainer and seal. The float arm, mounting hardware and lock ring are not included, so plan on a new lock ring and hardware, as the old ones may not be reusable.
Installation notes
- Check and clean the fuel tank before installing to avoid unnecessary returns.
Interchange: 16 14 1 184 022
E7334 · E8138H · CHP10241 · 69695 · P72018 · P72106 · P76518M · P77300H · AFS1048F · A30159 · E16285 · B0525M · A30160 · E16132 · SP8138H · USEP8138H · 228220007001Z
This part cross-references / interchanges with the following part numbers:
E7334, E8138H, CHP10241, 16 14 1 184 022, 69695, P72018, P72106, P76518M, P77300H, AFS1048F, A30159, E16285, B0525M, A30160, E16132, SP8138H, USEP8138H, 228220007001Z
Frequently Asked Questions
Does the Delphi HP10241 fit the 1991-1992 BMW 318i 4-cylinder 1.8L?
Yes. Delphi HP10241 is listed for the 1991-1992 BMW 318i 4-cylinder 1.8L, and that car takes one hanger.
Does the Delphi HP10241 hanger come with a fuel pump and seal?
Yes. Delphi HP10241 includes the electric fuel pump, strainer and seal. The float arm, mounting hardware and lock ring are not included.
Is the strainer on this fuel pump hanger internal or external?
The strainer is external and is included with the hanger. The hanger has one inlet, one hose outlet and two male pin terminals.
What can a worn in-tank fuel pump sound or feel like?
A whine from the tank, hard starting or stalling can be signs of a worn pump. Fuel pressure testing is best left to a shop.
Should I clean the tank before fitting the HP10241 hanger?
Yes. Checking and cleaning the fuel tank before installing the hanger avoids unnecessary returns.
