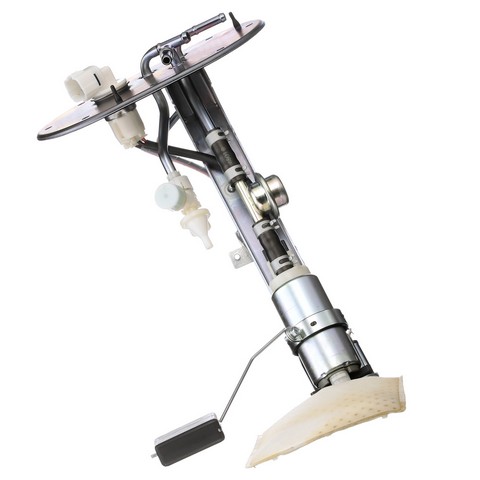

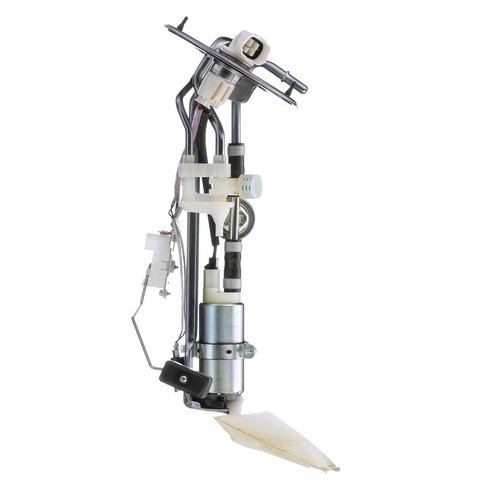

Delphi HP10249 fuel pump hanger for the 2004 Subaru Forester H4 2.5L and other vehicles mounts in the fuel tank and carries the float arm for the gas gauge. Also called a fuel pump hanger assembly, it is validated and tested for its vehicle application.
- Designed for operation in extreme temperatures with quick engine starts
- Metal tubes routed so they never touch the tank, which eliminates noise and vibration during operation
- Empty float height and float retention set for a correct gas gauge reading
- Fast pressure performance and system integrity with less energy use
- Lower amperage draw puts less load on the vehicle's electrical system
Quick facts
- Part: Delphi HP10249 fuel pump hanger
- Also called: fuel pump hanger assembly
- Fits: 2004 Subaru Forester H4 2.5L and other vehicles
- Condition: New
A worn hanger can show up as a gas gauge that reads wrong, noise from the tank or hard starting, though a worn fuel pump or a clogged fuel filter can be behind the same signs, so find the cause first.
Fits
This hanger fits the 2004 Subaru Forester H4 2.5L and the 2002-2004 Subaru Impreza H4 2.0L, and each of them takes one.
Specifications
- Quantity per vehicle: 1
- Float arm: included
- Seal: included
- Condition: New
In the box
One fuel pump hanger with float arm, one seal and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the hanger.
- The instruction sheet in the box covers the steps.
Interchange: 401-1519 · 951-0007
42021 FE010 · E8450 · E8517S · DHP10249 · 69707 · P76559M · P76559S · A30339 · SP4042H · USEP8517S
This part cross-references / interchanges with the following part numbers:
401-1519, E8450, E8517S, DHP10249, 69707, P76559M, P76559S, 951-0007, A30339, SP4042H, 42021 FE010, USEP8517S
Frequently Asked Questions
Does the Delphi HP10249 fit the 2002-2004 Subaru Impreza H4 2.0L?
Yes. Delphi HP10249 fuel pump hanger fits the 2002-2004 Subaru Impreza H4 2.0L, and it also fits the 2004 Subaru Forester H4 2.5L.
Does this fuel pump hanger come with a float arm and a seal?
Yes. The package holds the fuel pump hanger with its float arm, a seal and an instruction sheet.
Why are the metal tubes on this hanger routed away from the tank?
The metal tubes are routed so they never touch the tank at any point, which eliminates noise and vibration during vehicle operation.
Can a worn fuel pump hanger make my gas gauge read wrong?
Yes, it can. A float arm that no longer holds its position can throw the reading off, and the Delphi HP10249 float height and retention match OE specifications.
What should I do to the fuel tank before installing the Delphi HP10249 fuel pump hanger?
Check and clean the fuel tank before installing the hanger. An instruction sheet comes with the part for the steps.
