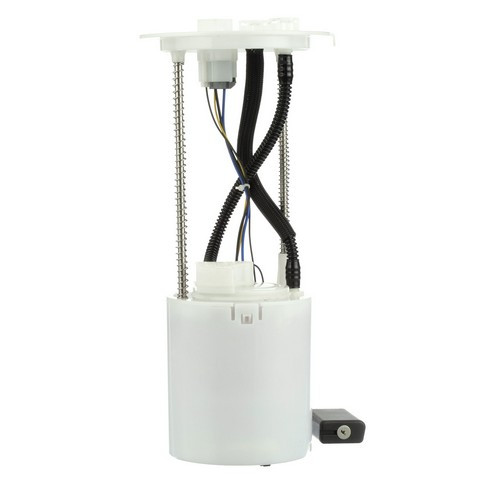

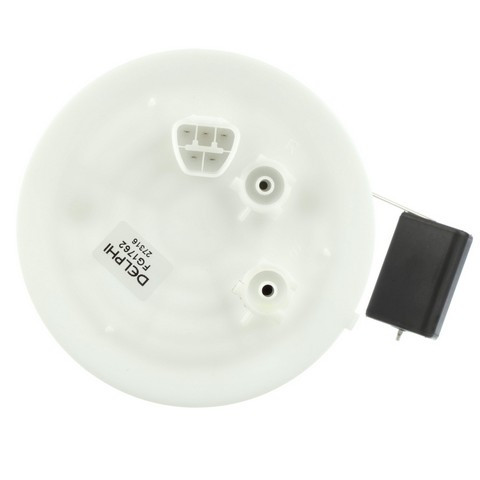

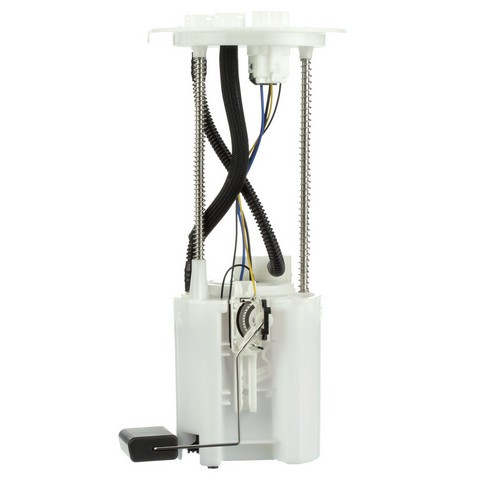

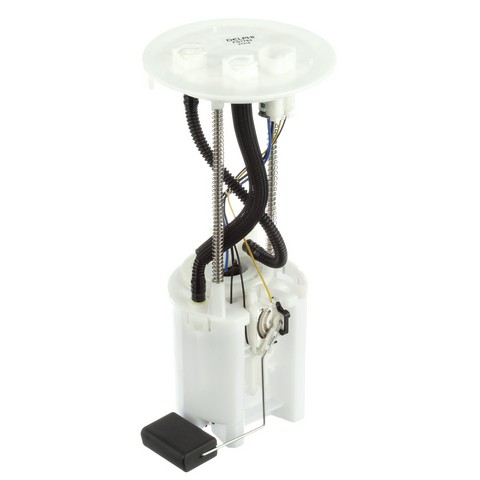

Delphi FG1762 fuel pump module for the 2005 Toyota 4Runner V8 4.7L and the 2005-2009 4Runner V6 4.0L delivers fuel from the tank to the engine. The Delphi fuel pump module assembly, also called a fuel pump assembly, is built to Delphi's OE standards.
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage draw puts less load on the electrical system
- Validated and tested, with the part matched to its application
- Design and durability reduce failure rates
Quick facts
- Part: Delphi FG1762 fuel pump module
- Also called: fuel pump assembly
- Fits: 2005 Toyota 4Runner V8 4.7L and the 2005-2009 4Runner V6 4.0L
- Condition: New
Hard starting, stalling or a fuel gauge that reads wrong can mean the module is worn. Before you replace it, rule out a fuse, relay, wiring or a restricted fuel line, since those can look much the same from the driver's seat.
Fits
It fits the 2005 Toyota 4Runner V8 4.7L and the 2005-2009 4Runner V6 4.0L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engines: V8-4.7L (2005), V6-4.0L (2005-2009)
Build and materials

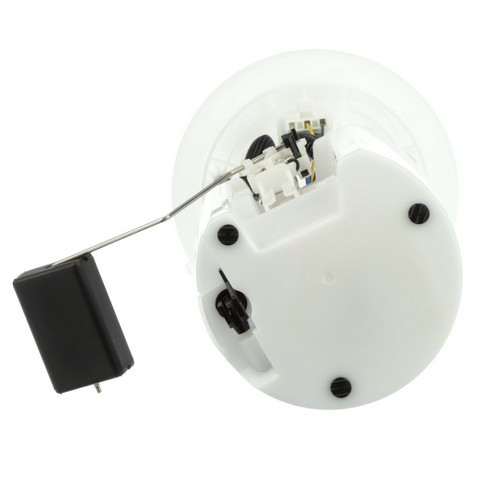

- Type: fuel pump module assembly with float arm
- Condition: New
In the box

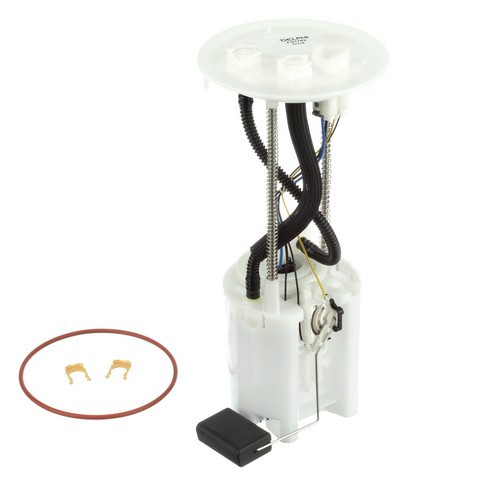

One fuel pump module with float arm, seal, clips and an instruction sheet. This listing holds one module, and each vehicle takes one.
Installation notes
- Check and clean the fuel tank before installing.
- An instruction sheet comes with the part for the steps.
Interchange: 950-0226 · 951-0024 · 77020-35110 · 77020-35111 · 77020-35112
4010540 · E8501 · E9074M · DFG1762 · 69748 · P76514 · P77306M · E16334 · SP9016M · USEP9074M
This part cross-references / interchanges with the following part numbers:
4010540, E8501, E9074M, DFG1762, 69748, P76514, P77306M, 950-0226, 951-0024, E16334, SP9016M, 77020-35110, 77020-35111, 77020-35112, USEP9074M
Frequently Asked Questions
Does the Delphi fuel pump module fit the 2005-2009 Toyota 4Runner V6 4.0L?
Yes. Delphi FG1762 fits the 2005-2009 Toyota 4Runner V6 4.0L and the 2005 4Runner V8 4.7L, and each takes one.
What comes with the Delphi fuel module?
Delphi FG1762 comes as one module assembly with the float arm, a seal, clips and an instruction sheet.
How does the Delphi module keep the fuel gauge reading correct?
This module's empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
Can hard starting or a wrong fuel gauge reading point to a failing fuel pump module?
They can, along with stalling. If the module is the cause, Delphi FG1762 replaces it, and a shop can test the fuel system.
Does the fuel tank need any attention before installing the Delphi FG1762?
Yes. Check and clean the fuel tank first, and use the instruction sheet that comes with the module for the steps.
