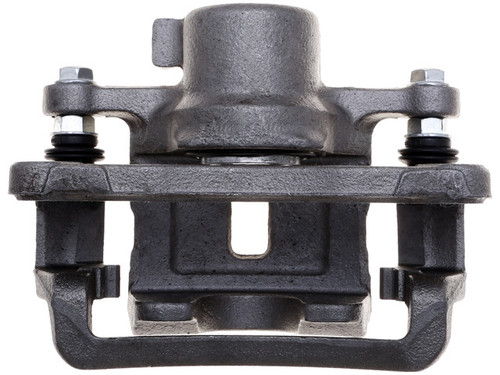

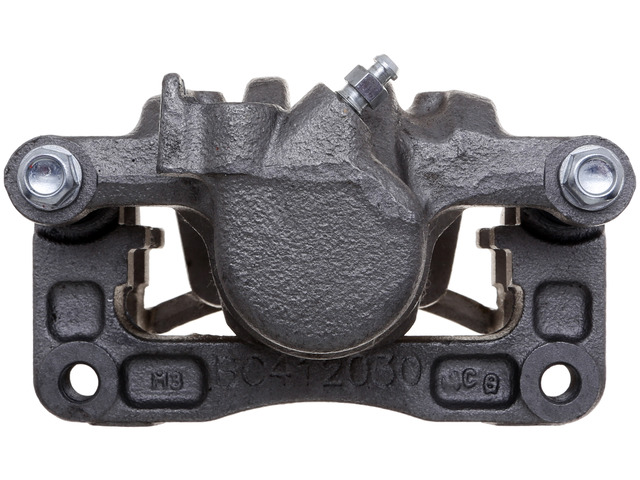

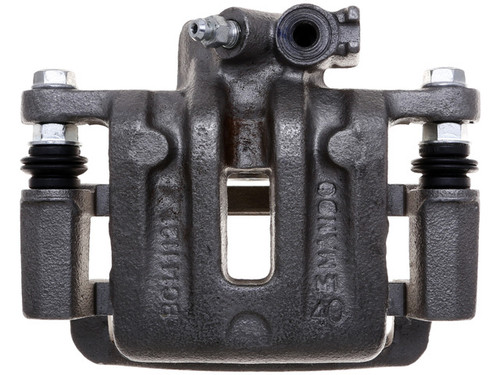

Replace a leaking or sticking rear right brake caliper with the Raybestos R-Line Remanufactured Semi-Loaded Caliper and Bracket Assembly, part number FRC11922. It is a remanufactured OE unit, rebuilt with all-new rubber and sealing components and 100% pressure tested. It fits many vehicles, among them the 2007-2017 Chevrolet Equinox, 2010-2017 GMC Terrain and 2012-2015 Chevrolet Captiva Sport with all engines. See the "Vehicles it fits" section for the full list.
This floating disc brake caliper uses hydraulic pressure from the brake system to push its piston and clamp the pads against the rotor, while the caliper body slides on its guide pins. It is an R-Line non-plated caliper supplied with its mounting bracket.
- New sealing components: Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new materials, intended for leak-free operation.
- Inspected before reuse: Castings, guide pins and brackets are carefully inspected before they go back into service.
- OE-matched materials: Materials match OE specifications and meet vehicle-specific designs.
- EPDM70 rubber components: Selected for heat resistance, performance and durability.
Specifications: cast iron caliper casting; 40.4 mm (1.591 in) piston diameter; M10x1 bleeder screw thread; 12 mm bracket mounting hole size with a 1.75 mm thread pitch. It is sold individually as the rear right unit, one per application. Replacing both rear calipers together is recommended for balanced braking. Country of origin: Mexico.
Interchange: 99-01420B · 18-B5041 · 18-P5041 · 141.66533 · 10-4403S · 14-4403
9901420B · 18B5041 · 18P5041 · 14166533 · 104403S · 144403 · SC1048
This part cross-references / interchanges with the following part numbers:
99-01420B, 18-B5041, 18-P5041, 141.66533, SC1048, 10-4403S, 14-4403
Frequently Asked Questions
Will this work as a 2007-2017 Chevy Equinox brake caliper for the rear right wheel?
Yes. FRC11922 is listed for the rear right position on the 2007-2017 Chevrolet Equinox with all engines. Check the "Vehicles it fits" section for the other listed vehicles.
Does it also fit the 2010-2017 GMC Terrain or 2012-2015 Chevrolet Captiva Sport?
It is listed for the rear right position on the 2010-2017 GMC Terrain and the 2012-2015 Chevrolet Captiva Sport, all engines.
What is replaced with new parts during remanufacturing?
Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new materials. Castings, guide pins and brackets are inspected before they are reused.
What are the key specifications of FRC11922?
It is a floating caliper with a cast iron casting, a 40.4 mm (1.591 in) piston, an M10x1 bleeder screw thread, and 12 mm bracket mounting holes with a 1.75 mm thread pitch.
What are signs a brake caliper may need replacing?
Common signs include brake fluid leaking at the wheel, a pull to one side, a dragging or hot wheel, and uneven pad wear. Diagnose the cause first, because other brake parts can cause similar symptoms.
