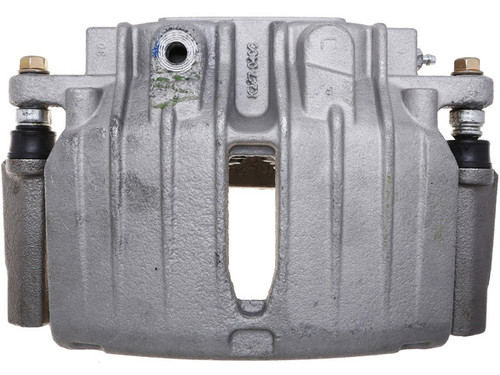

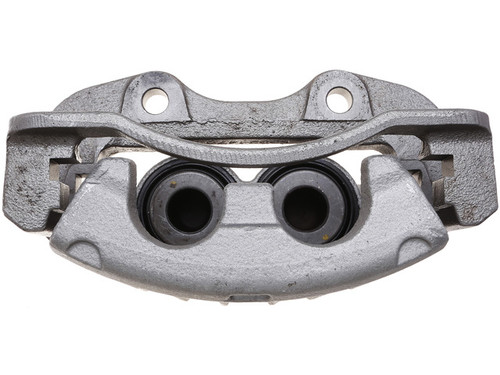

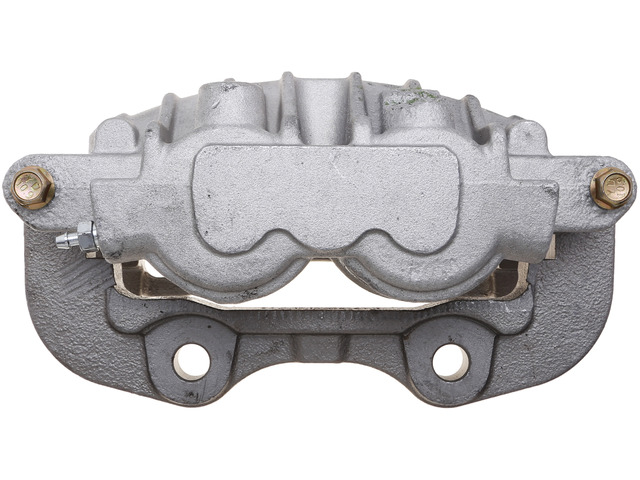

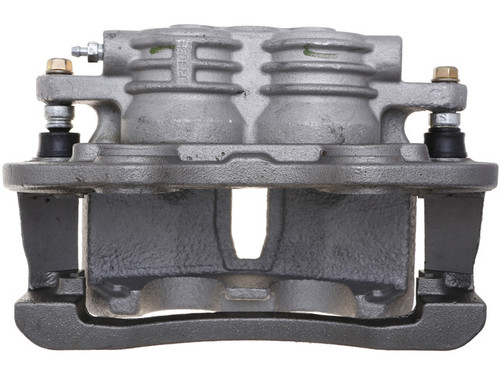

Raybestos Brakes FRC11169 rear left brake caliper for the 2003-2006 Chevrolet Silverado 1500 and other vehicles clamps the pads against the rotor to slow the wheel. This remanufactured disc brake caliper comes as a semi-loaded caliper and bracket assembly.
- Raybestos R-Line non-plated caliper rebuilt with all new rubber and sealing components
- Castings, guide pins and brackets are inspected before they are reused

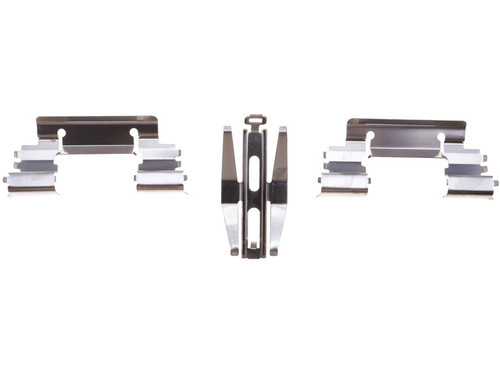

- New seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings for leak-free operation
- Silicone boots for heavy duty applications, where applicable
- EPDM70 rubber components for heat resistance and durability
- 100% pressure tested
Quick facts
- Part: Raybestos Brakes FRC11169 brake caliper
- Also called: disc brake caliper
- Fits: 2003-2006 Chevrolet Silverado 1500 and other vehicles
- Position: Rear left
- Material: Aluminum (caliper casting)
- Condition: Remanufactured
Pulling to one side when braking, uneven pad wear or fluid around the wheel can mean this caliper is worn, though a damaged brake hose or a seized slide pin can be behind them too, so find the cause first. Rear calipers are normally replaced as a pair: this listing is one, for the rear left, and the rear right is ordered separately. The 2003-2006 Chevrolet Silverado 1500 takes one at the rear left.
Fits
It is a direct-fit replacement, a Chevrolet Silverado 1500 brake caliper for 2003-2006, and is listed for a wide range of Chevrolet, GMC and Cadillac models, including the 2002-2006 GMC Sierra 1500. If your vehicle is not named here, look it up by year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Rear left
- Quantity per application: 1
- Piston diameter: 45.009 mm (1.772 in)
- Piston quantity: 2
- Bleeder screw thread: M10X1.00
- Bracket mounting hole size: M14
Build and materials
- Type: Floating, semi-loaded
- Condition: Remanufactured
- Casting material: Aluminum
- Surface finish: Coated
- Bracket surface finish: Coated
- Country of origin: Mexico
In the box
One semi-loaded brake caliper with its mounting bracket.
Interchange: 18-B4764 · 15-14258 · 18-P4764 · 141.66506 · 99-17306A · 10-4258S
SC1121
This part cross-references / interchanges with the following part numbers:
18-B4764, 15-14258, 18-P4764, 141.66506, SC1121, 99-17306A, 10-4258S
Frequently Asked Questions
Is this Tahoe brake caliper right for the 2000-2006 Chevrolet Tahoe?
Yes. Raybestos Brakes FRC11169 is listed for the 2000-2006 Chevrolet Tahoe, and this one is the rear left position.
Is this a 2002-2006 GMC Sierra 1500 brake caliper for the rear left?
Yes. This rear left caliper is listed for the 2002-2006 GMC Sierra 1500. The rear right side is a separate part.
Does this remanufactured caliper come with its mounting bracket?
Yes. It is a semi-loaded assembly, so the mounting bracket comes with the caliper.
What size are the pistons on Raybestos Brakes FRC11169?
Raybestos Brakes FRC11169 is a floating caliper with two pistons of 45.009 mm (1.772 in) diameter and an M10X1.00 bleeder screw thread.
Which parts are renewed when this caliper is remanufactured?
Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new materials. Each unit is 100% pressure tested.
