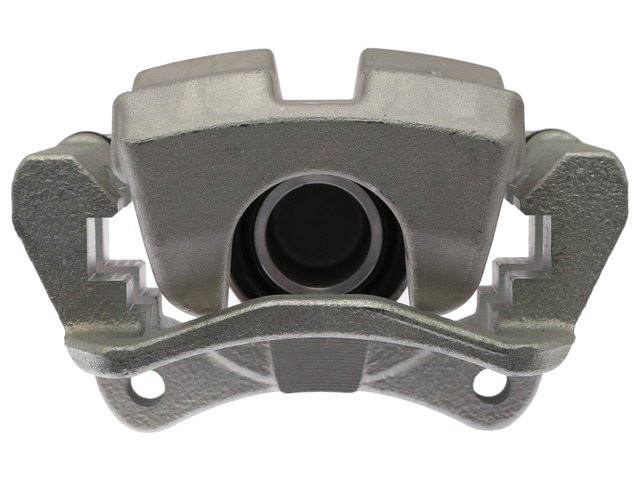

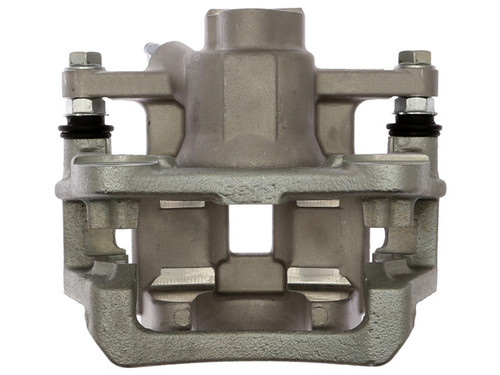

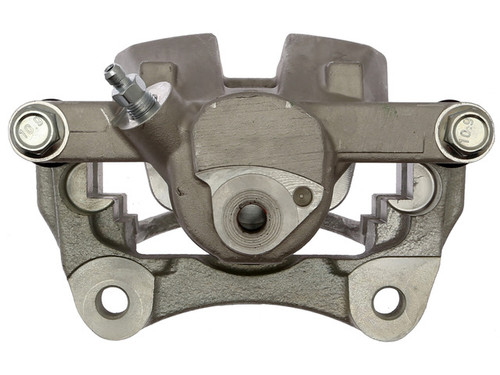

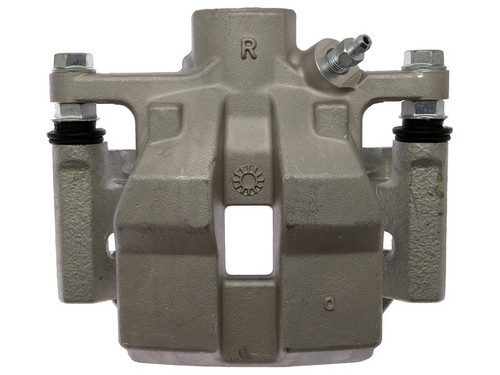

Clamp the rear pads against the rotor and bring your rear brakes back to spec with the Raybestos Brakes Disc Brake Caliper and Bracket Assembly FRC12481N — a rear right, floating disc brake caliper that installs as a direct-fit replacement for the 2010-2015 Lexus RX350, 2010-2015 Lexus RX450H (all engines), the 2014-2019 Toyota Highlander (all engines), and the 2011-2020 Toyota Sienna (all engines). From Raybestos' Element3 line, it's engineered to meet OE performance.
- Floating single-piston design: A single 1.589 in (40.361 mm) piston pushes the pads while the caliper slides on its mounting to clamp both sides of the rotor.
- Caliper and bracket assembly: The mounting bracket is included, and the caliper is supplied friction-ready — brake pads/friction material are not included.
- Aluminum casting with coated bracket: The aluminum caliper casting helps resist corrosion, and the mounting bracket carries a coated surface finish.
- Hardware specs: M12 bracket mounting holes (1.25 mm thread pitch) and an M10x1.00 bleeder screw.
As the hydraulic clamp of the rear disc brake, this caliper squeezes the pads against the rotor when you apply the brakes. If a sticking piston, seized slide, or fluid leak on the original rear right caliper is behind brake drag, uneven pad wear, or a pull to one side, this assembly replaces it — have the cause diagnosed first. For balanced braking, many technicians replace both calipers on the same axle as a pair. Country of origin: China.
Interchange: 99-01719A · 9901719A · 99-01719B · 9901719B · 99-01738A · 9901738A · 19-B6280 · 19B6280 · 19-B7080 · 19B7080 · 141.44641 · 141.44663 · 142.44641 · SC5604 · SC5604-1 · SC56041 · 478300E020 · 4783048101 · 478300E070. Manufacturer part number FRC12481N.
This part cross-references / interchanges with the following part numbers:
99-01719A, 99-01719B, 99-01738A, 19-B6280, 19-B7080, 141.44641, 141.44663, 142.44641, SC5604, SC5604-1, 478300E020, 4783048101, 478300E070
